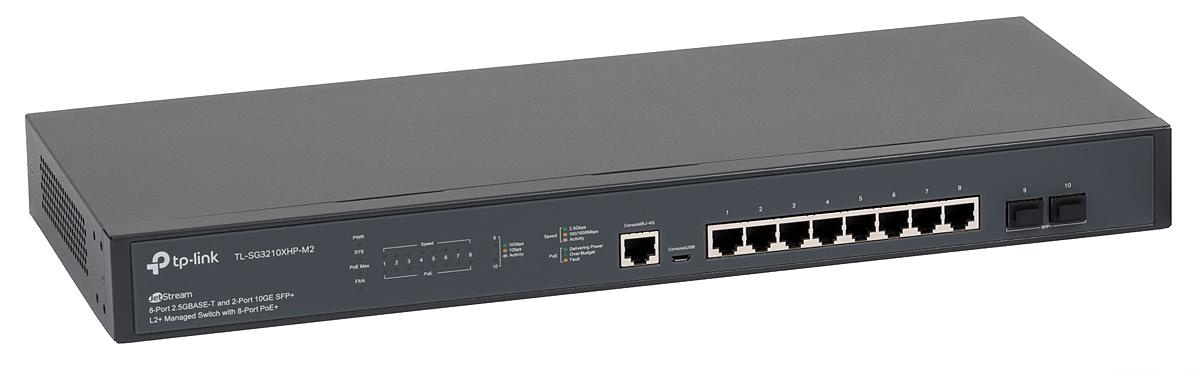

"JetStream™ 8-Port 2.5GBase-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+ PORT: 8× 2.5G PoE+ Ports, 2× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 802.3at/af, 240 W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: Integration
4.122,00 RON
(TVA inclus)
Livrare 1-3 zile lucratoare /
Cost livrare - 25 lei
Cum te putem ajuta?
Descriere
"JetStream™ 8-Port 2.5GBase-T and 2-Port 10GE SFP+ L2+ Managed Switch with 8-Port PoE+ PORT: 8× 2.5G PoE+ Ports, 2× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 802.3at/af, 240 W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with JetStream™ SDN Controller,Static Routing, OAM, DDM, sFlow, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6"
Detalii
SKU
TL-SG3210XHP-M2
Categorii
Brand
Product colour
Black
Operating relative humidity (H-H)
10 - 90%
Cables included
AC
Password protection
Yes
Storage relative humidity (H-H)
5 - 90%
LED indicators
Yes
Quick start guide
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Package type
Box
Height
44 mm
Package height
80 mm
Number of fans
2 fan(s)
Operating temperature (T-T)
0 - 45 C
Storage temperature (T-T)
-40 - 70 C
Web-based management
Yes
Package depth
250 mm
Multicast support
Yes
Rack mounting
Yes
Width
440 mm
Rackable
No
System event log
Yes
Jumbo frames support
Yes
VLAN support
Yes
Rate limiting
Yes
Spanning tree protocol
Yes
Port mirroring
Yes
Power over Ethernet (PoE)
Yes
Link aggregation
Yes
Power supply included
Yes
Power over Ethernet (PoE) power per port
30 W
IGMP snooping
Yes
Loop protection
Yes
Stackable
No
Flow control support
Yes
Switch type
Managed
Broadcast storm control
Yes
Static route
Yes
Jumbo frames
9000
Quality of Service (QoS) support
Yes
Cloud-managed
Yes
Configuring Location Settings (CLI)
Yes
ARP inspection
Yes
IP routing
Yes
Number of VLANs
4000
Power source
AC
Access Control List (ACL)
Yes
SSH/SSL support
Yes
Layer
Layer-2
Redundant-PSU
Yes
Harmonized System (HS) code
85176990
Installed SFP+ modules quantity
0
Installed SFP modules quantity
0
LAN-Ports
8
Basic switching RJ-45 Ethernet ports quantity
8
Static port security
Yes
MAC address table
16000 entries
Total Power over Ethernet (PoE) budget
240 W
SFP module slots quantity
2
SFP+ module slots quantity
2
MAC address filtering
Yes
Traffic classification
Yes
GARP VLAN Registration Protocol (GVRP)
Yes
BPDU filtering/protection
Yes
IP-MAC-Port binding
Yes
Power connector
AC-in jack
10G support
Yes
Depth
180 mm
Power over Ethernet plus (PoE+) ports quantity
8
Packet buffer memory
12 MB
Ethernet LAN data rates
100,1000,2500 Mbit/s
2.5G Ethernet (copper) ports quantity
8
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)
Switching capacity
80 Gbit/s
Head-of-line (HOL) blocking
Yes
Authentication
MAC-based authentication, Port-based authentication
Certification
CE, FCC, RoHS
Forwarding rate
59.52 Mpps
Number of static routes
48
Number of IP interfaces
16
Networking standards
IEEE 802.1D, IEEE 802.1s, IEEE 802.1w
MIB support
RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
Multicast Listener Discovery (MLD) snooping
Y
Virtual LAN features
MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Package weight
2.84 kg
Package width
528 mm
Console port
RJ-45/micro-USB
Management protocols
SNMPv1/v2c/v3, SNTP
DHCP features
DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Security algorithms
HTTPS, SSH, SSH-2, SSL/TLS
Authentication type
AAA, TACACS+
Queue scheduling algorithms
SP, WRR+SP, Weighted Round Robin (WRR)
LAN port type
Gigabit
Switch layer
L2
Heat dissipation
996.35 BTU/h
Power consumption (max)
292 W
Form factor
1U
