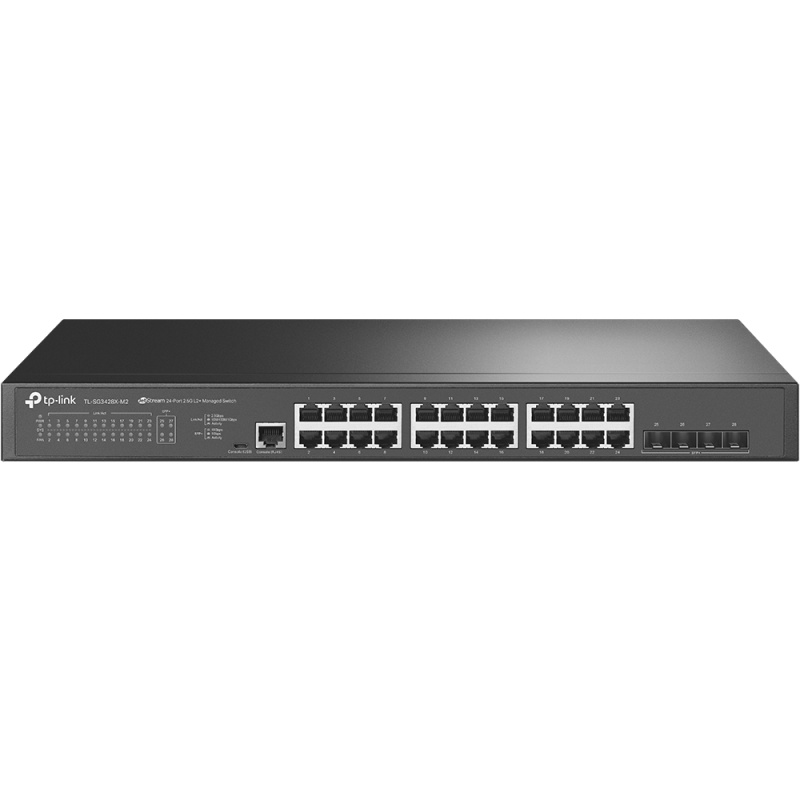

"JetStream™ 24-Port 2.5GBASE-T L2+ Managed Switch with 4 10GE SFP+ Slots PORT: 24× 2.5G RJ45 Ports, 4× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with JetStream™ SDN Controller, Static
2.935,00 RON
(TVA inclus)
Livrare 1-3 zile lucratoare /
Cost livrare - 25 lei
Cum te putem ajuta?
Descriere
"JetStream™ 24-Port 2.5GBASE-T L2+ Managed Switch with 4 10GE SFP+ Slots PORT: 24× 2.5G RJ45 Ports, 4× 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with JetStream™ SDN Controller, Static Routing, OAM, DDM, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6"
Detalii
SKU
TL-SG3428X-M2
Categorii
Brand
Product colour
Black
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 40 C
LED indicators
Yes
Quick start guide
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Height
44 mm
Package height
80 mm
Number of fans
1 fan(s)
Package weight
3 kg
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Storage temperature (T-T)
-40 - 70 C
Web-based management
Yes
Package depth
250 mm
Multicast support
Yes
Rack mounting
Yes
Width
440 mm
Rackable
Yes
Cables included
LAN (RJ-45)
System event log
Yes
Jumbo frames support
Yes
VLAN support
Yes
Rate limiting
Yes
Active link detection
Yes
Spanning tree protocol
Yes
Port mirroring
Yes
Link aggregation
Yes
Power supply included
Yes
IGMP snooping
Yes
Loop protection
Yes
Store-and-forward
Yes
Stackable
No
Flow control support
Yes
Switch type
Managed
Broadcast storm control
Yes
Static route
Yes
Jumbo frames
9000
MAC address table
32000 entries
Quality of Service (QoS) support
Yes
Cloud-managed
Yes
Configuring Location Settings (CLI)
Yes
ARP inspection
Yes
Power over Ethernet (PoE)
No
SFP+ module slots quantity
4
Basic switching RJ-45 Ethernet ports quantity
24
SFP module slots quantity
4
Power source
AC
Access Control List (ACL)
Yes
SSH/SSL support
Yes
LAN-Ports
24
Layer
Layer-2
LAN-Port-Type
Gigabit
Redundant-PSU
Yes
Forwarding rate
14.88 Mpps
Installed SFP+ modules quantity
0
Installed SFP modules quantity
0
GARP VLAN Registration Protocol (GVRP)
Yes
BPDU filtering/protection
Yes
IP-MAC-Port binding
Yes
Authentication type
AAA, RADIUS, TACACS+
Power connector
AC-in jack
10G support
Yes
IPv4 routes
48
IPv6 routes
48
2.5G Ethernet (copper) ports quantity
24
Depth
180 mm
Basic switching RJ-45 Ethernet ports type
2.5G Ethernet (100/1000/2500)
Head-of-line (HOL) blocking
Yes
Certification
CE, FCC, RoHS
Number of static routes
48
Multicast Listener Discovery (MLD) snooping
Y
Package width
528 mm
Console port
RJ-45/micro-USB
DHCP features
DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Packet buffer memory
16 MB
Switching capacity
200 Gbit/s
Networking standards
IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
MIB support
Yes
Virtual LAN features
Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Policy-based routing
Yes
Heat dissipation
154.38 BTU/h
Power consumption (max)
45.1 W
IPv4 & IPv6 features
IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert
Management protocols
SNMP v1/v2c/v3, SNTP
IPv4 FIB entries
100
IPv6 FIB entries
100
Authentication
Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication
Switch layer
L2
Form factor
1U
