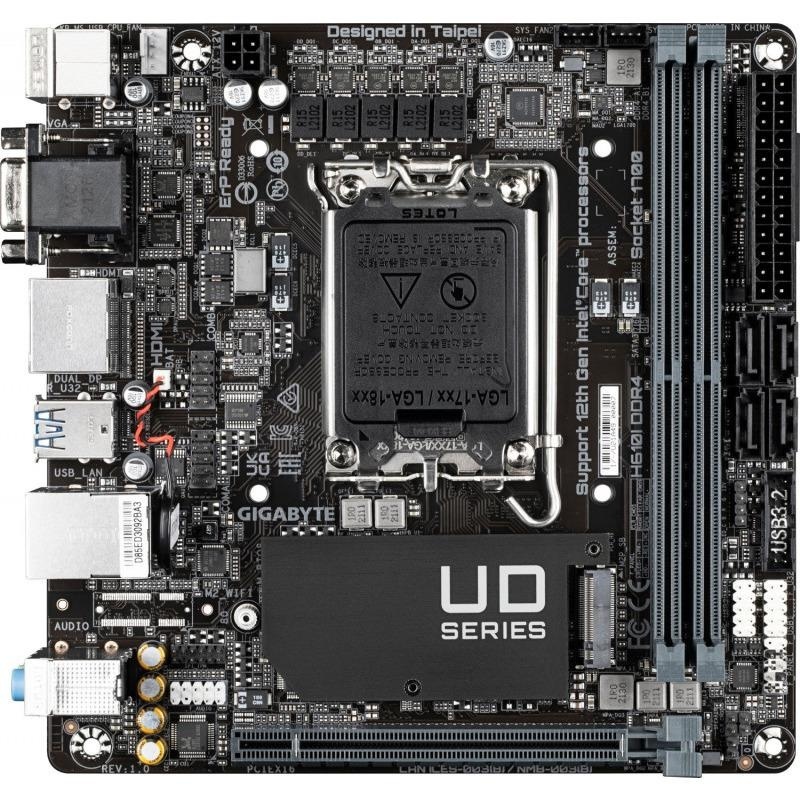

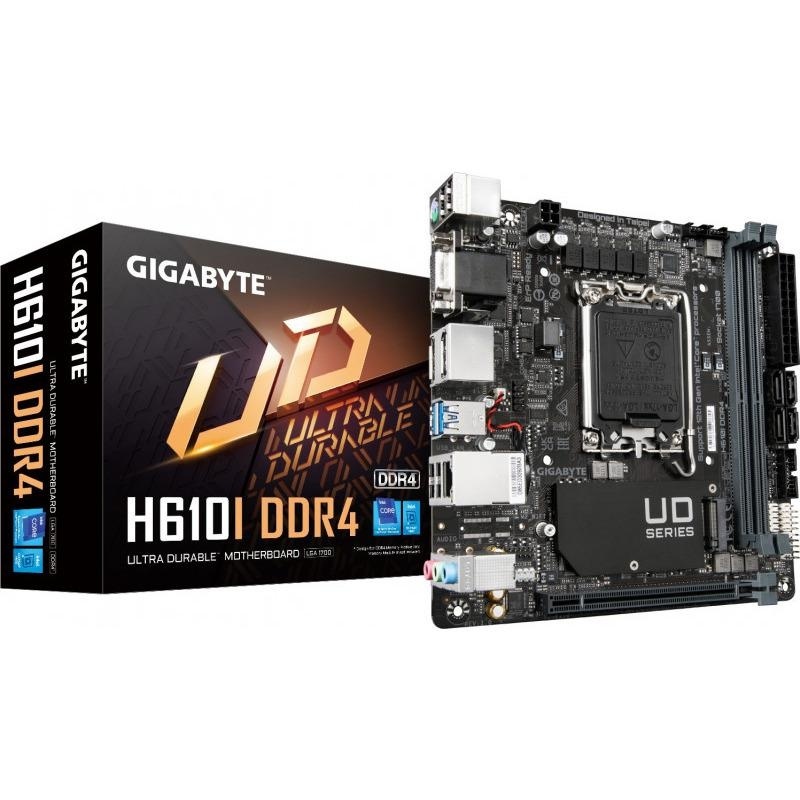

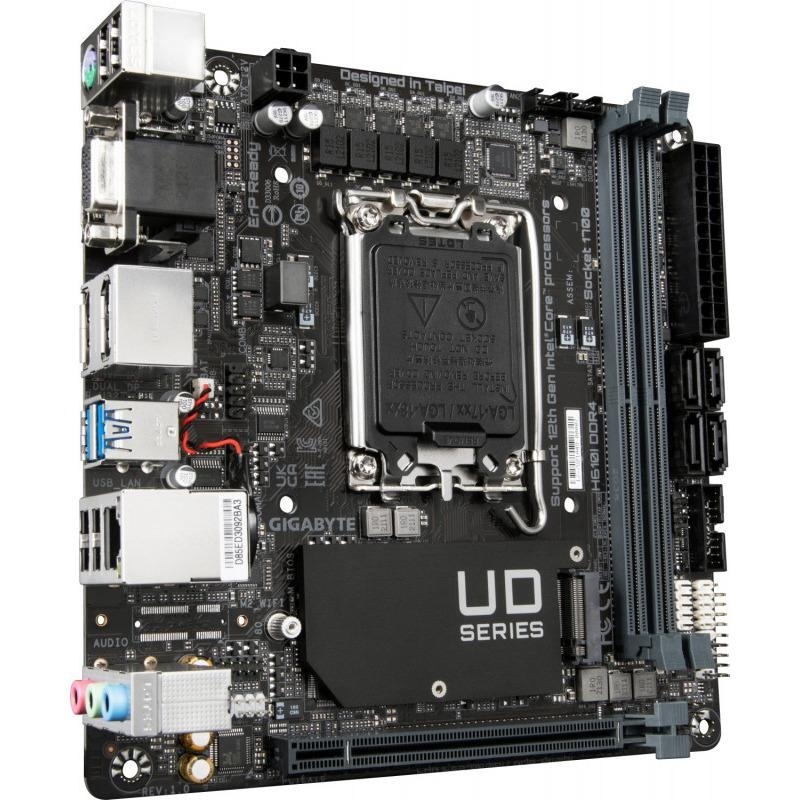

Placa de baza Gigabyte H610I, Socket 1700, DDR4, Mini-ITX
589,00 RON
(TVA inclus)
Livrare 1-3 zile lucratoare
Cost livrare - 25 lei
Cum te putem ajuta?
Descriere
Placa de baza Gigabyte H610I DDR4 LGA 1700 Intel® H610 Motherboard with 4+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2 , Intel® GbE with cFosSpeed, Anti-Sulfur Resistor, Smart Fan 6 Supports 12th Gen Intel® Core™ Series Processors Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs 4+1+1 Hybrid Digital VRM Design Intel® GbE LAN with cFosSpeed Internet Accelerator Software NVMe PCIe 3.0 x4 M.2 High Quality Audio Capacitors and Audio Noise Guard Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP GIGABYTE APP Center, Simple and Easy Use Anti-Sulfur Resistors Design https://www.gigabyte.com/Motherboard/H610I-DDR4-rev-10#kf
Detalii
SKU
H610I DDR4
Categorii
Brand
Harmonized System (HS) code
84733020
Processor manufacturer
Intel
Maximum internal memory
64 GB
Ethernet LAN
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
Memory channels
Dual-channel
Component for
PC
Microphone in
Yes
HDMI version
2.0
DisplayPorts quantity
2
HDCP
Yes
Warranty period
3 year(s)
Products per shipping (inner) case
1 pc(s)
Wi-Fi
No
VGA (D-Sub) ports quantity
1
DisplayPort version
1.2
Country of origin
China
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Package depth
180 mm
USB 2.0 ports quantity
4
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
Product colour
Brown
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
DirectX version
12.0
Front panel connector
Yes
TPM connector
Yes
RGB LED pin header
Yes
12V power connector
Yes
Serial port headers
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Memory slots type
DIMM
Unbuffered memory
Yes
Ethernet interface type
Gigabit Ethernet
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
Batteries included
Yes
DVI-D ports quantity
0
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Supported storage drive interfaces
M.2, SATA III
Height
35 mm
Motherboard chipset family
Intel
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of chassis fan connectors
2
Number of memory slots
2
ECC сompatibility
ECC & Non-ECC
Processor socket
LGA 1700
Supported processor sockets
LGA 1700
Number of M.2 (M) slots
1
PS/2 ports quantity
1
Number of storage drives supported
5
Supported memory types
DDR4-SDRAM
Supported memory clock speed (max)
3200 MHz
Chassis intrusion connector
Yes
Cables included
SATA
Maximum resolution
4096 x 2304 pixels
PC health monitoring
Fan, Temperature, Voltage
Total number of SATA connectors
4
Motherboard form factor
mini ITX
Number of displays supported
3
Width
170 mm
Depth
170 mm
Supported memory clock speeds
2133,2400,2666,2933,3000,3200 MHz
Headphone outputs
3
PCI Express x16 slots
1
Package height
65 mm
Motherboard chipset
Intel H610 Express
Package width
222 mm
USB connector type
USB Type-A
Package weight
711 g
Maximum internal memory supported by processor
64 GB
Onboard-CPU
No
