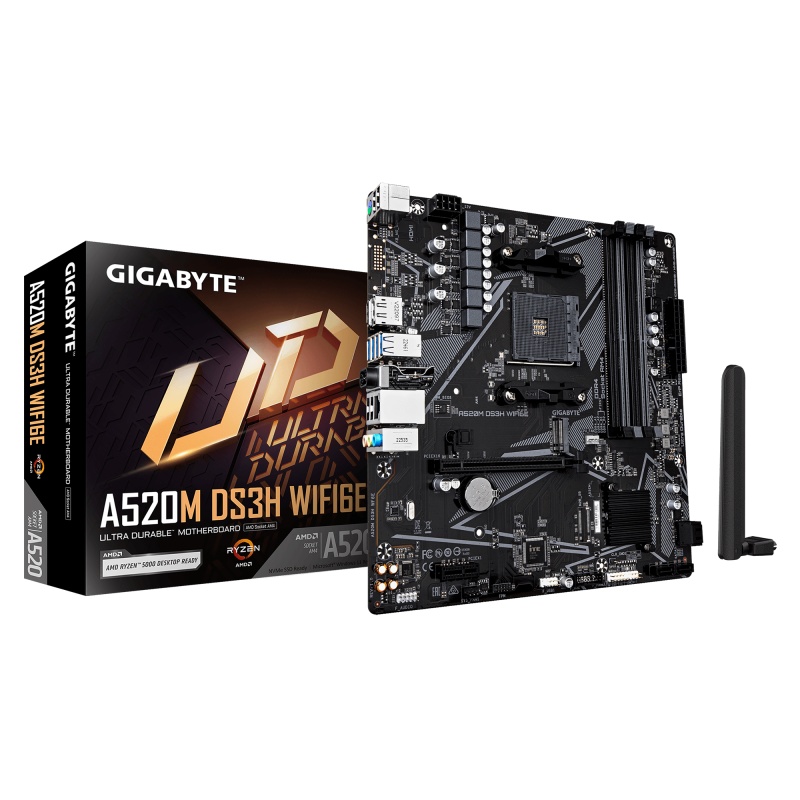

Placa de baza Gigabyte A520M DS3H WIFI6E, Socket AM4, DDR4, Micro-ATX
522,00 RON
(TVA inclus)
Livrare 1-3 zile lucratoare
Cost livrare - 25 lei
Cum te putem ajuta?
Descriere
GIGABYTE A520M DS3H WIFI6E. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series, AMD Ryzen 5000 Series, AMD Ryzen 4000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, M
Detalii
SKU
A520M DS3H WF6E
Categorii
Brand
BLUETOOTH
Yes
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Bluetooth version
5.3
Ethernet LAN
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Memory channels
Dual-channel
Headphone outputs
1
Maximum internal memory
128 GB
Wi-Fi
Yes
Processor manufacturer
AMD
Component for
PC
Microphone in
Yes
DisplayPort version
1.4
HDCP
Yes
HDCP version
2.3
DisplayPorts quantity
1
Warranty period
3 year(s)
Products per shipping (inner) case
1 pc(s)
VGA (D-Sub) ports quantity
0
Country of origin
China
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Line-in
Yes
PCI Express x1 (Gen 3.x) slots
1
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
Power source type
ATX
Motherboard chipset family
AMD
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Audio output channels
7.1 channels
Audio Chip
Realtek ALC897
Parallel processing technology support
Not supported
DirectX version
12.0
Front panel connector
Yes
TPM connector
Yes
12V power connector
Yes
Number of EPS power connectors (8-pin)
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
LAN controller
Realtek RTL8111H
Antenna included
Yes
Batteries included
Yes
Screws included
Yes
DVI-D ports quantity
0
WiFi-AP antenna jack
2
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Supported storage drive interfaces
M.2, SATA III
RAID support
Yes
RAID levels
0, 1, 10
Depth
244 mm
Height
35 mm
BIOS memory size
128 Mbit
Product colour
Dark brown
1st M.2 largest key size
2280
Motherboard form factor
micro ATX
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of CPU fan connectors
1
ECC сompatibility
ECC & Non-ECC
Number of M.2 (M) slots
1
USB 2.0 connectors
1
PS/2 ports quantity
1
Number of storage drives supported
5
Width
244 mm
Supported memory types
DDR4-SDRAM
Maximum internal memory per slot
32 GB
Processor socket
Socket AM4
Supported processor sockets
Socket AM4
Package height
68 mm
PCI Express x16 (Gen 3.x) slots
1
Package width
270 mm
Package depth
268 mm
Maximum resolution
5120 x 2880 pixels
Number of chassis fan connectors
1
Drivers included
Yes
1st M.2 highest PCI Express generation
3.0
Motherboard chipset
AMD A520
Supported memory clock speed (max)
4733 MHz
Bundled software
Norton Internet Security (OEM version)
WLAN controller model
MediaTek MT7902
Weight
880 g
Battery capacity
220 mAh
Ethernet interface type
Gigabit Ethernet, Fast Ethernet
PC health monitoring
Temperature, Voltage, Fan
Supported memory clock speeds
2133,2400,2667,2933,3200,3600,4000,4400,4733,3400,3466,3733,3866,4133,4266,4600 MHz
Package weight
972 g
Compatible processor series
AMD Ryzen 3000 Series, AMD Ryzen 5000 Series, AMD Ryzen 4000 Series
Cooling type
Passive
