NOU

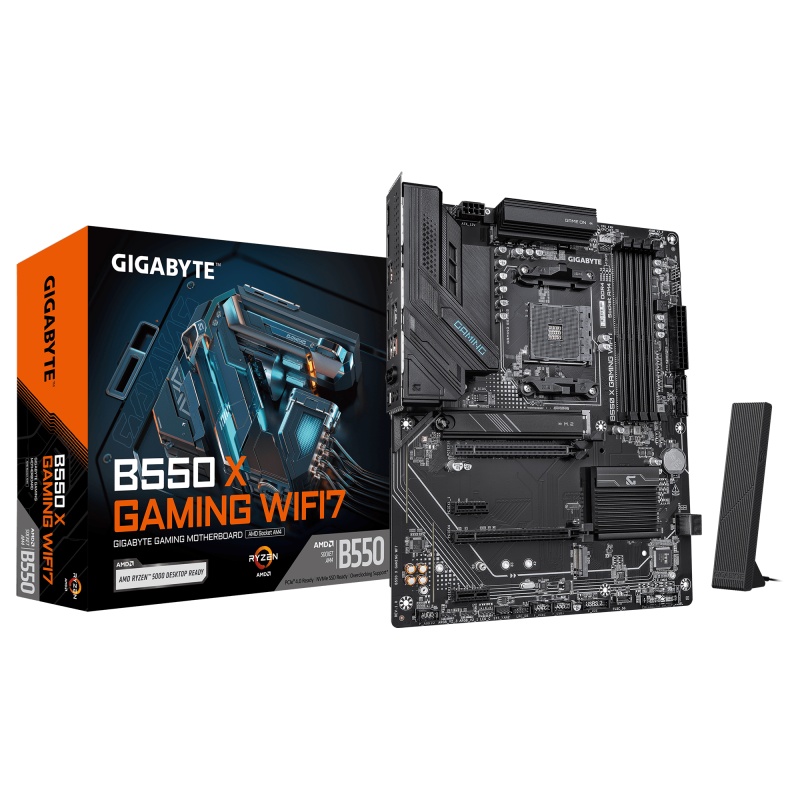

Placa de baza Gigabyte B550 X GAMING WIFI7, Socket AM4, DDR4, ATX
879,00 RON
(TVA inclus)
Livrare 1-3 zile lucratoare /
Cost livrare - 25 lei
Cum te putem ajuta?
Descriere
Placa de baza Gigabyte B550 X GAMING WF7
Detalii
SKU
B550 X GAMING WF7
Categorii
Brand
BLUETOOTH
Yes
Ethernet LAN
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Memory channels
Dual-channel
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Headphone outputs
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
Maximum internal memory
128 GB
Wi-Fi
Yes
Processor manufacturer
AMD
Component for
PC
DisplayPort version
1.4
HDCP
Yes
HDCP version
2.3
DisplayPorts quantity
1
Warranty period
3 year(s)
Products per shipping (inner) case
1 pc(s)
VGA (D-Sub) ports quantity
0
Country of origin
China
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Bluetooth version
5.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
PCI Express x1 (Gen 3.x) slots
2
Line-in
Yes
PCI Express x16 (Gen 4.x) slots
1
USB 2.0 ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
Clear CMOS jumper
Yes
1st M.2 largest key size
25110
2nd M.2 largest key size
22110
Motherboard form factor
ATX
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Motherboard chipset family
AMD
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
DirectX version
12.0
Front panel connector
Yes
Number of CPU fan connectors
2
Number of water pump connectors
2
RGB LED pin header
Yes
Number of RGB LED pin headers
4
12V power connector
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Number of EPS power connectors (8-pin)
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Antenna included
Yes
Batteries included
Yes
Screws included
Yes
Package height
80 mm
DVI-D ports quantity
0
WiFi-AP antenna jack
2
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
RAID support
Yes
RAID levels
0, 1, 10
Width
305 mm
Depth
244 mm
Height
35 mm
BIOS memory size
128 Mbit
Product colour
Dark brown
Number of M.2 (M) slots
2
1st M.2 highest PCI Express generation
4.0
USB 2.0 connectors
2
ECC сompatibility
ECC & Non-ECC
Number of storage drives supported
6
2nd M.2 highest PCI Express generation
3.0
Motherboard chipset
AMD B550
Supported memory types
DDR4-SDRAM
Maximum internal memory per slot
32 GB
Supported memory clock speed (max)
3200 MHz
Supported memory clock speeds
3200,2933,2667,2400,2133 MHz
Processor socket
Socket AM4
Supported processor sockets
Socket AM4
Ethernet interface type
2.5 Gigabit Ethernet
Number of chassis fan connectors
4
WLAN controller model
Realtek RTL8922AE
PCI Express x16 (Gen 3.x) slots
1
LAN controller
Realtek RTL8125
Windows operating systems supported
Windows 11 x64
S/PDIF out port
Yes
Maximum resolution
5120 x 2880 pixels
Digital audio optical out
1
Package width
345 mm
Package depth
294 mm
Bundled software
Norton Internet Security (OEM version)
Battery capacity
220 mAh
Weight
2.01 kg
Compatible processor series
AMD Ryzen 5000 Series, AMD Ryzen 4000 Series, AMD Ryzen 3000 Series
Supported storage drive interfaces
M.2, PCI Express 4.0, PCI Express 3.0, SATA III
BIOS type
AMI
Package weight
2.42 kg
Cooling type
Passive
