NOU

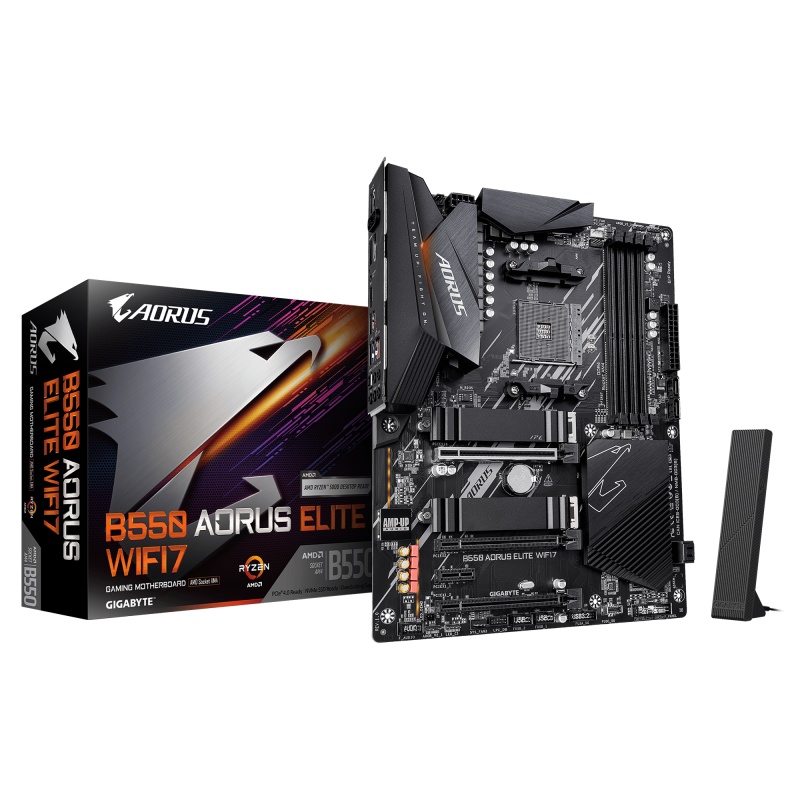

Placa de baza Gigabyte B550 AORUS ELITE WIFI7, Socket AM4, DDR4, ATX
927,00 RON
(TVA inclus)
Livrare 1-3 zile lucratoare /
Cost livrare - 25 lei
Cum te putem ajuta?
Descriere
Placa video Gigabyte B550 AORUS ELITE WF7
Detalii
SKU
B550 AORUS ELITE WF7
Categorii
Brand
Product colour
Black
BLUETOOTH
Yes
Ethernet LAN
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Memory channels
Dual-channel
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Headphone outputs
1
Maximum internal memory
128 GB
Wi-Fi
Yes
Processor manufacturer
AMD
Component for
PC
Microphone in
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
DisplayPort version
1.4
HDCP
Yes
HDCP version
2.3
DisplayPorts quantity
1
Warranty period
3 year(s)
Products per shipping (inner) case
1 pc(s)
VGA (D-Sub) ports quantity
0
Windows operating systems supported
Windows 11
Country of origin
China
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Bluetooth version
5.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
Line-in
Yes
PCI Express x16 (Gen 4.x) slots
1
PCI Express x1 (Gen 3.x) slots
1
USB 2.0 ports quantity
2
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
2nd M.2 largest key size
22110
PCI Express x16 (Gen 3.x) slots
2
Motherboard form factor
ATX
Power source type
ATX
Motherboard chipset family
AMD
Audio output channels
7.1 channels
Audio Chip
Realtek ALC897
Parallel processing technology support
Not supported
DirectX version
12.0
Front panel connector
Yes
Number of CPU fan connectors
2
RGB LED pin header
Yes
12V power connector
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Number of EPS power connectors (8-pin)
1
Number of chassis fan connectors
3
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Antenna included
Yes
Batteries included
Yes
Screws included
Yes
Package width
335 mm
Package depth
270 mm
Package height
80 mm
DVI-D ports quantity
0
WiFi-AP antenna jack
2
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
RAID support
Yes
RAID levels
0, 1, 10
Height
35 mm
MB-Format
ATX
RAM-Slots
4
USB3
4-8
PCI-Ex1
1
BIOS memory size
128 Mbit
Number of M.2 (M) slots
2
1st M.2 highest PCI Express generation
4.0
USB 2.0 connectors
2
ECC сompatibility
ECC & Non-ECC
Number of storage drives supported
6
Width
244 mm
2nd M.2 highest PCI Express generation
3.0
1st M.2 largest key size
22110
Motherboard chipset
AMD B550
Number of water pump connectors
1
Number of RGB LED pin headers
5
Supported memory types
DDR4-SDRAM
Maximum internal memory per slot
32 GB
Processor socket
Socket AM4
Supported processor sockets
Socket AM4
WLAN controller model
Realtek RTL8922AE
LAN controller
Realtek RTL8125
S/PDIF out port
Yes
Maximum resolution
5120 x 2880 pixels
Digital audio optical out
1
PCI-Ex16
3
Supported memory clock speed (max)
4733 MHz
MB-Socket
AM4
Supported memory clock speeds
4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz
Depth
305 mm
Bundled software
Norton Internet Security (OEM version)
PC health monitoring
Fan, LED, Temperature, Voltage, Water cooling
Ethernet interface type
2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Package weight
1.92 kg
Weight
1.68 kg
Battery capacity
220 mAh
Compatible processor series
AMD Ryzen 5000 Series, AMD Ryzen 4000 Series, AMD Ryzen 3000 Series
Supported storage drive interfaces
M.2, PCI Express 4.0, PCI Express 3.0, SATA III
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Cooling type
Passive
