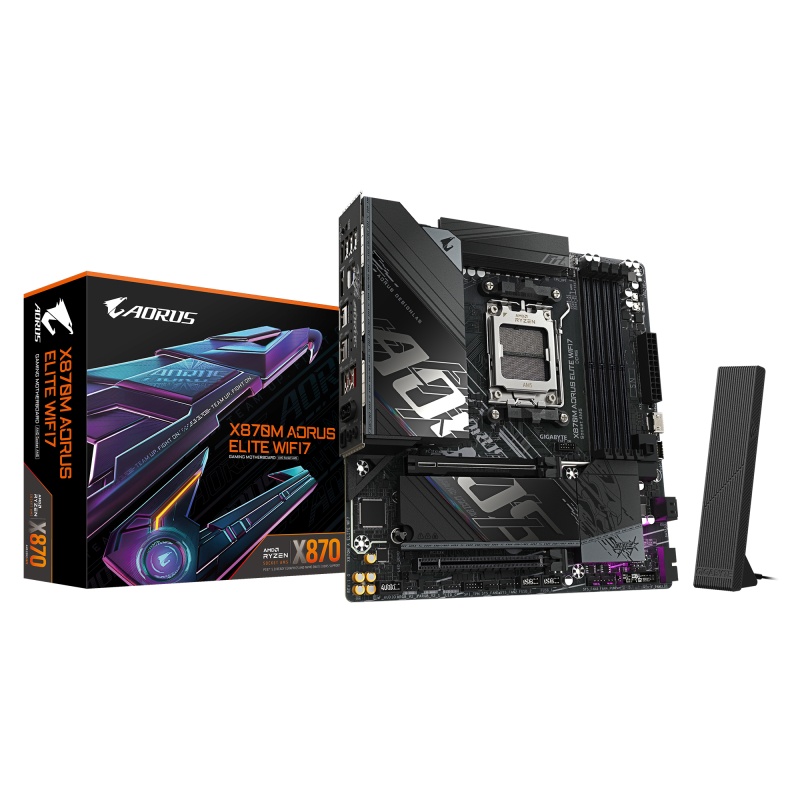

GIGABYTE X870M AORUS ELITE WIFI7. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory:
1.828,00 RON
(TVA inclus)
Livrare 1-3 zile lucratoare
Cost livrare - 25 lei
Cum te putem ajuta?
Detalii
SKU
X870M A ELITE WF7
Categorii
Brand
Product colour
Black
BLUETOOTH
Yes
Ethernet LAN
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Memory channels
Dual-channel
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Headphone outputs
1
Wi-Fi
Yes
Processor manufacturer
AMD
USB4 Gen 3x2 ports quantity
2
Component for
PC
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
DisplayPort version
1.4
HDCP
Yes
Warranty period
3 year(s)
Products per shipping (inner) case
1 pc(s)
VGA (D-Sub) ports quantity
0
Country of origin
China
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Wi-Fi standards
Wi-Fi 7 (802.11be)
Bluetooth version
5.4
PCI Express x16 (Gen 5.x) slots
1
Line-in
Yes
PCI Express x16 (Gen 4.x) slots
1
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Clear CMOS button
Yes
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
1st M.2 largest key size
25110
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
2nd M.2 highest PCI Express generation
4.0
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Motherboard chipset family
AMD
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
DirectX version
12.0
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
Number of water pump connectors
2
RGB LED pin header
Yes
Number of RGB LED pin headers
4
12V power connector
Yes
Number of EPS power connectors (8-pin)
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory
256 GB
Maximum internal memory per slot
64 GB
ECC сompatibility
Non-ECC
Antenna included
Yes
Batteries included
Yes
Screws included
Yes
DVI-D ports quantity
0
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
WiFi-AP antenna jack
2
Supported storage drive types
HDD & SSD
RAID support
Yes
Depth
244 mm
Height
35 mm
Number of M.2 (M) slots
2
Motherboard form factor
micro ATX
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
RAID levels
0, 1, 5, 10
Width
244 mm
Ethernet interface type
2.5 Gigabit Ethernet
Number of chassis fan connectors
4
Package height
68 mm
USB 3.2 Gen 2x2 connectors
1
WLAN controller model
Realtek RTL8922AE
LAN controller
Realtek RTL8125
Package width
270 mm
Package depth
268 mm
Windows operating systems supported
Windows 11 x64
Supported memory clock speed (max)
8200 MHz
S/PDIF out port
Yes
Number of SATA III connectors
2
Digital audio optical out
1
Number of HDDs supported
2
Number of storage drives supported
4
Supported storage drive interfaces
M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Motherboard chipset
AMD X870
Supported memory clock speeds
8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz
Audio Chip
Realtek ALC1220-VB
Bundled software
Norton Internet Security (OEM version)
Package weight
2.06 kg
Cooling type
Passive
