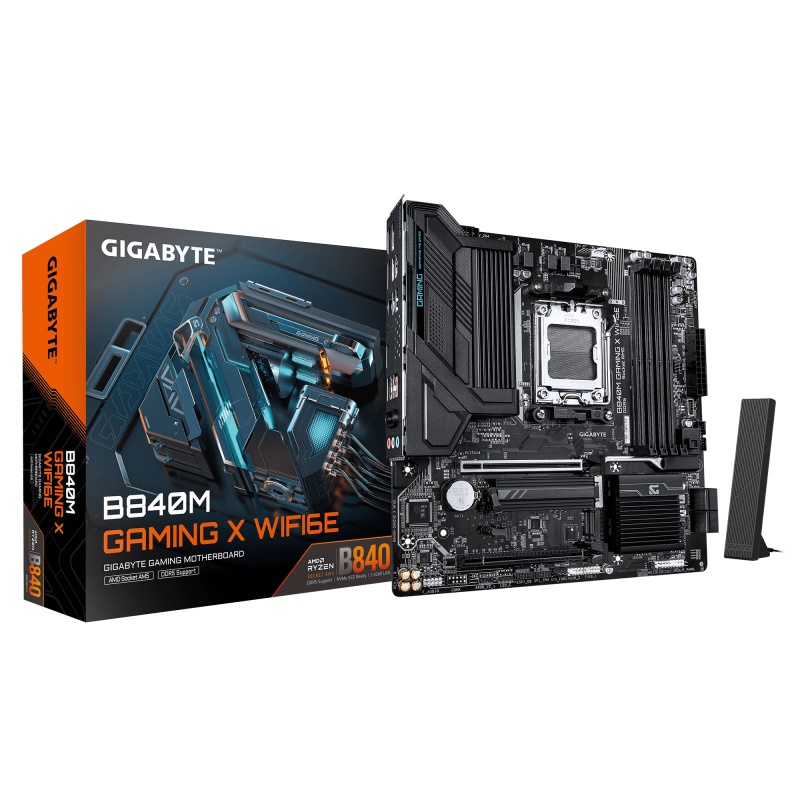

GIGABYTE B840M GAMING X WIFI6E. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256
870,00 RON
(TVA inclus)
Livrare 1-3 zile lucratoare / Cost livrare - 25 lei
Cum te putem ajuta?
Detalii
SKU
B840M GAMING X WF6E
Categorii
Brand
BLUETOOTH
Yes
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi standards
Wi-Fi 6E (802.11ax)
Bluetooth version
5.3
Ethernet LAN
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Memory channels
Dual-channel
Headphone outputs
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
Wi-Fi
Yes
Processor manufacturer
AMD
Component for
PC
Microphone in
Yes
DisplayPort version
1.4
DisplayPorts quantity
2
HDCP
Yes
HDCP version
2.3
Warranty period
3 year(s)
Products per shipping (inner) case
1 pc(s)
VGA (D-Sub) ports quantity
0
Country of origin
China
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Line-in
Yes
PCI Express x16 (Gen 4.x) slots
1
USB 2.0 ports quantity
4
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
2nd M.2 largest key size
22110
2nd M.2 highest PCI Express generation
4.0
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Motherboard chipset family
AMD
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Audio output channels
7.1 channels
Audio Chip
Realtek ALC897
Parallel processing technology support
Not supported
DirectX version
12.0
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
Number of water pump connectors
2
RGB LED pin header
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Number of EPS power connectors (8-pin)
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory
256 GB
Maximum internal memory per slot
64 GB
ECC сompatibility
Non-ECC
Ethernet interface type
Gigabit Ethernet
Antenna included
Yes
Batteries included
Yes
Screws included
Yes
DVI-D ports quantity
0
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
WiFi-AP antenna jack
2
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
RAID support
Yes
Depth
244 mm
Height
35 mm
Product colour
Dark brown
Number of M.2 (M) slots
2
1st M.2 highest PCI Express generation
4.0
Motherboard form factor
micro ATX
USB 2.0 connectors
2
Number of chassis fan connectors
2
Number of storage drives supported
6
PS/2 ports quantity
1
Supported storage drive interfaces
M.2, PCI Express 4.0, SATA III
Width
244 mm
Motherboard chipset
AMD B840
Package height
68 mm
PCI Express x16 (Gen 3.x) slots
1
LAN controller
Realtek RTL8125
Number of RGB LED pin headers
3
Package width
270 mm
1st M.2 largest key size
2580
Package depth
268 mm
Supported memory clock speed (max)
8200 MHz
Package weight
1.24 kg
RAID levels
0, 1, 10, 5
Bundled software
Norton Internet Security (OEM version)
WLAN controller model
MediaTek MT7902
Weight
1.15 kg
Battery capacity
220 mAh
Supported memory clock speeds
8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5600,5800 MHz
Cooling type
Passive
