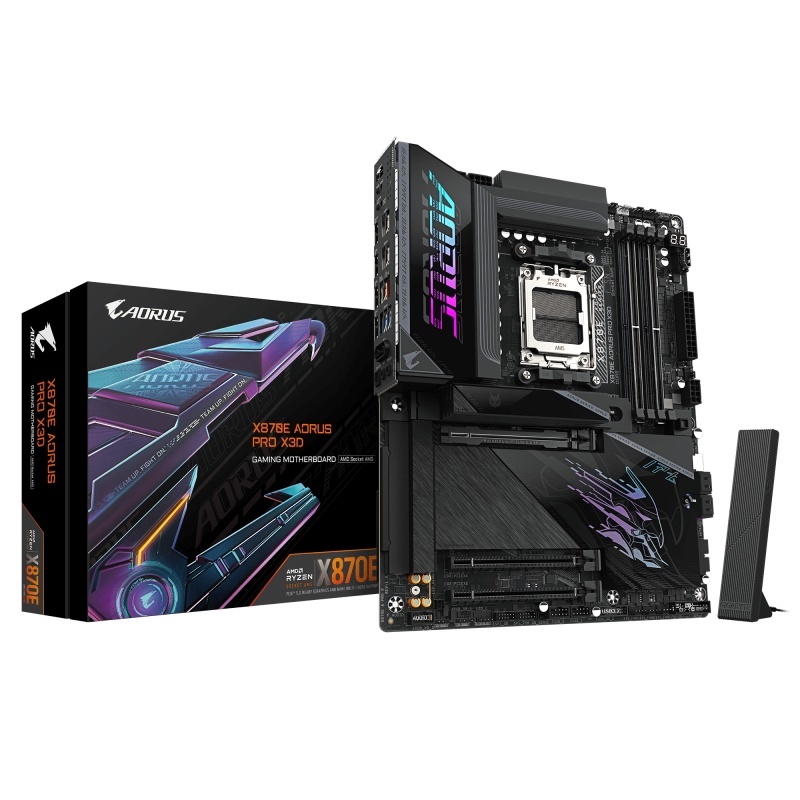

GIGABYTE X870E AORUS PRO X3D. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256
2.241,00 RON
(TVA inclus)
Livrare 1-3 zile lucratoare
Cost livrare - 25 lei
Cum te putem ajuta?
Detalii
SKU
X870E A PRO X
Categorii
Brand
Country of origin
Taiwan
Product colour
Black
BLUETOOTH
Yes
Ethernet LAN
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Memory channels
Dual-channel
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Headphone outputs
1
Wi-Fi
Yes
Processor manufacturer
AMD
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2
Component for
PC
DisplayPort version
1.4
HDCP
Yes
HDCP version
2.3
Warranty period
3 year(s)
Products per shipping (inner) case
1 pc(s)
VGA (D-Sub) ports quantity
0
USB 2.0 ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
Bluetooth version
5.4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
PCI Express x16 (Gen 5.x) slots
1
Line-in
Yes
PCI Express x16 (Gen 4.x) slots
1
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Clear CMOS button
Yes
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
1st M.2 largest key size
25110
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
3rd M.2 largest key size
22110
3rd M.2 highest PCI Express generation
4.0
Motherboard form factor
ATX
Power source type
ATX
Motherboard chipset family
AMD
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
DirectX version
12.0
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
RGB LED pin header
Yes
Number of RGB LED pin headers
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory
256 GB
Maximum internal memory per slot
64 GB
ECC сompatibility
Non-ECC
Antenna included
Yes
Batteries included
Yes
Screws included
Yes
Package height
80 mm
DVI-D ports quantity
0
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
WiFi-AP antenna jack
2
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
RAID support
Yes
Height
35 mm
USB 2.0 connectors
2
RAID levels
0, 1, 5, 10
2nd M.2 highest PCI Express generation
5.0
USB 3.2 Gen 2x2 connectors
1
PCI Express x16 (Gen 3.x) slots
1
Maximum resolution
4096 x 2304 pixels
Number of EPS power connectors (8-pin)
2
Number of water pump connectors
3
Windows operating systems supported
Windows 11 x64
4th M.2 highest PCI Express generation
4.0
Number of M.2 (M) slots
4
Number of storage drives supported
8
Motherboard chipset
AMD X870E
LAN controller
Realtek RTL8126
S/PDIF out port
Yes
Digital audio optical out
1
Number of chassis fan connectors
6
Supported storage drive interfaces
M.2, PCI Express 4.0, PCI Express 5.0, SATA III
USB4 Gen 2x2 ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
5
Supported memory clock speed (max)
9000 MHz
Audio Chip
Realtek ALC1220-VB
4th M.2 largest key size
22110
Package depth
294 mm
Number of temperature sensor headers
2
BIOS memory size
512 Mbit
Ethernet interface type
2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
WLAN controller model
Qualcomm QCNCM865
PC health monitoring
CPU, Fan, Temperature, Voltage, Water cooling
Supported memory clock speeds
9000,8800,8600,8400,8200,8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800 MHz
Package weight
4.25 kg
Battery capacity
220 mAh
Weight
3.73 kg
Package width
34.5 mm
Depth
24.4 mm
Width
30.5 mm
Cooling type
Passive
