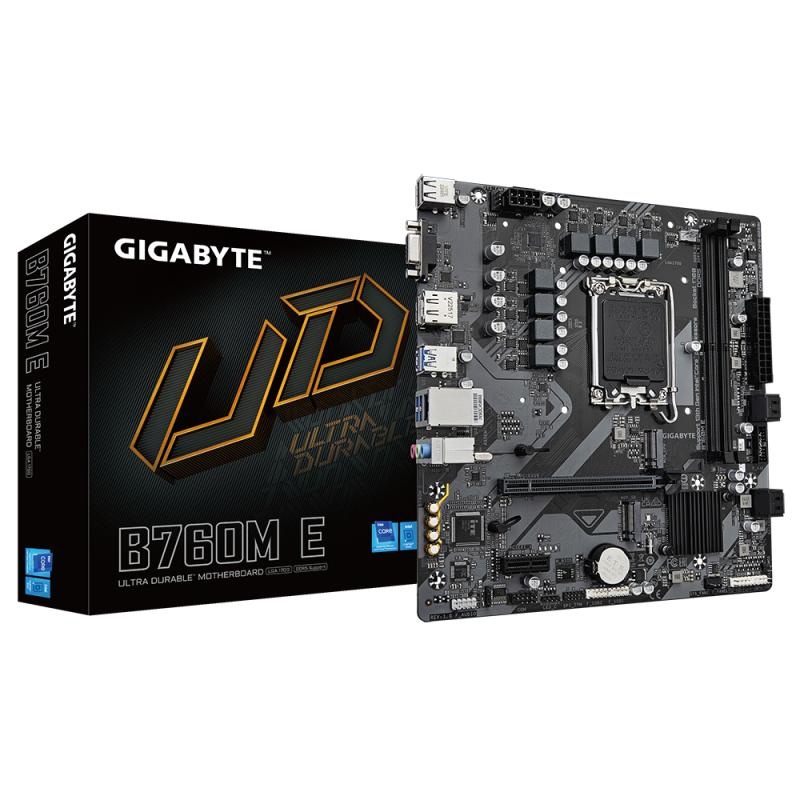

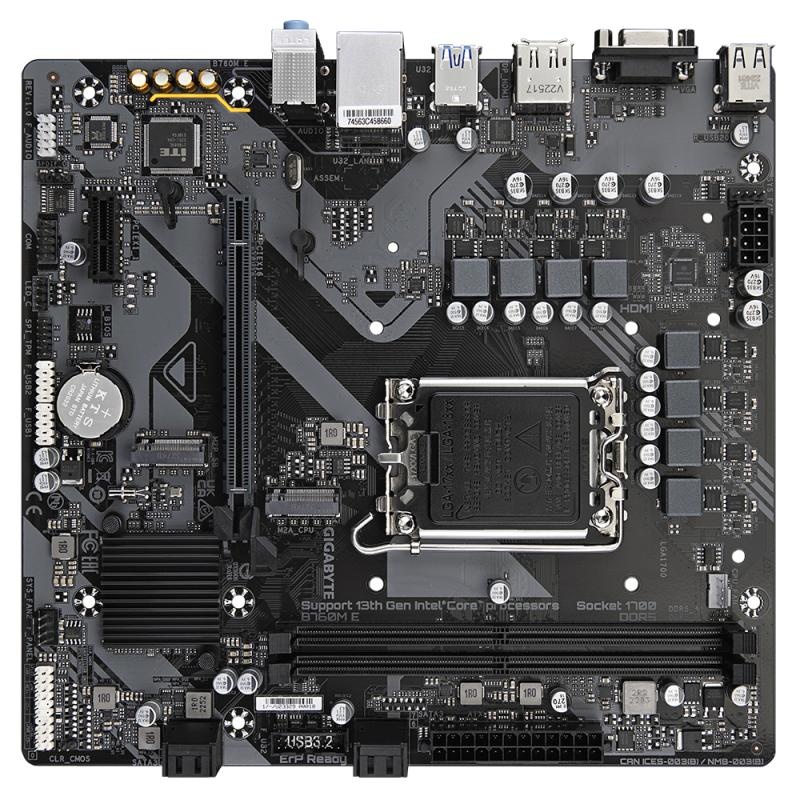

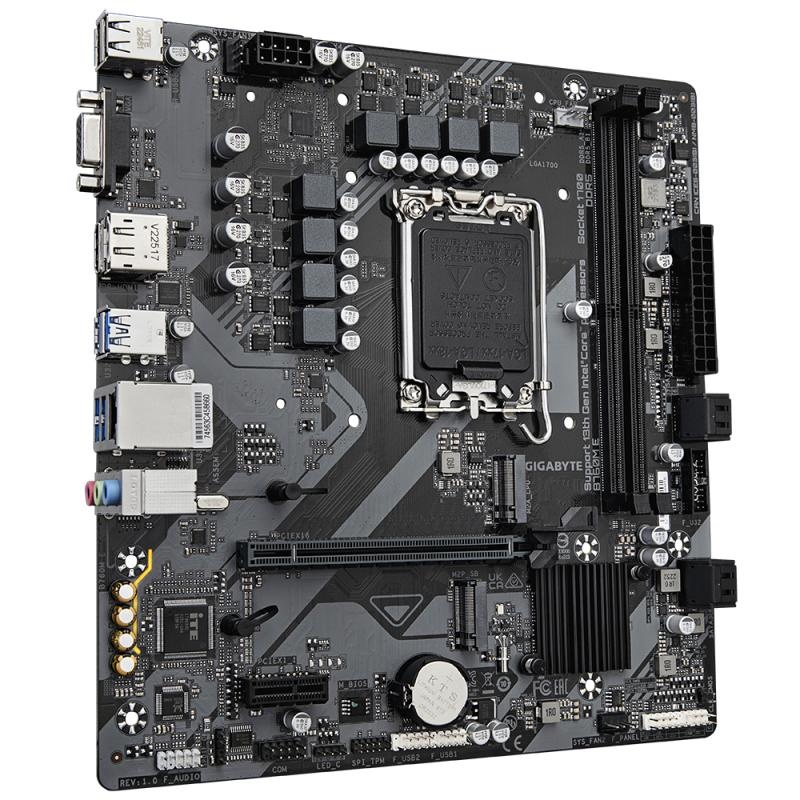

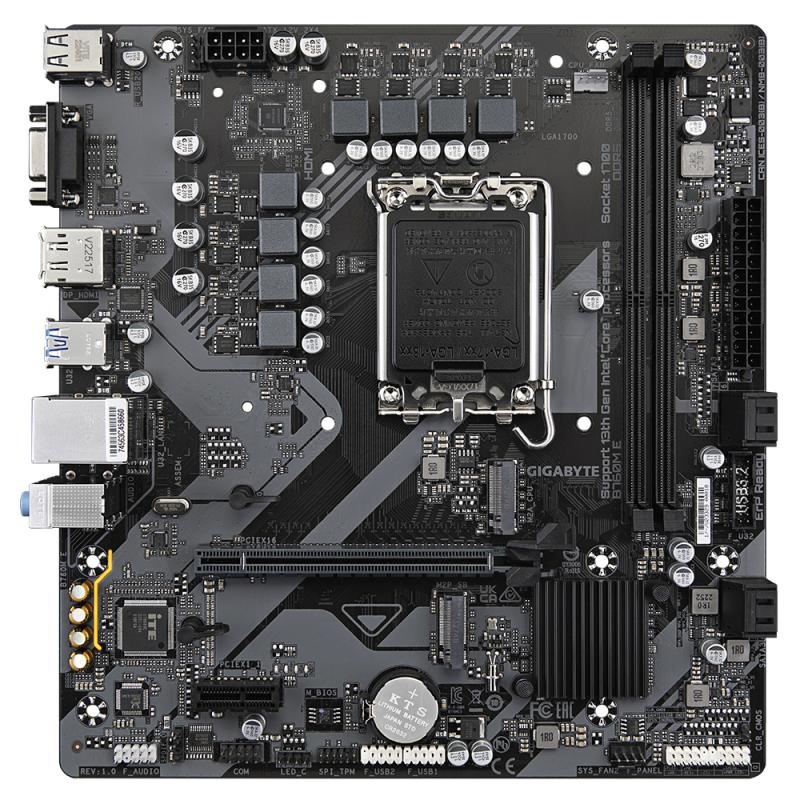

Placa de bază Gigabyte B760M E LGA1700
465,00 RON
(TVA inclus)
Livrare 1-3 zile lucratoare / Cost livrare - 25 lei
Cum te putem ajuta?
Detalii
SKU
B760M E
Categorii
Brand
Processor manufacturer
Intel
Ethernet LAN
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Memory channels
Dual-channel
Depth
215 mm
Headphone outputs
1
Maximum internal memory
128 GB
Component for
PC
Microphone in
Yes
HDCP
Yes
DisplayPorts quantity
1
Warranty period
3 year(s)
Products per shipping (inner) case
1 pc(s)
Wi-Fi
No
VGA (D-Sub) ports quantity
1
DisplayPort version
1.2
Country of origin
China
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Line-in
Yes
PCI Express x16 (Gen 4.x) slots
1
PCI Express x1 (Gen 3.x) slots
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 2.0 ports quantity
2
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
2nd M.2 highest PCI Express generation
4.0
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Audio output channels
7.1 channels
Audio Chip
Realtek ALC897
Parallel processing technology support
Not supported
DirectX version
12.0
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
TPM connector
Yes
RGB LED pin header
Yes
12V power connector
Yes
Serial port headers
1
Number of EPS power connectors (8-pin)
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory per slot
64 GB
LAN controller
Realtek RTL8111H
Ethernet interface type
Gigabit Ethernet
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
Batteries included
Yes
Screws included
Yes
DVI-D ports quantity
0
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Supported storage drive interfaces
M.2, SATA III
RAID support
Yes
Height
35 mm
USB3
4-8
PCI-Ex1
1
BIOS memory size
128 Mbit
Product colour
Dark brown
Number of M.2 (M) slots
2
1st M.2 highest PCI Express generation
4.0
1st M.2 largest key size
2280
2nd M.2 largest key size
2280
Motherboard chipset
Intel B760
Motherboard form factor
micro ATX
Motherboard chipset family
Intel
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of chassis fan connectors
2
Number of RGB LED pin headers
1
Number of CPU fan connectors
1
S/PDIF out connector
Yes
Number of memory slots
2
Supported memory clock speed (max)
7200 MHz
ECC сompatibility
ECC & Non-ECC
Supported memory clock speeds
7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,4800,4000 MHz
Package depth
265 mm
Package weight
900 g
Package height
54 mm
Package width
265 mm
Processor socket
LGA 1700
Supported processor sockets
LGA 1700
Number of storage drives supported
6
RAID levels
0, 1, 5, 10
Width
230 mm
MB-Socket
1700
MB-Format
micro-ATX
RAM-Slots
2
PCI-Ex16
1
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Cooling type
Passive
