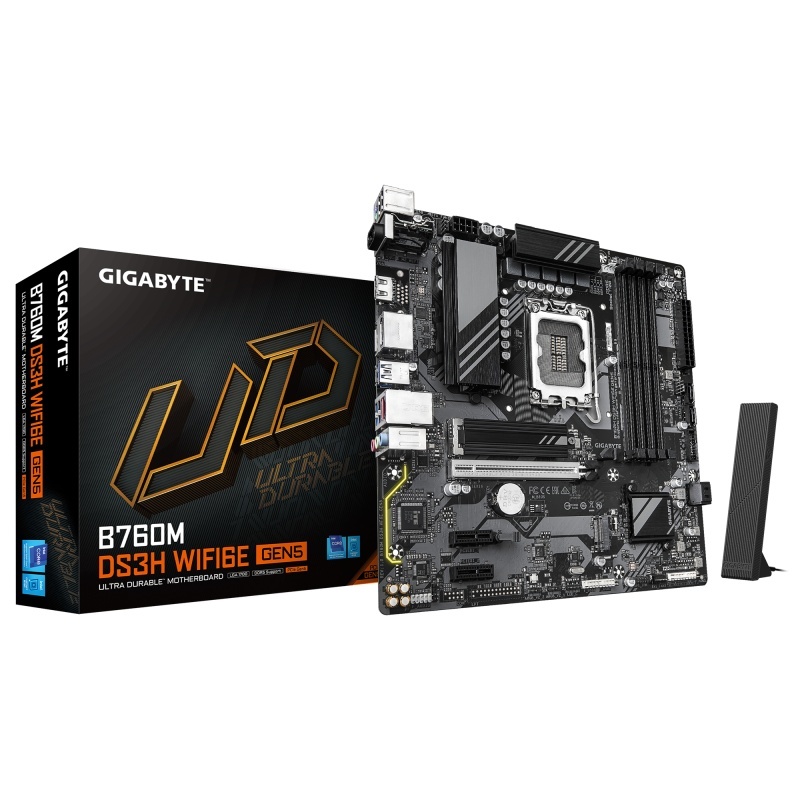

Placa de bază Gigabyte B760M DS3H WIFI6E GEN5 LGA1700
687,00 RON
(TVA inclus)
Livrare 1-3 zile lucratoare /
Cost livrare - 25 lei
Cum te putem ajuta?
Detalii
SKU
B760M DS3H WF6E GEN5
Categorii
Brand
BLUETOOTH
Yes
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Bluetooth version
5.3
Processor manufacturer
Intel
Ethernet LAN
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Memory channels
Dual-channel
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Headphone outputs
1
Wi-Fi
Yes
Component for
PC
Microphone in
Yes
DisplayPorts quantity
2
HDCP
Yes
Warranty period
3 year(s)
Products per shipping (inner) case
1 pc(s)
VGA (D-Sub) ports quantity
0
DisplayPort version
1.2
Country of origin
China
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 (Gen 5.x) slots
1
Line-in
Yes
USB 2.0 ports quantity
2
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
2nd M.2 highest PCI Express generation
4.0
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Audio output channels
7.1 channels
Audio Chip
Realtek ALC897
Parallel processing technology support
Not supported
DirectX version
12.0
Front panel connector
Yes
TPM connector
Yes
RGB LED pin header
Yes
12V power connector
Yes
Number of EPS power connectors (8-pin)
1
Number of chassis fan connectors
3
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory
256 GB
Maximum internal memory per slot
64 GB
Antenna included
Yes
Batteries included
Yes
Screws included
Yes
DVI-D ports quantity
0
WiFi-AP antenna jack
2
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
RAID support
Yes
Depth
244 mm
Height
35 mm
RAM-Slots
4
USB3
4-8
BIOS memory size
128 Mbit
Product colour
Dark brown
Number of M.2 (M) slots
2
1st M.2 highest PCI Express generation
4.0
1st M.2 largest key size
2280
2nd M.2 largest key size
2280
Motherboard form factor
micro ATX
Motherboard chipset family
Intel
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of CPU fan connectors
1
S/PDIF out connector
Yes
ECC сompatibility
ECC & Non-ECC
Processor socket
LGA 1700
Supported processor sockets
LGA 1700
Number of storage drives supported
6
RAID levels
0, 1, 5, 10
MB-Socket
1700
MB-Format
micro-ATX
PCI-Ex16
1
PS/2 ports quantity
1
Supported storage drive interfaces
M.2, PCI Express 4.0, SATA III
Width
244 mm
Ethernet interface type
2.5 Gigabit Ethernet
Package height
68 mm
PCI-Ex1
2
Maximum resolution
4096 x 2304 pixels
LAN controller
Realtek RTL8125
Number of RGB LED pin headers
3
Package width
270 mm
Package depth
268 mm
Package weight
1.2 kg
Weight
1.1 kg
Supported memory clock speed (max)
5600 MHz
Supported memory clock speeds
5600,5200,4800,4400 MHz
Bundled software
Norton Internet Security (OEM version)
WLAN controller model
Intel Wi-Fi 6E AX210
Motherboard chipset
Intel B760 Express
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Cooling type
Passive
