NOU

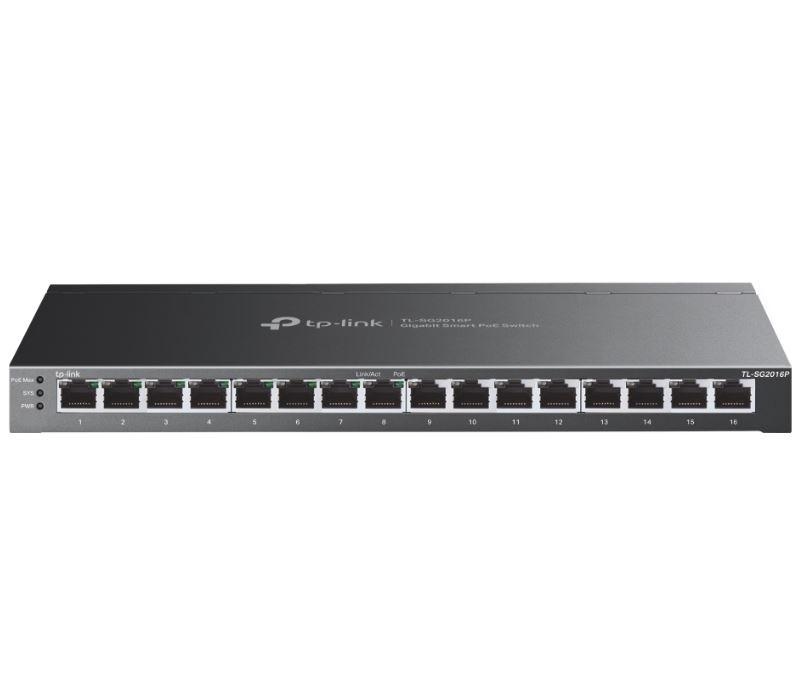

"JetStream™ 16-Port Gigabit Smart Switch with 8-Port PoE+ PORT: 8× Gigabit PoE+ Ports SPEC: 802.3af/at, 120 W PoE Power, Desktop Steel Case FEATURE: Integration with JetStream™ SDN Controller, Static Routing, 802.1Q VLAN, STP/RSTP/MSTP, IGMP Snooping,
1.286,00 RON
(TVA inclus)
Livrare 1-3 zile lucratoare
Cost livrare - 25 lei
Cum te putem ajuta?
Descriere
"JetStream™ 16-Port Gigabit Smart Switch with 8-Port PoE+ PORT: 8× Gigabit PoE+ Ports SPEC: 802.3af/at, 120 W PoE Power, Desktop Steel Case FEATURE: Integration with JetStream™ SDN Controller, Static Routing, 802.1Q VLAN, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image, IPv6"
Detalii
SKU
TL-SG2016P
Categorii
Brand
Ethernet LAN data rates
10,100,1000 Mbit/s
Operating relative humidity (H-H)
10 - 90%
Cables included
AC
Storage relative humidity (H-H)
5 - 90%
Operating temperature (T-T)
0 - 40 C
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Storage temperature (T-T)
-40 - 70 C
Web-based management
Yes
Multicast support
Yes
Rack mounting
Yes
Rackable
No
Firmware upgradeable
Yes
System event log
Yes
Jumbo frames support
Yes
MAC address table
8000 entries
Packet buffer memory
4.1 MB
VLAN support
Yes
Rate limiting
Yes
Spanning tree protocol
Yes
Port mirroring
Yes
Power over Ethernet (PoE)
Yes
Link aggregation
Yes
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
DC input voltage
53.5 V
IGMP snooping
Yes
Height
25.4 mm
Redundant-PSU
No
Stackable
No
Flow control support
Yes
Switch type
Managed
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
10G support
No
Broadcast storm control
Yes
Fanless
Yes
Power source
DC/PoE
Total Power over Ethernet (PoE) budget
120 W
Jumbo frames
9000
Quality of Service (QoS) support
Yes
Cloud-managed
Yes
Configuring Location Settings (CLI)
Yes
ARP inspection
Yes
Number of VLANs
4000
Access Control List (ACL)
Yes
SSH/SSL support
Yes
Layer
Layer-2
LAN-Port-Type
Gigabit
Installed SFP+ modules quantity
0
Installed SFP modules quantity
0
Switching capacity
32 Gbit/s
Basic switching RJ-45 Ethernet ports quantity
16
MAC address filtering
Yes
Number of queues
8
Multicast Listener Discovery (MLD) snooping
MLD v1, MLD v2
GARP VLAN Registration Protocol (GVRP)
Yes
BPDU filtering/protection
Yes
IP-MAC-Port binding
Yes
LAN-Ports
16
Power over Ethernet plus (PoE+) ports quantity
8
Power connector
DC-in jack
MAC address entries
Dynamic MAC address entries, Static MAC address entries
Switch layer
L2/L2+
Certification
CE, FCC, RoHS
Authentication
Guest VLAN, MAC-based authentication, Port-based authentication
Forwarding rate
23.81 Mpps
MIB support
RFC1213, RFC1493, RFC2674, RFC2620, RFC2618, RFC2925, RFC1757
Virtual LAN features
Multicast VLAN, Tagged VLAN, Voice VLAN
Heat dissipation
499.98 BTU/h
IPv4 & IPv6 features
Dual stack IPv4/IPv6
Supported network protocols
ICMP, TCPv6, UDPv6, Ping6, Tracert6, Telnet (v6), TFTP, TCP/UDP, DSCP/IP, SSLv3, TLS 1.2
Queue scheduling algorithms
SP, Weighted Round Robin (WRR)
DHCP features
DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Security algorithms
EAP-MD5, HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS
LED indicators
PoE, Power, System
Width
286 mm
Depth
111.7 mm
Power consumption (max)
146.5 W
