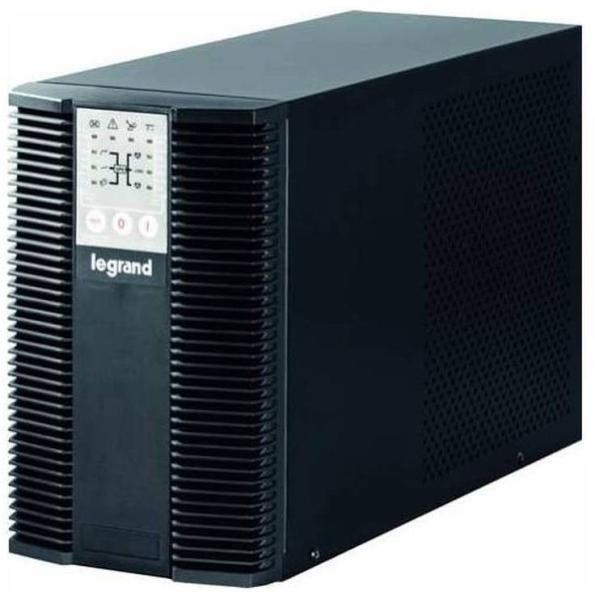

UPS Legrand Keor LP FR On-Line Dubla Conversie 3000VA 2700W, 6x IEC C13 si 2x French/B, RS232 port, 6pcs 12V 7.2Ah, dimensiuni 322 x 189 x 444mm;
4.051,00 RON
(TVA inclus)
Livrare 1-3 zile lucratoare
Cost livrare - 25 lei
Cum te putem ajuta?
Descriere
| Keor LP - On-line double conversion UPS (tower) - single phase VFI |
| For security systems, lighting systems, CCTV, servers. Ideal for environments with frequent electrical disturbances |
| Installation: downstream power generators. Advanced management depending on the battery discharge level |
| Self-diagnosis. Power factor: 0.9 |
| Automatic internal bypass, manual bypass for external maintenance (optional) |
| Integrated slot for installing a communication interface for Ethernet network connection, to be ordered separately |
| Cold Start function |
| Microprocessor control |
| Telephone line/Internet protection (RJ 11/RJ 45) |
| Internal network interface Cat.No 3 108 82 for remote protection of equipment and systems |
| Remote emergency shutdown function (''Emergency Power Off'' - EPO) |
Detalii
SKU
000000000000310159
Categorii
Brand
Battery recharge time
3 h
Operating relative humidity (H-H)
20 - 80%
Operating temperature (T-T)
0 - 40 C
LED indicators
Yes
Web-based management
Yes
RS-232 ports
1
Efficiency
90%
Number of batteries supported
6
Output operation voltage (max)
230 V
Battery technology
Sealed Lead Acid (VRLA)
Output voltage Total Harmonic Distortion (THD)
3%
Audible alarm(s)
Yes
UPS topology
Double-conversion (Online)
Crest factor
3:1
Waveform
Sine
Noise level
50 dB
Emergency Power Off (EPO) connector
Yes
AC outlet types
C13 coupler
Battery voltage
7.2 V
Output power
2700 W
Output operation voltage (min)
230 V
Output power capacity
3 kVA
Power plug
C20 coupler
Battery capacity
7 Ah
Emergency Power Off (EPO)
Yes
Number of input phases
1
Serial interface
Yes
AC outlets quantity
8 AC outlet(s)
Serial interface type
RS-232
Audible alarm modes
Alarm when on battery, Fault, Low battery alarm, Overload alarm
Number of type F outputs
2
Depth
151 mm
Input power factor
0.99
Output voltage regulation
1%
Input operation voltage (max)
300 V
Automatic battery test
Yes
Management protocols
SNMP
Input operation voltage (min)
160 V
Power factor
0.98
Input frequency
45/65 Hz
Typical backup time at half load
7 min
Certification
CE, EN 62040-1, EN 62040-2
International Protection (IP) code
IP21
Weight
2.3 kg
Width
322 mm
Height
44.4 mm
