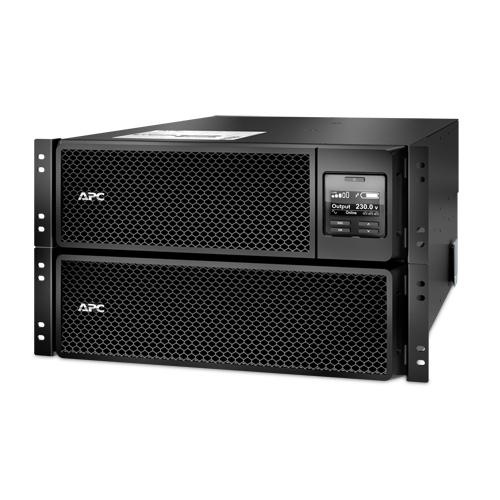

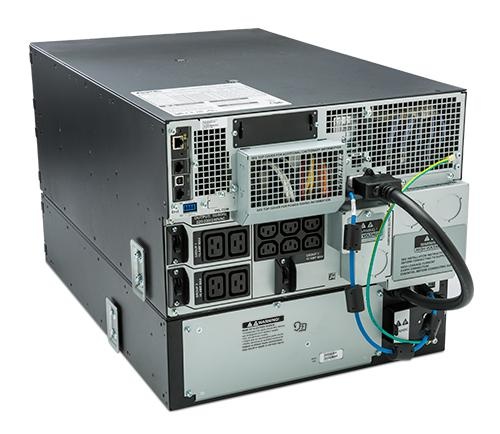

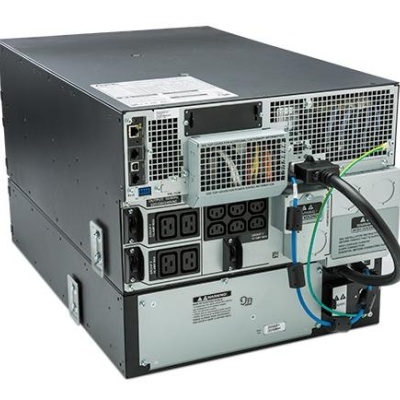

UPS APC Smart-UPS SRT online dubla-conversie 10kVA / 10kW 6 conectori C13 4 conectori C19 extended runtime rackabil 6U,3 ani garantie echipament si 2 ani garantie baterie

58.320,00 RON (TVA inclus)
Livrare 1-3 zile lucratoare / Cost livrare - 25 lei
Cumpara acum, plateste mai tarziu de la 1.148,54 RON / Luna Detalii aici
Cod produs - SKU SRT10KRMXLI
Adauga la Favorite
Cum te putem ajuta?
Suna-ne: 0739 552 100 (Luni-Vineri, 09.00-18.00)
Cere detalii
Trimite-ne un mesaj

Descriere

APC Smart-UPS SRT 10000VA RM 230V

High density, double-conversion on-line power protection with scalable runtime

Includes: CD with software, Documentation CD, Installation guide, Rack mounting brackets, Rack mounting hardware, Rack mounting support rails, Temperature probe, USB cable, Warranty card, Web/SNMP management card

Output power capacity

10.0kWatts / 10.0kVA

Rack Height

6U

Output Connections

(3) IEC Jumpers (Battery Backup)

(6) IEC 320 C13 (Battery Backup)

(1) Hard Wire 3-wire (H N + G) (Battery Backup)

(6) IEC 60320 C13 (Battery Backup)

(4) IEC 60320 C19 (Battery Backup)

(4) IEC 320 C19 (Battery Backup)

Nominal Output Voltage

230V

Nominal Input Voltage

230V, 400V 3PH

Input Connections

Hard wire 3-wire (1P + N + E), Hard wire 5-wire (3P + N + E)


Output Voltage Distortion

Less than 2 %

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages

220, 240

Load Crest Factor

3 : 1

Topology

Double conversion online

Waveform type

Sine wave

Bypass

Internal bypass (automatic and manual)

Detalii

SKU
SRT10KRMXLI
Categorii
UPS
Brand
APC
Operating altitude
0 - 3000 m
Storage relative humidity (H-H)
0 - 95%
Sustainability certificates
ENERGY STAR
Quick installation guide
Yes
Temperature sensor
Yes
Surge protection
Yes
Output operation voltage (min)
220 V
Output voltage Total Harmonic Distortion (THD)
3%
Audible alarm(s)
Yes
Output operation voltage (max)
240 V
UPS topology
Double-conversion (Online)
Input frequency
40 - 70 Hz
Crest factor
3:1
Waveform
Sine
Non-operating altitude
0 - 15000 m
Emergency Power Off (EPO)
Yes
Number of output phases
1
Serial interface
Yes
AC outlet types
C13 coupler, C19 coupler
Hot-swap battery
Yes
Auto-restart
Yes
Cold start
Yes
Power plug
Hardwire
Automatic battery test
Yes
Rack mount kit
Yes
UPS-Management
Yes
Typical backup time at half load
11.5 min
SmartSlot
Yes
Serial interface type
RJ-45
Rackable
Yes
Nominal output voltage
230 V
Input operation voltage (min)
100 V
Battery capacity
1805 VAh
Typical backup time at full load
3.8 min
Rack capacity
6U
Output power capacity
10 kVA
Output power
10000 W
Input operation voltage (max)
476 V
Efficiency
94.6%
Output frequency regulation
50/60 Hz
Surge energy rating
480 J
Total carbon footprint (kg of CO2e)
22873.91
Interface
RJ-45 10/100 Base-T
Nominal input voltage
230 V
Bracket
Yes
AC outlets quantity
10 AC outlet(s)
Number of output IEC jumpers
3
Form factor
Rackmount/Tower
