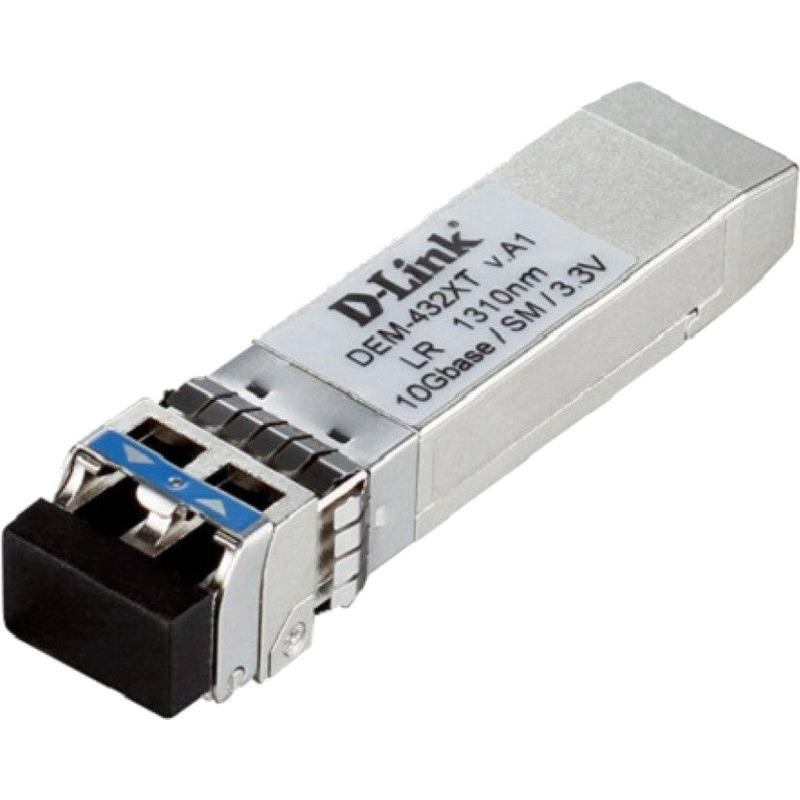

Single Mode Fibre Transceiver D-link, DEM-432XT; Standard Compliance: IEEE-802.3ae/ 10GBASE-LR; Fibre Channel FC-PI Standard: 1200-SM-LL-L; Distance Capacity: 10KM; Speed: 10 Gbps; Duplex LC connector; Single- direction; Wavelength: 1310 nm; Power/
1.456,00 RON
(TVA inclus)
Livrare 1-3 zile lucratoare
Cost livrare - 25 lei
Cum te putem ajuta?
Descriere
Single Mode Fibre Transceiver D-link, DEM-432XT; Standard Compliance: IEEE-802.3ae/ 10GBASE-LR; Fibre Channel FC-PI Standard: 1200-SM-LL-L; Distance Capacity: 10KM; Speed: 10 Gbps; Duplex LC connector; Single- direction; Wavelength: 1310 nm; Power/ Maximum Input Current: 3.3 V:300 mA; Minimum/ Maximum Power Budget: 4.1 dB/ 10.1 dB;
Detalii
SKU
DEM-432XT
Categorii
Brand
Compliance certificates
RoHS
Operating temperature (T-T)
0 - 70 C
Storage temperature (T-T)
-40 - 85 C
Storage relative humidity (H-H)
5 - 95%
Weight
195 g
Depth
118 mm
Hot-Plug support
Yes
Package depth
131 mm
Maximum data transfer rate
10000 Mbit/s
Fiber optic connector
LC
SFP transceiver type
Fiber optic
Networking standards
IEEE 802.3ae
Wavelength
1310 nm
Maximum transfer distance
10000 m
Single-mode fiber (SMF) supported
Yes
Package height
49 mm
Width
148 mm
Duplex system
Full
Interface type
SFP
Shipping (inner) case width
26 cm
Harmonized System (HS) code
85369010
Fiber cable diameters supported (core/cladding)
9/125 m
Operating relative humidity (H-H)
5 - 85%
SFP transceiver standard
LR
Multi-mode fiber (MMF) supported
No
Master (outer) cases per pallet (air)
60 pc(s)
Master (outer) cases per pallet (sea)
60 pc(s)
Shipping (inner) case length
36 cm
Package width
74 mm
Package weight
64 g
Safety
UL, TUV, CDRH
Certification
CE, FCC, VCCI, MSA
Product colour
Gold, Metallic
Mean time between failures (MTBF)
4650000 h
Shipping (inner) case net weight
3.2 kg
Pallet gross weight (air)
272 kg
Products per pallet (air)
3000 pc(s)
Pallet height (air)
199 cm
Pallet gross weight (sea)
272 kg
Products per pallet (sea)
3000 pc(s)
Pallet height (sea)
199 cm
Shipping (inner) case gross weight
4.2 kg
Products per shipping (inner) case
50 pc(s)
Shipping (inner) case height
31 cm
Pallet gross length
102 cm
Pallet gross width
122 cm
Fiber ethernet cabling technology
10GBASE
Tx power (min)
-8.5 dBmW
Tx power (max)
0.5 dBmW
Rx power (min)
-12.6 dBmW
Rx power (max)
0.5 dBmW
Link budget
10.1 dB
Maximum voltage
3.3 V
Maximum current
300 A
Height
56.5 mm
