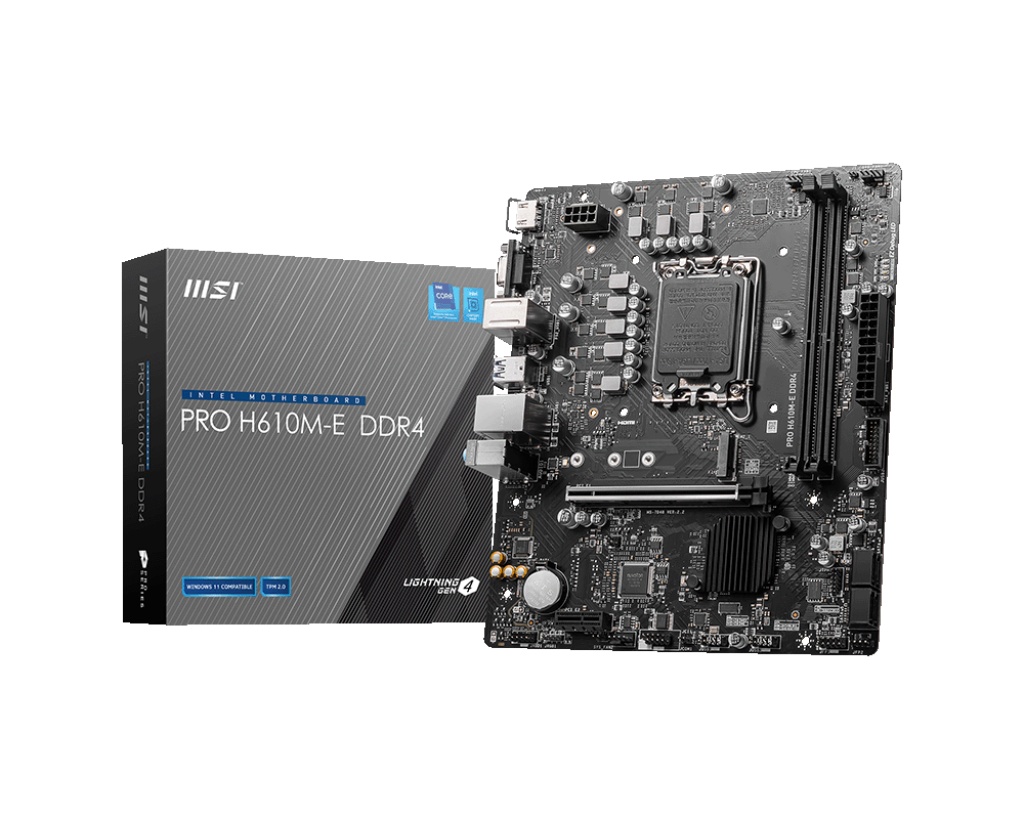

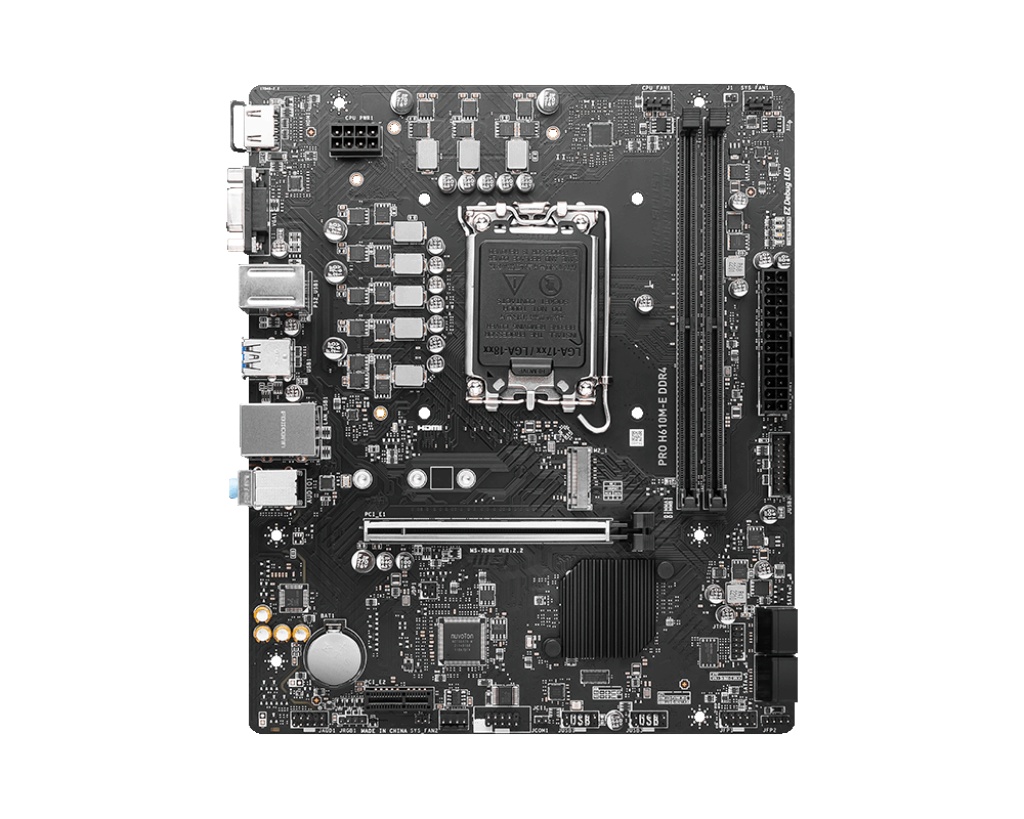

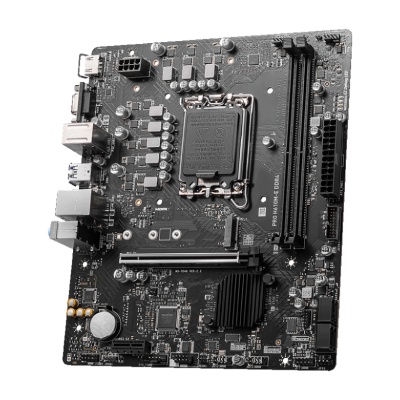

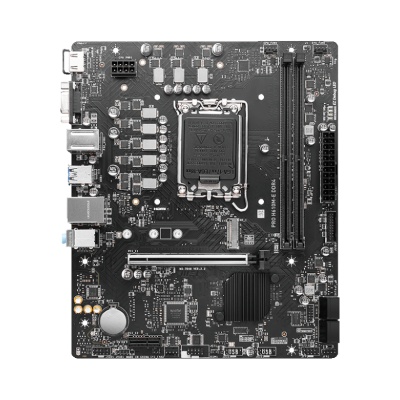

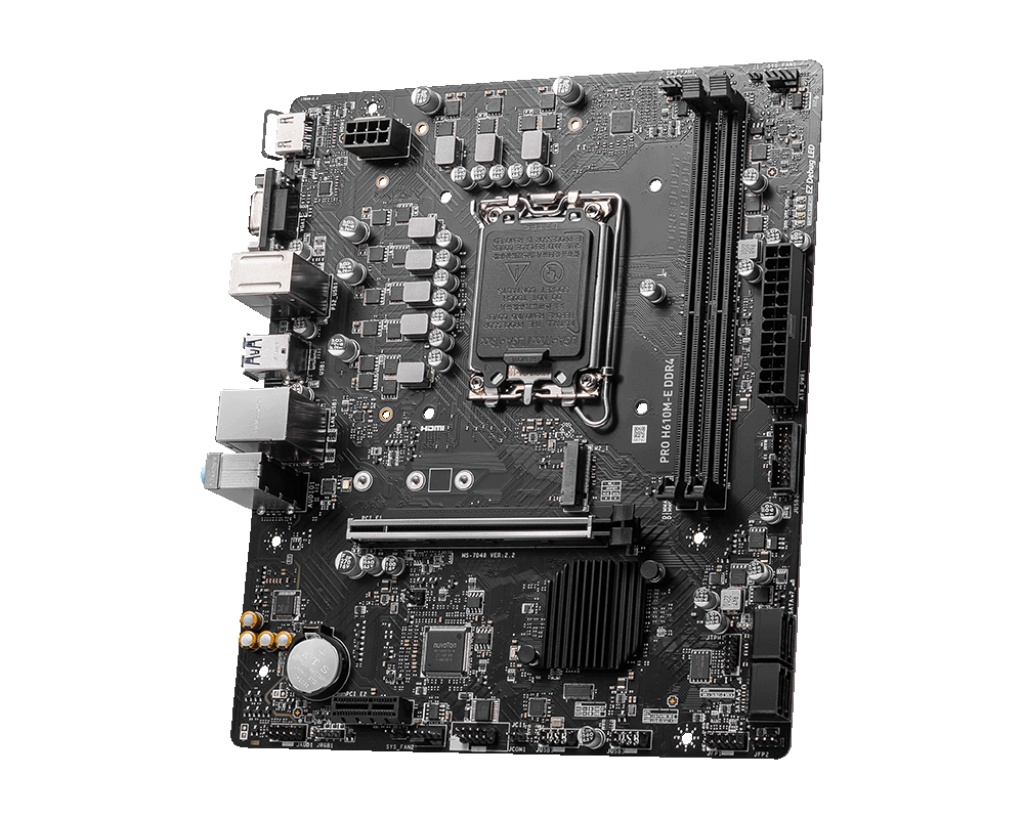

Placa de baza MSI PRO H610M-E DDR4, Socket 1700, DDR4, Micro-ATX
376,00 RON
(TVA inclus)
Livrare 1-3 zile lucratoare /
Cost livrare - 25 lei
Cum te putem ajuta?
Descriere

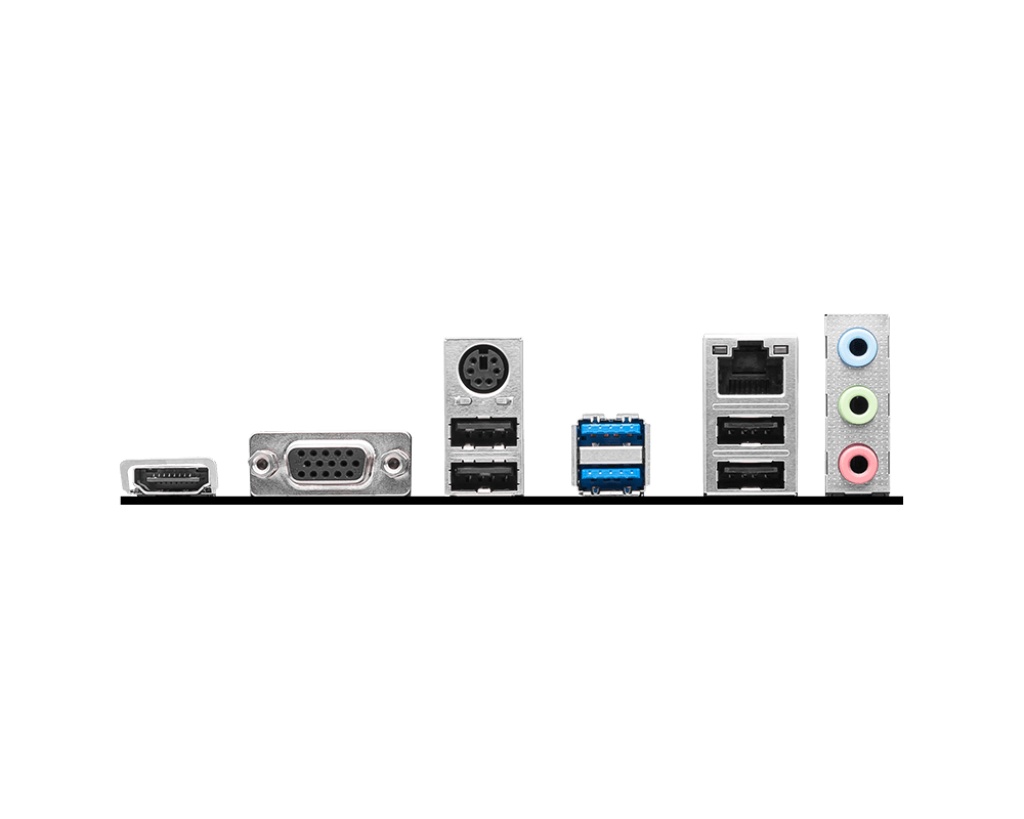

Placa de baza MSI PRO H610M-E LGA1700 DDR4 SPECIFICATIONS Model Name PRO H610M-E DDR4 CPU Support Supports 12th/ 13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors CPU Socket LGA 1700 Chipset Intel® H610 Chipset Graphics Interface 1x PCIe 4.0 x16 slot Display Interface Support 4K@60Hz as specified in HDMI 1.4, VGA – Requires Processor Graphics Memory Support 2 DIMMs, Dual Channel DDR4-3200 MHz (MAX) Expansion Slots 1x PCIe 3.0 x1 slot Storage 1x M.2 Gen3 x4 32Gbps slot, 4x SATA 6Gbps ports USB ports 4x USB 3.2 Gen 1 5Gbps (4 Type-A) 8x USB 2.0 LAN Realtek® RTL8111H Gigabit LAN Audio 8-Channel (7.1) HD Audio with Audio Boost
Detalii
SKU
PRO H610M-E DDR4
Categorii
Brand
Processor manufacturer
Intel
Maximum internal memory
64 GB
Ethernet LAN
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
HDMI ports quantity
1
HDMI version
2.1
Memory channels
Dual-channel
Component for
PC
Wi-Fi
No
VGA (D-Sub) ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB 2.0 ports quantity
4
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
Audio output channels
7.1 channels
Audio Chip
Realtek ALC897
Parallel processing technology support
Not supported
TPM connector
Yes
12V power connector
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Memory slots type
DIMM
Ethernet interface type
Gigabit Ethernet
DVI-D ports quantity
0
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
Motherboard form factor
micro ATX
Motherboard chipset family
Intel
Number of memory slots
2
Processor socket
LGA 1700
Supported processor sockets
LGA 1700
Supported memory types
DDR4-SDRAM
Supported memory clock speed (max)
3200 MHz
USB 2.0 connectors
4
Maximum number of SMP processors
1
Cables included
SATA
Number of chassis fan connectors
1
Drivers included
Yes
Motherboard chipset
Intel H610
Height
65 mm
Weight
760 g
System Management BIOS (SMBIOS) version
3.4
Supported memory clock speeds
2133,2666,2933,3000,3200 MHz
Compatible processor series
Intel Core™ i9
PCI
1
Serial-or-Paralel
Yes/No
Onboard-CPU
No
