NOU

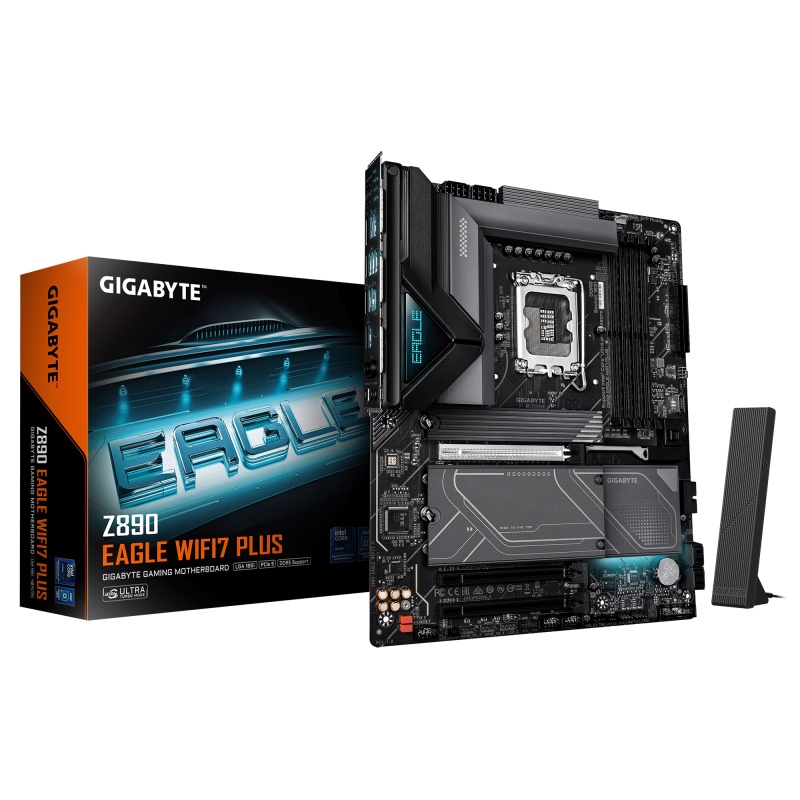

Placa de baza Gigabyte Z890 EAGLE WIFI7 PLUS, Socket 1851, DDR5, ATX
1.494,00 RON
(TVA inclus)
Livrare 1-3 zile lucratoare
Cost livrare - 25 lei
Cum te putem ajuta?
Descriere
Placa de baza GIGABYTE Z890 EAGLE WIFI7 P
Detalii
SKU
Z890 EAGLE WIFI7 P
Categorii
Brand
Product colour
Black
BLUETOOTH
Yes
Processor manufacturer
Intel
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Memory channels
Dual-channel
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Headphone outputs
1
Wi-Fi
Yes
Component for
PC
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
DisplayPorts quantity
1
Warranty period
3 year(s)
Products per shipping (inner) case
1 pc(s)
VGA (D-Sub) ports quantity
0
Country of origin
China
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Wi-Fi standards
Wi-Fi 7 (802.11be)
Bluetooth version
5.4
HDMI ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
PCI Express x16 (Gen 5.x) slots
1
Line-in
Yes
USB4 Gen 3x2 ports quantity
1
USB 2.0 ports quantity
4
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Clear CMOS button
Yes
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
1st M.2 largest key size
25110
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
2nd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
22110
3rd M.2 highest PCI Express generation
4.0
Motherboard form factor
ATX
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
DirectX version
12.0
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
Number of water pump connectors
2
RGB LED pin header
Yes
Number of RGB LED pin headers
4
12V power connector
Yes
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory
256 GB
Maximum internal memory per slot
64 GB
ECC сompatibility
Non-ECC
Antenna included
Yes
Batteries included
Yes
Screws included
Yes
Package height
80 mm
DVI-D ports quantity
0
WiFi-AP antenna jack
2
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
RAID support
Yes
Width
305 mm
Depth
244 mm
Height
35 mm
MB-Format
ATX
RAM-Slots
4
USB3
4-8
Motherboard chipset family
Intel
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
RAID levels
0, 1, 5, 10
DisplayPort version
2.1
Processor socket
LGA 1851 (Socket V1)
Supported processor sockets
LGA 1851
Compatible processor series
Intel Core Ultra (Series 2)
MB-Socket
LGA1851
PCI-Ex1
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Number of chassis fan connectors
4
Audio Chip
Realtek ALC1220
Thunderbolt headers
2
Number of EPS power connectors (8-pin)
2
Windows operating systems supported
Windows 11 x64
4th M.2 highest PCI Express generation
4.0
Number of M.2 (M) slots
4
S/PDIF out port
Yes
Digital audio optical out
1
Number of storage drives supported
4
PCI-Ex16
3
Package width
345 mm
Motherboard chipset
Intel Z890
Number of HDDs supported
8
Thunderbolt ports quantity
2
PCI Express x16 (Gen 4.x) slots
2
4th M.2 largest key size
22110
Package depth
294 mm
Maximum resolution
3840 x 2160 pixels
BIOS memory size
512 Mbit
Bundled software
Norton Internet Security (OEM version)
LAN controller
Realtek RTL8125D
Ethernet interface type
2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Battery capacity
220 mAh
Package weight
2.92 kg
Supported memory clock speed (max)
9466 MHz
Weight
2.51 kg
WLAN controller model
Intel WIFI 7 BE202NGW M
PCI
0
Serial-or-Paralel
Yes/No
Onboard-CPU
No
Cooling type
Passive
