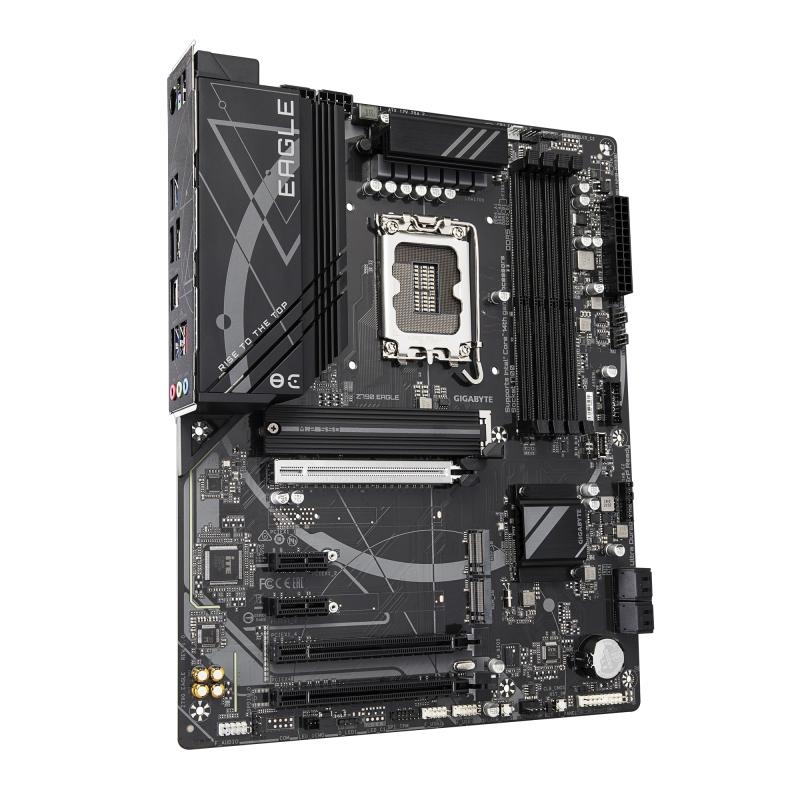

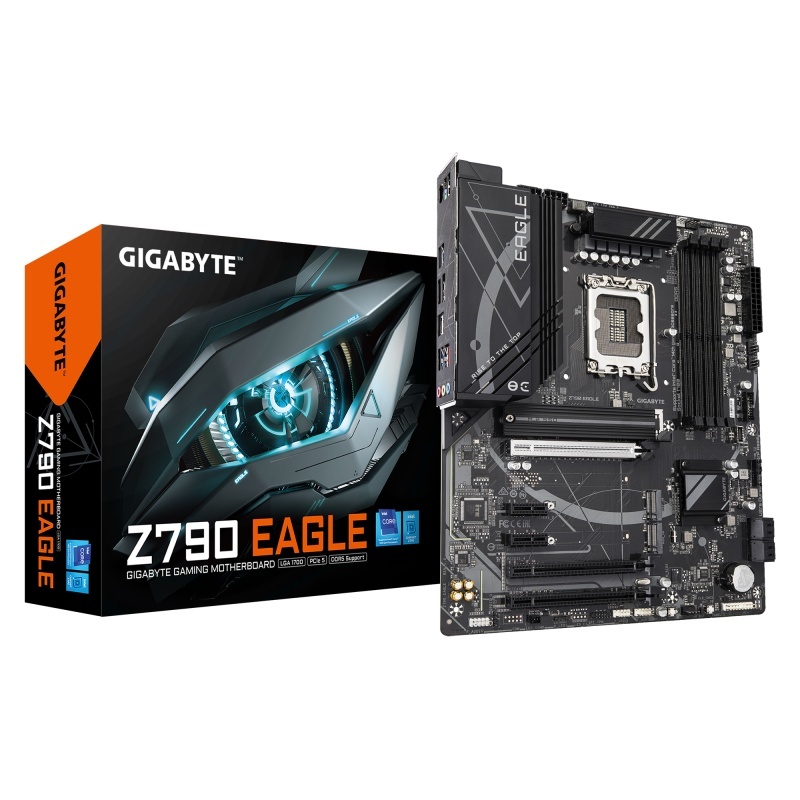

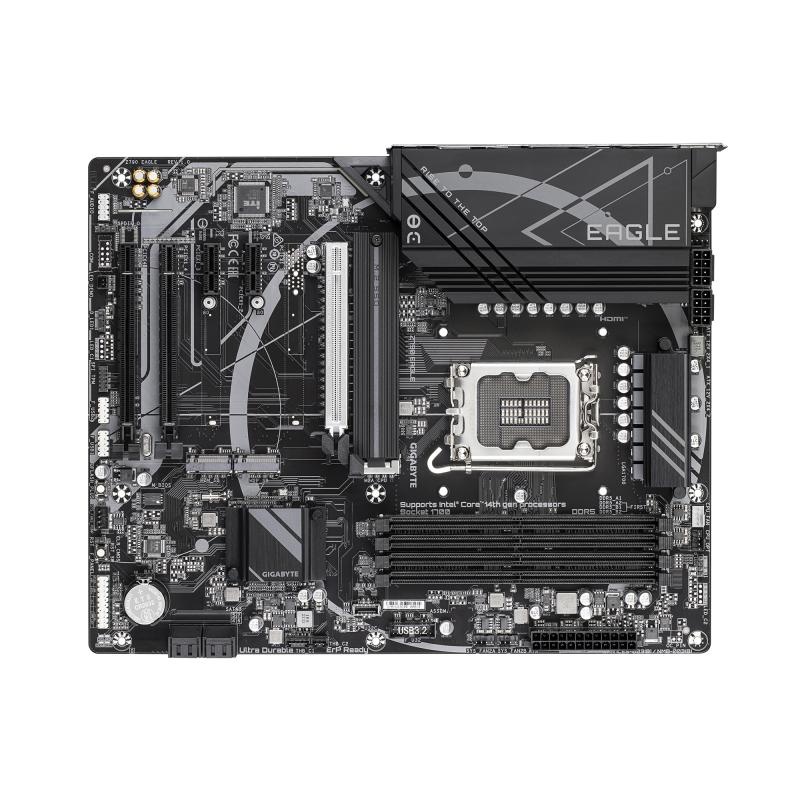

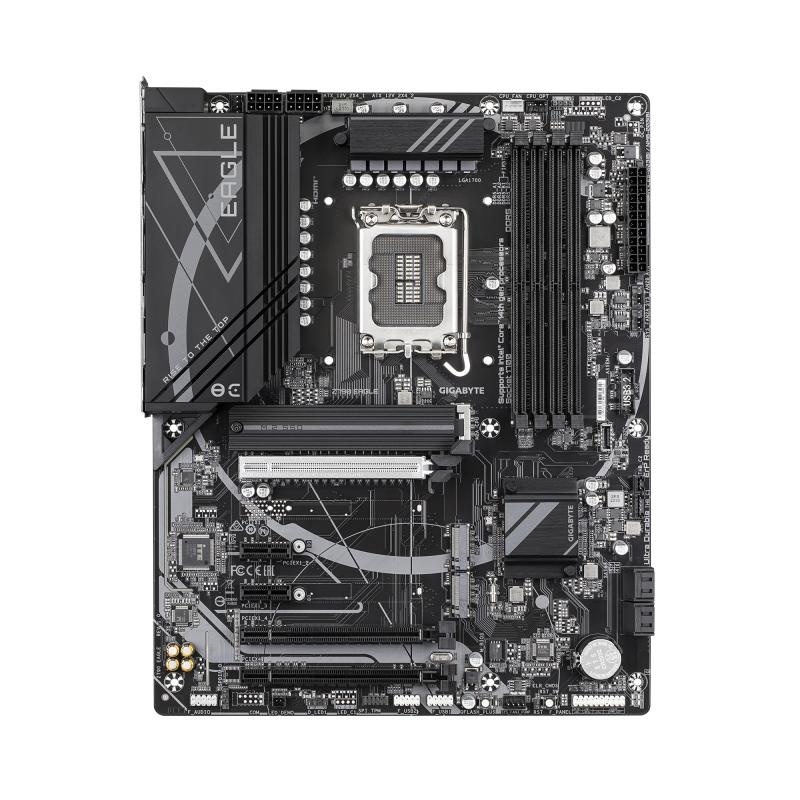

Placa de bază Gigabyte Z790 EAGLE LGA1700
989,00 RON
(TVA inclus)
Livrare 1-3 zile lucratoare /
Cost livrare - 25 lei
Cum te putem ajuta?
Detalii
SKU
Z790 EAGLE
Categorii
Brand
Product colour
Black
Processor manufacturer
Intel

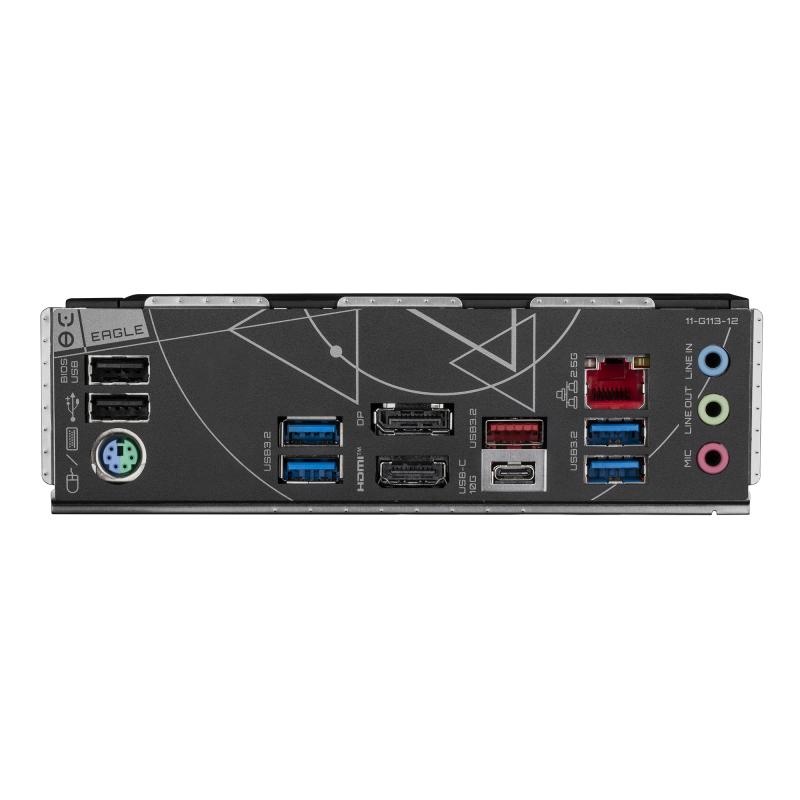

Ethernet LAN
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Memory channels
Dual-channel
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Headphone outputs
1
Component for
PC
HDCP
Yes
DisplayPorts quantity
1
Warranty period
3 year(s)
Products per shipping (inner) case
1 pc(s)
VGA (D-Sub) ports quantity
0
Wi-Fi
No
DisplayPort version
1.2
Country of origin
China
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 (Gen 5.x) slots
1
Line-in
Yes
PCI Express x16 (Gen 4.x) slots
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 2.0 ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
Number of M.2 (M) slots
3
2nd M.2 highest PCI Express generation
4.0
3rd M.2 highest PCI Express generation
4.0
Motherboard form factor
ATX
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Audio output channels
7.1 channels
Audio Chip
Realtek ALC897
Parallel processing technology support
Not supported
DirectX version
12.0
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
Number of water pump connectors
2
RGB LED pin header
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory
256 GB
Maximum internal memory per slot
64 GB
Supported memory clock speed (max)
7600 MHz
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
Batteries included
Yes
Screws included
Yes
Package width
335 mm
Package depth
270 mm
Package height
80 mm
DVI-D ports quantity
0
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Number of storage drives supported
7
Supported storage drive interfaces
M.2, SATA III
RAID support
Yes
Width
305 mm
Depth
244 mm
Height
35 mm
1st M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
2280
Motherboard chipset family
Intel
USB 2.0 connectors
2
S/PDIF out connector
Yes
ECC сompatibility
ECC & Non-ECC
Processor socket
LGA 1700
Supported processor sockets
LGA 1700
RAID levels
0, 1, 5, 10
Number of RGB LED pin headers
2
PS/2 ports quantity
1
1st M.2 largest key size
22110
Ethernet interface type
2.5 Gigabit Ethernet
Number of chassis fan connectors
4
3rd M.2 largest key size
2280
PCI Express x16 (Gen 3.x) slots
1
Motherboard chipset
Intel Z790
Maximum resolution
4096 x 2304 pixels
Thunderbolt headers
2
Number of EPS power connectors (8-pin)
2
Supported memory clock speeds
7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,4800,4400 MHz
LAN controller
Realtek RTL8125
Package weight
1.79 kg
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
