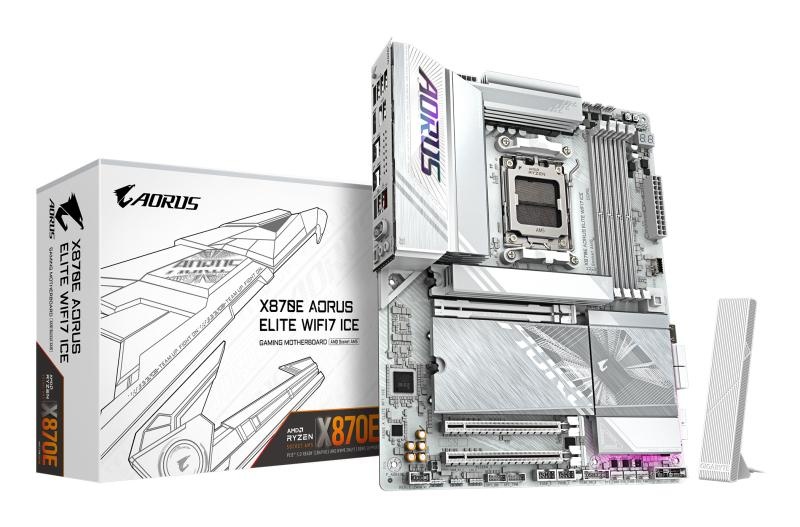

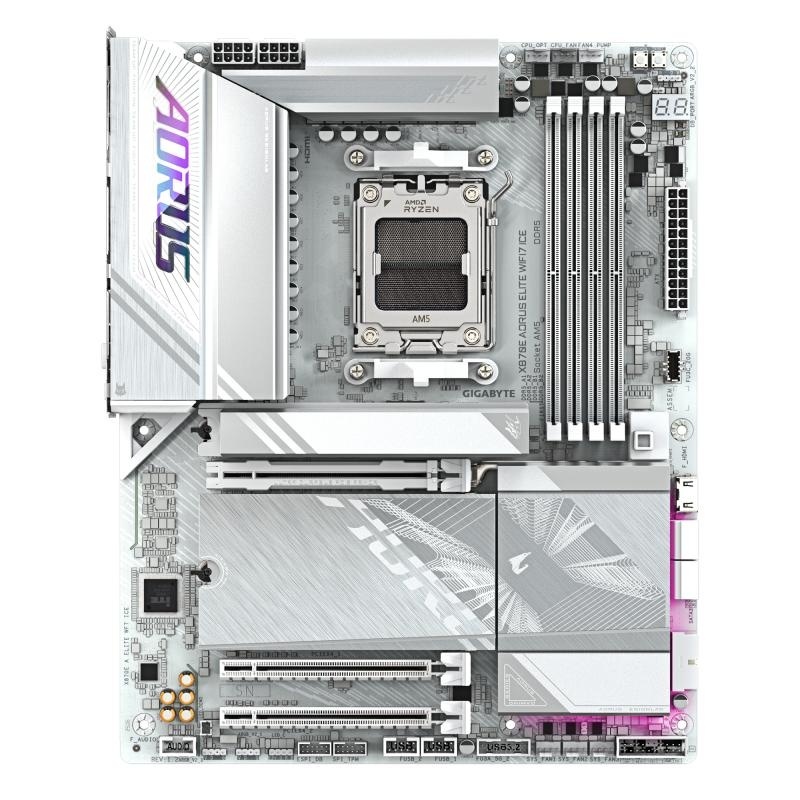

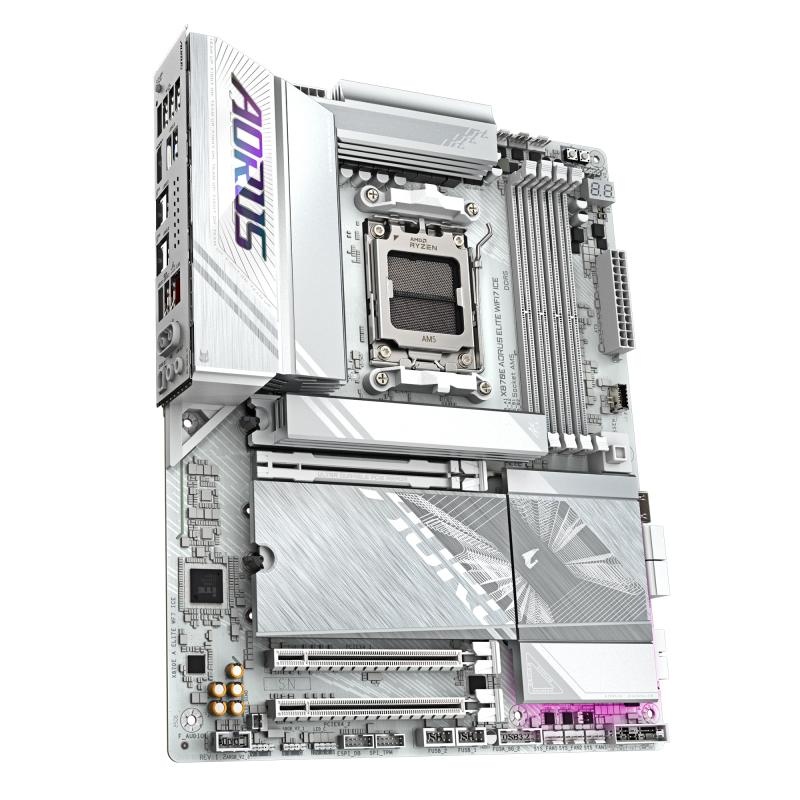

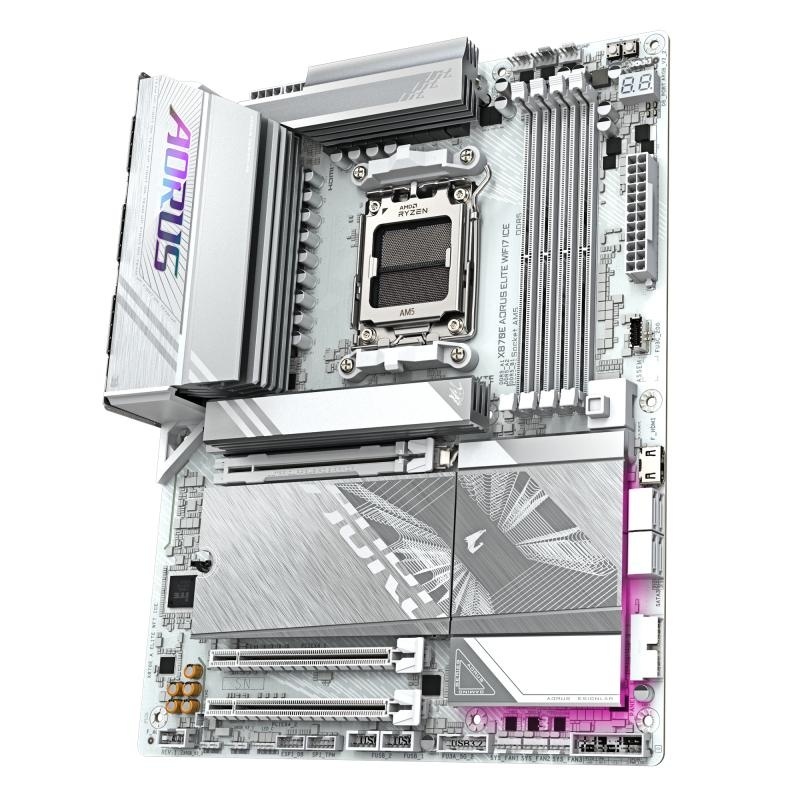

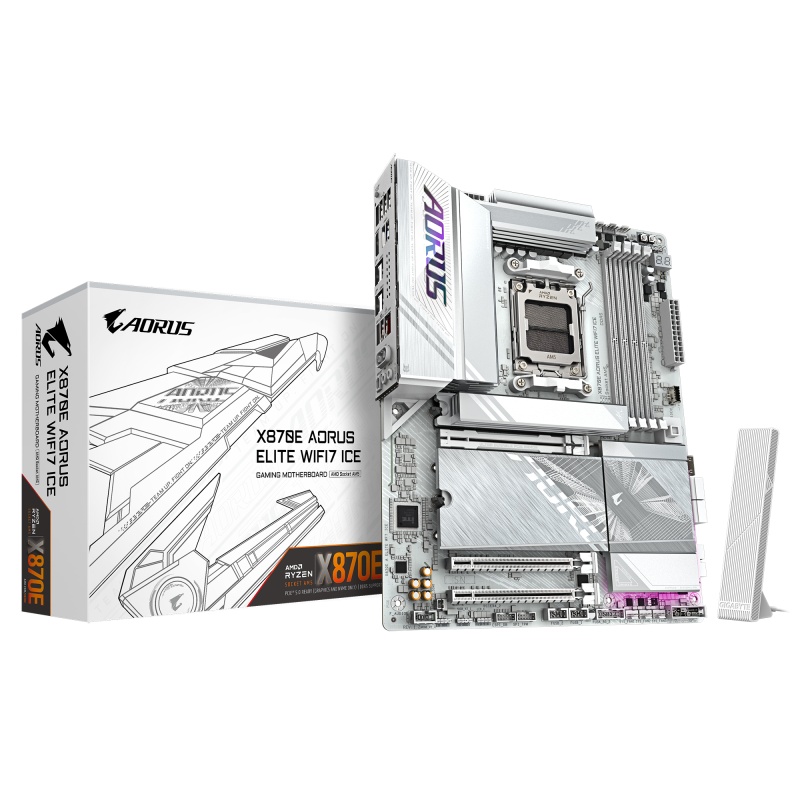

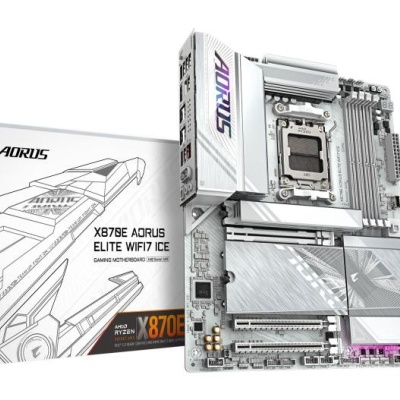

Placa de bază Gigabyte X870E AORUS ELITE WIFI7 ICE AM5
1.805,00 RON
(TVA inclus)
Livrare 1-3 zile lucratoare /
Cost livrare - 25 lei
Cum te putem ajuta?
Detalii
SKU
X870E A ELITE WF7 ICE
Categorii
Brand
Product colour
White
BLUETOOTH
Yes
Ethernet LAN
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Memory channels
Dual-channel
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Headphone outputs
1
Wi-Fi
Yes
Processor manufacturer
AMD
Component for
PC
Microphone in
Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
DisplayPort version
1.4
HDCP
Yes
Warranty period
3 year(s)
Products per shipping (inner) case
1 pc(s)
VGA (D-Sub) ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Wi-Fi standards
Wi-Fi 7 (802.11be)
Bluetooth version
5.4
PCI Express x16 (Gen 5.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
1st M.2 largest key size
25110
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
3rd M.2 largest key size
22110
Motherboard form factor
ATX
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Motherboard chipset family
AMD
Audio output channels
7.1 channels
Parallel processing technology support
Not supported
DirectX version
12.0
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
Number of water pump connectors
2
RGB LED pin header
Yes
Number of RGB LED pin headers
4
12V power connector
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory
256 GB
Maximum internal memory per slot
64 GB
ECC сompatibility
Non-ECC
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
Antenna included
Yes
Batteries included
Yes
Screws included
Yes
Package height
80 mm
DVI-D ports quantity
0
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
WiFi-AP antenna jack
2
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
RAID support
Yes
Width
305 mm
Depth
244 mm
Height
35 mm
MB-Format
ATX
RAM-Slots
4
MB-Socket
AM5
USB3
4-8
USB 2.0 connectors
2
RAID levels
0, 1, 5, 10
PCI-Ex1
0
Ethernet interface type
2.5 Gigabit Ethernet
Number of chassis fan connectors
4
On-board graphics card
No
2nd M.2 highest PCI Express generation
5.0
USB 3.2 Gen 2x2 connectors
1
WLAN controller model
Realtek RTL8922AE
PCI Express x16 (Gen 3.x) slots
1
Number of EPS power connectors (8-pin)
2
LAN controller
Realtek RTL8125
Windows operating systems supported
Windows 11 x64
Supported memory clock speed (max)
8200 MHz
4th M.2 highest PCI Express generation
4.0
Number of M.2 (M) slots
4
Number of storage drives supported
8
Motherboard chipset
AMD X870E
S/PDIF out port
Yes
Digital audio optical out
1
PCI-Ex16
3
Package width
345 mm
USB4 Gen 2x2 ports quantity
2
Audio Chip
Realtek ALC1220-VB
3rd M.2 highest PCI Express generation
5.0
4th M.2 largest key size
22110
Supported memory clock speeds
8200,8000,7800,7600,7200,7000,6800,6666,6600,6400,6200,6000,5600,5200,4800,4400 MHz
Weight
2.64 kg
Package weight
2.64 kg
Package depth
294 mm
Supported storage drive interfaces
M.2, PCI Express 5.0, SATA III
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Cooling type
Passive
