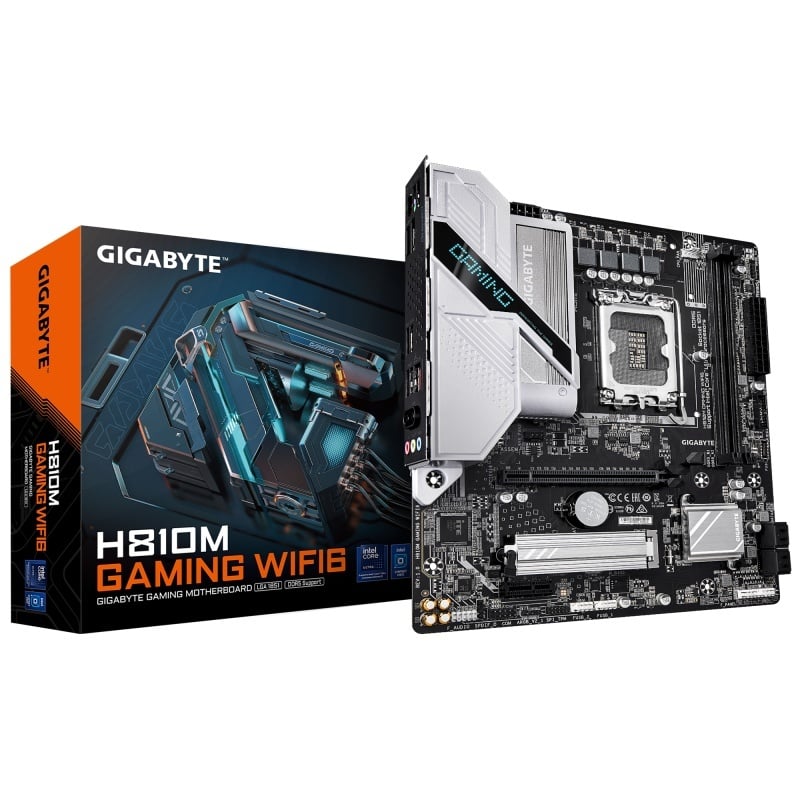

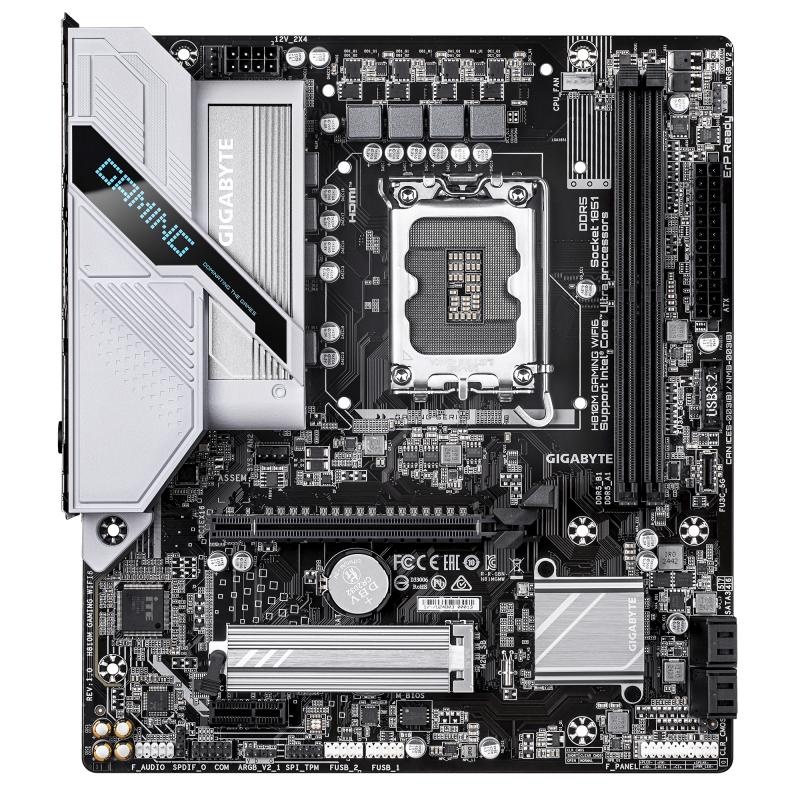

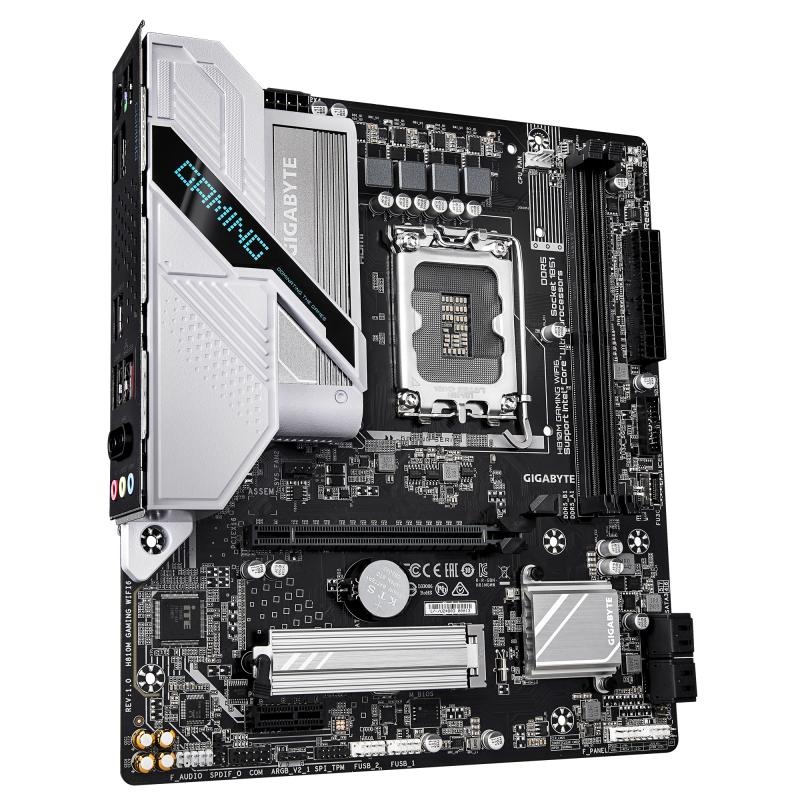

Placa de bază Gigabyte H810M GAMING WIFI6 LGA1851
659,00 RON
(TVA inclus)
Livrare 1-3 zile lucratoare /
Cost livrare - 25 lei
Cum te putem ajuta?
Detalii
SKU
H810M GAMING WIFI6
Categorii
Brand
BLUETOOTH
Yes
Bluetooth version
5.3
Processor manufacturer
Intel
Ethernet LAN
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Memory channels
Dual-channel
Depth
215 mm
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Headphone outputs
1
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
Maximum internal memory
128 GB
Wi-Fi
Yes
Component for
PC
Microphone in
Yes
HDCP
Yes
DisplayPorts quantity
1
Warranty period
3 year(s)
Products per shipping (inner) case
1 pc(s)
VGA (D-Sub) ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Package weight
11.9 kg
Line-in
Yes
PCI Express x16 (Gen 4.x) slots
1
PCI Express x1 (Gen 3.x) slots
1
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Audio output channels
7.1 channels
Audio Chip
Realtek ALC897
Parallel processing technology support
Not supported
DirectX version
12.0
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
TPM connector
Yes
RGB LED pin header
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Serial port headers
1
Number of EPS power connectors (8-pin)
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory per slot
64 GB
WLAN controller model
Realtek RTL8851BE
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
Antenna included
Yes
Batteries included
Yes
Screws included
Yes
DVI-D ports quantity
0
WiFi-AP antenna jack
2
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
RAID support
Yes
Height
35 mm
USB3
4-8
Product colour
Dark brown
1st M.2 highest PCI Express generation
4.0
1st M.2 largest key size
2280
Motherboard form factor
micro ATX
Motherboard chipset family
Intel
USB 2.0 connectors
2
Number of chassis fan connectors
2
Number of CPU fan connectors
1
S/PDIF out connector
Yes
Number of memory slots
2
ECC сompatibility
ECC & Non-ECC
RAID levels
0, 1, 5, 10
MB-Format
micro-ATX
RAM-Slots
2
PCI-Ex16
1
Number of M.2 (M) slots
1
Motherboard chipset
Intel H810
Number of RGB LED pin headers
2
Supported memory clock speed (max)
6400 MHz
Supported memory clock speeds
5600,6400 MHz
DisplayPort version
2.1
Processor socket
LGA 1851 (Socket V1)
Supported processor sockets
LGA 1851
Compatible processor series
Intel Core Ultra (Series 2)
PS/2 ports quantity
1
USB 2.0 ports quantity
5
Number of storage drives supported
5
Supported storage drive interfaces
M.2, PCI Express 4.0, SATA III
Width
244 mm
MB-Socket
LGA1851
PCI-Ex1
0
Ethernet interface type
2.5 Gigabit Ethernet
Package height
68 mm
LAN controller
Realtek RTL8125
Package width
270 mm
Package depth
268 mm
Weight
1.1 kg
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Cooling type
Passive
