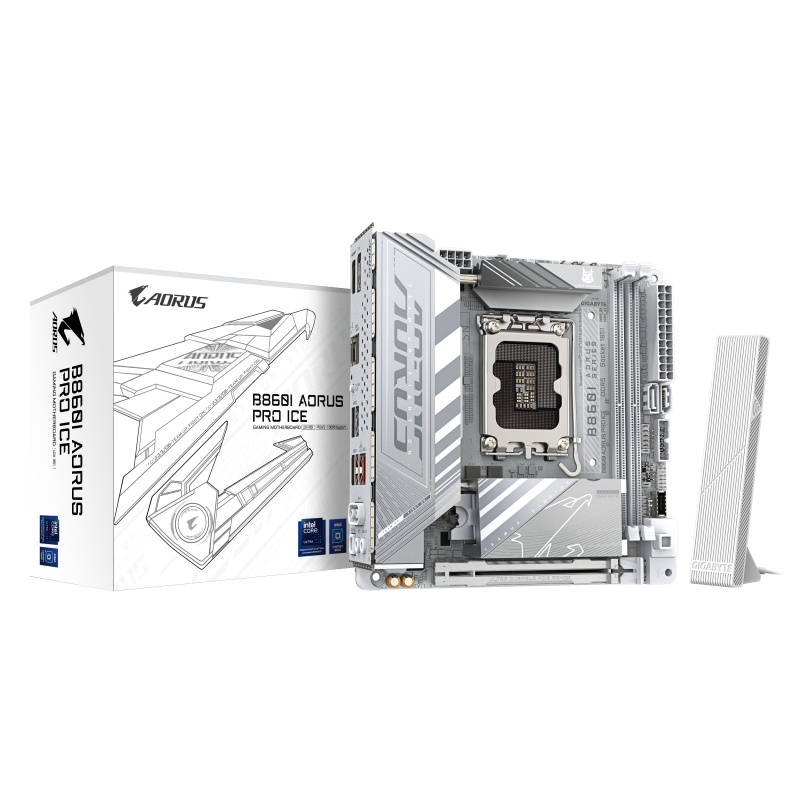

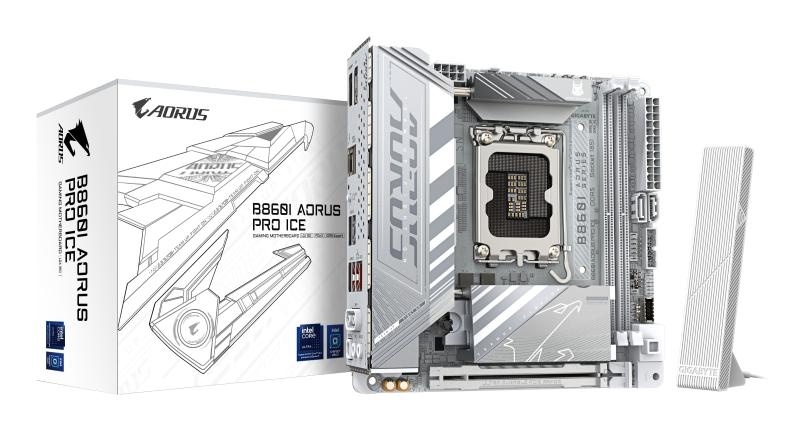

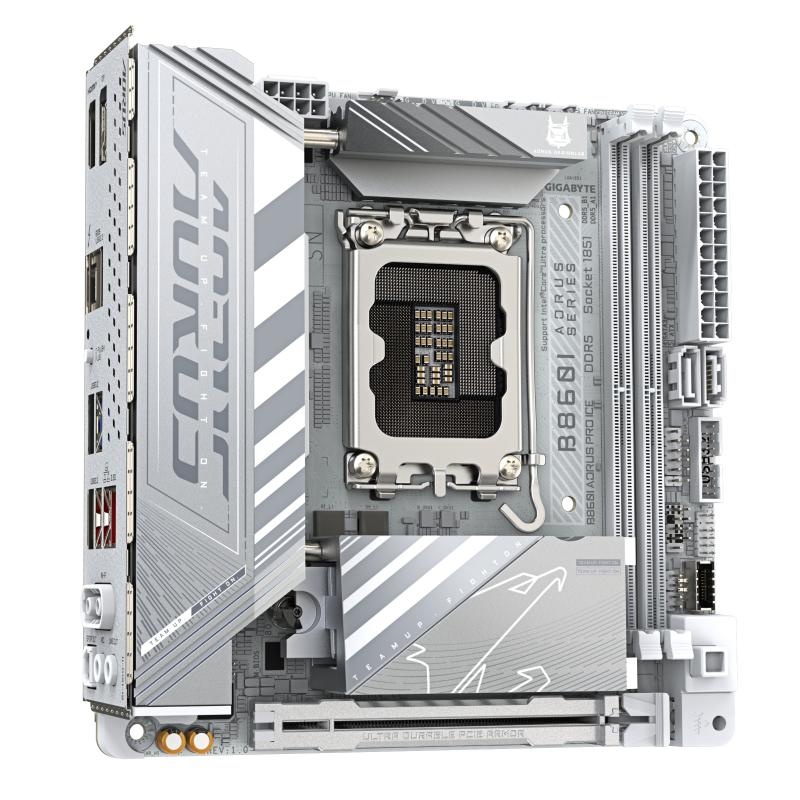

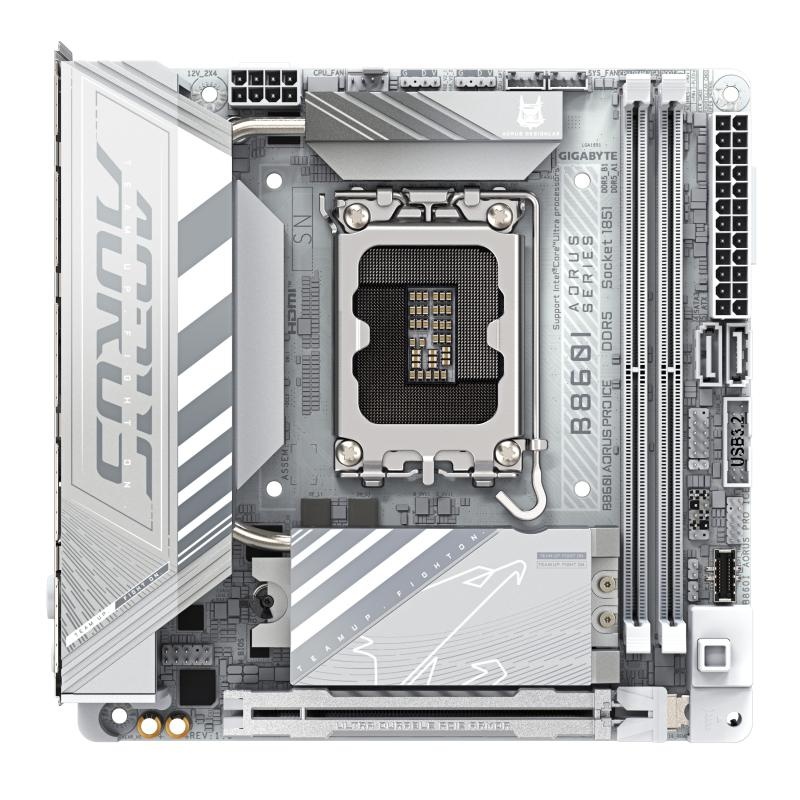

Placa de Baza GIGABYTE B860I AORUS PRO ICE LGA1851, 2x DDR5, 1x Intel Thunderbolt 1x DP 1x HDMI, 1x PCIE 5.0 x16, 2x M.2, 2x SATA 6GB/s, mini- ITX
1.507,00 RON
(TVA inclus)
Costurile de livrare nu sunt incluse
Cum te putem ajuta?
Detalii
SKU
B860I AORUS PRO ICE
Categorii
Brand
Product colour
White
BLUETOOTH
Yes
Processor manufacturer
Intel
Ethernet LAN
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Memory channels
Dual-channel
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Headphone outputs
1
Maximum internal memory
128 GB
Wi-Fi
Yes
Component for
PC
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
HDCP
Yes
DisplayPorts quantity
1
Warranty period
3 year(s)
Products per shipping (inner) case
1 pc(s)
VGA (D-Sub) ports quantity
0
Thunderbolt
Da
Country of origin
China
USB 2.0 ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Bluetooth version
5.4
PCI Express x16 (Gen 5.x) slots
1
Line-in
Yes
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
1st M.2 highest PCI Express generation
5.0
2nd M.2 highest PCI Express generation
4.0
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Audio output channels
7.1 channels
Audio Chip
Realtek ALC897
Parallel processing technology support
Not supported
DirectX version
12.0
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
RGB LED pin header
Yes
Number of EPS power connectors (8-pin)
1
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory per slot
64 GB
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
Antenna included
Yes
Batteries included
Yes
Screws included
Yes
DVI-D ports quantity
0
WiFi-AP antenna jack
2
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
RAID support
Yes
Height
35 mm
Number of M.2 (M) slots
2
1st M.2 largest key size
2280
2nd M.2 largest key size
2280
Motherboard chipset family
Intel
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of memory slots
2
ECC сompatibility
ECC & Non-ECC
RAID levels
0, 1, 5, 10
Number of RGB LED pin headers
2
USB 2.0 connectors
1
DisplayPort version
2.1
Processor socket
LGA 1851 (Socket V1)
Supported processor sockets
LGA 1851
Number of water pump connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Ethernet interface type
2.5 Gigabit Ethernet
Chipset audio integrat
Realtek
Tip Memorie
DDR5
Sloturi M.2
2
Numar sloturi memorie
2
LAN controller
Realtek RTL8125
Motherboard chipset
Intel B860
Compatible processor series
Intel Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
Windows operating systems supported
Windows 11 x64
S/PDIF out port
Yes
Supported memory clock speed (max)
9200 MHz
Thunderbolt ports quantity
1
Motherboard form factor
mini ITX
Maximum resolution
5120 x 2880 pixels
Number of displays supported
3
Number of chassis fan connectors
1
Number of SATA III connectors
2
Supported memory clock speeds
5600,6400,9200 MHz
WLAN controller model
MediaTek MT7925
Weight
1.3 kg
Package width
235 mm
Package height
95 mm
Package depth
227 mm
Digital audio optical out
1
Number of HDDs supported
2
Number of storage drives supported
4
Format
Mini-ITX
Soclu Procesor
Socket 1851
Tip slot interfata grafica
PCIe 5.0 x16
Model Chipset
B860
Width
170 mm
Depth
170 mm
HDMI
Da
Cooling type
Passive
Gaming
Nu
