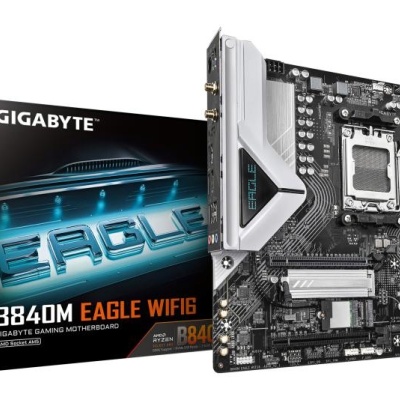

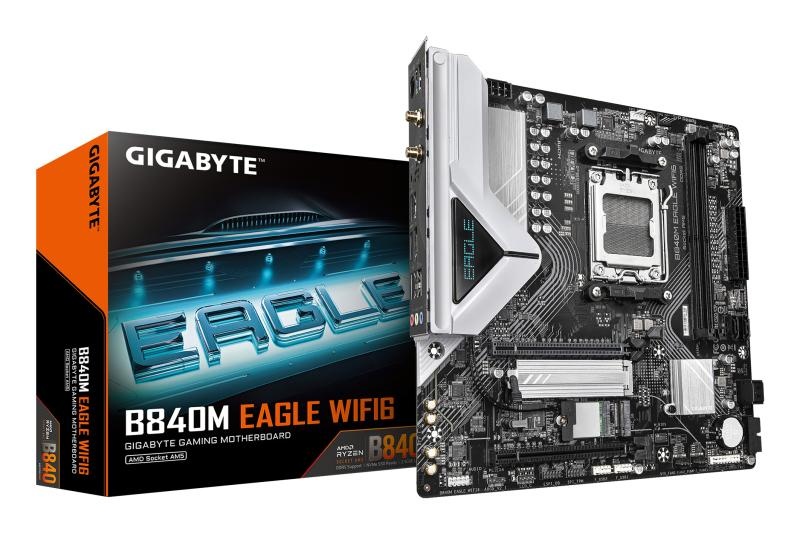

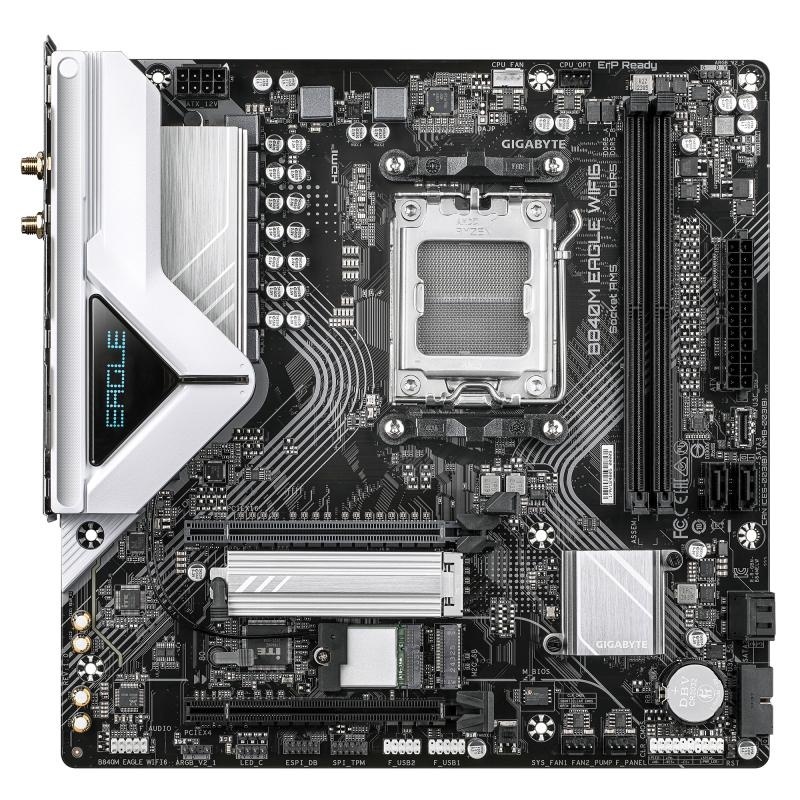

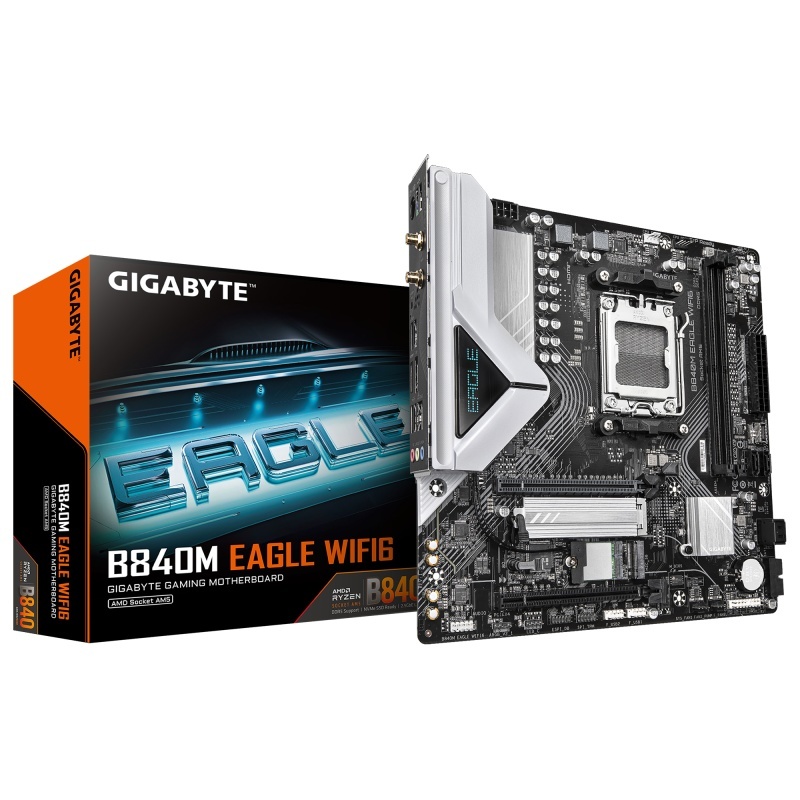

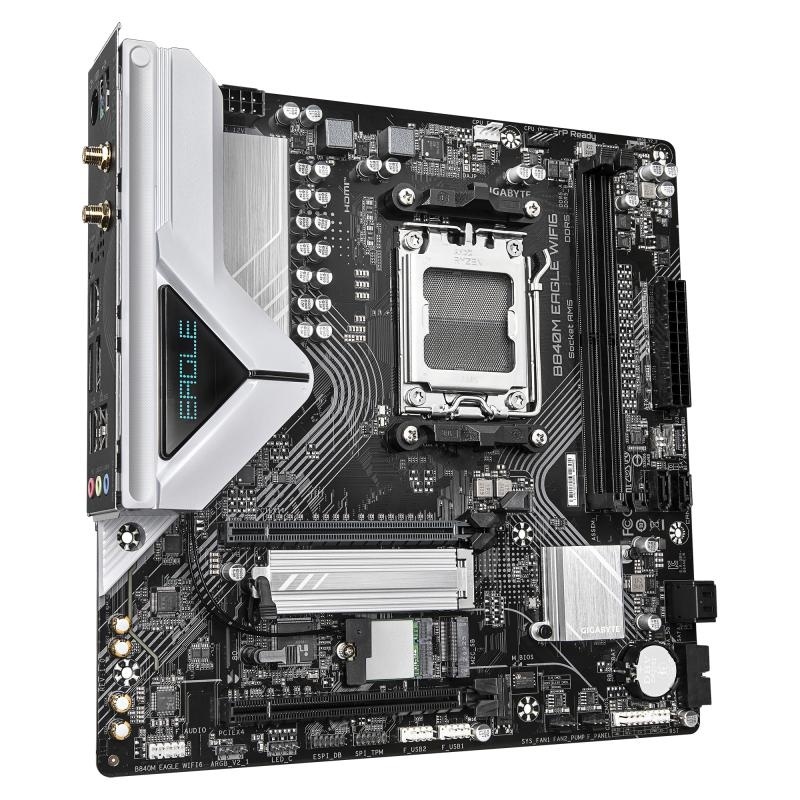

Placa de bază Gigabyte B840M EAGLE WIFI6 AM5
683,00 RON
(TVA inclus)
Livrare 1-3 zile lucratoare /
Cost livrare - 25 lei
Cum te putem ajuta?
Detalii
SKU
B840M EAGLE WIFI6
Categorii
Brand
BLUETOOTH
Yes
Bluetooth version
5.3
Ethernet LAN
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Memory channels
Dual-channel
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Headphone outputs
1
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Maximum internal memory
128 GB
Wi-Fi
Yes
Processor manufacturer
AMD
Component for
PC
Microphone in
Yes
DisplayPort version
1.4
HDCP
Yes
DisplayPorts quantity
1
Warranty period
3 year(s)
Products per shipping (inner) case
1 pc(s)
VGA (D-Sub) ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Line-in
Yes
PCI Express x16 (Gen 4.x) slots
1
USB 2.0 ports quantity
4
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Motherboard chipset family
AMD
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Audio output channels
7.1 channels
Audio Chip
Realtek ALC897
Parallel processing technology support
Not supported
DirectX version
12.0
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
Number of water pump connectors
2
RGB LED pin header
Yes
12V power connector
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Number of EPS power connectors (8-pin)
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory per slot
64 GB
Supported memory clock speed (max)
7600 MHz
ECC сompatibility
Non-ECC
WLAN controller model
Realtek RTL8851BE
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
Antenna included
Yes
Batteries included
Yes
Screws included
Yes
DVI-D ports quantity
0
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
WiFi-AP antenna jack
2
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
RAID support
Yes
RAID levels
0, 1, 10
Depth
244 mm
Height
35 mm
RAM-Slots
4
MB-Socket
AM5
USB3
4-8
Product colour
Dark brown
Number of M.2 (M) slots
2
1st M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
2280
Motherboard form factor
micro ATX
USB 2.0 connectors
2
Number of chassis fan connectors
2
Number of memory slots
2
Number of storage drives supported
6
MB-Format
micro-ATX
PS/2 ports quantity
1
Supported storage drive interfaces
M.2, PCI Express 4.0, SATA III
Width
244 mm
2nd M.2 highest PCI Express generation
3.0
PCI-Ex1
0
Ethernet interface type
2.5 Gigabit Ethernet
PCI-Ex16
2
Motherboard chipset
AMD B840
Package height
68 mm
PCI Express x16 (Gen 3.x) slots
1
LAN controller
Realtek RTL8125
Number of RGB LED pin headers
3
Package width
270 mm
1st M.2 largest key size
2580
Package depth
268 mm
Supported memory clock speeds
7600,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz
Weight
1.22 kg
Package weight
1.31 kg
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Cooling type
Passive
