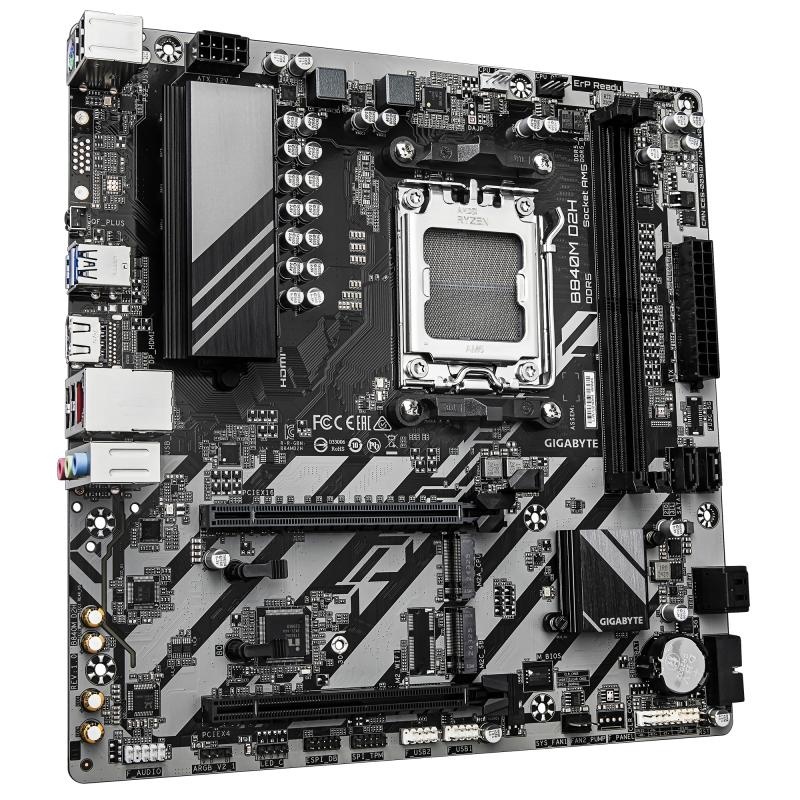

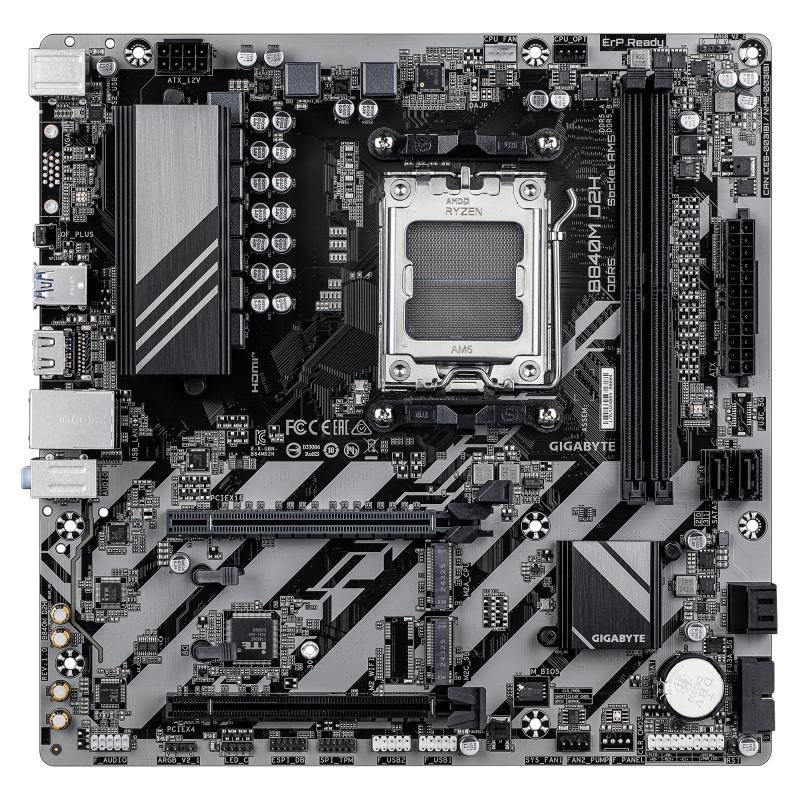

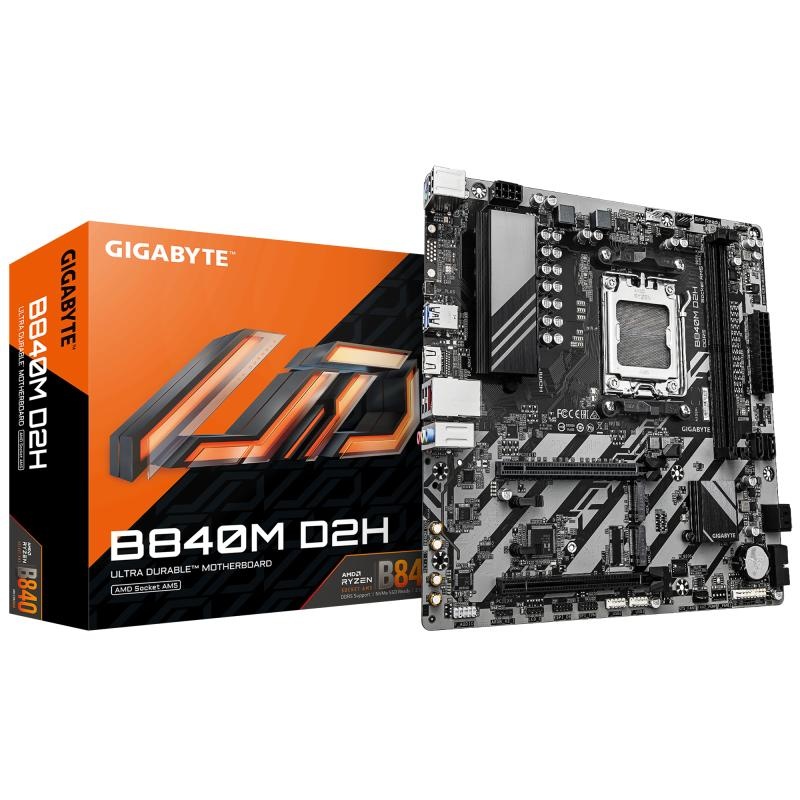

Placa de bază Gigabyte B840M D2H AM5
512,00 RON
(TVA inclus)
Livrare 1-3 zile lucratoare /
Cost livrare - 25 lei
Cum te putem ajuta?
Detalii
SKU
B840M D2H
Categorii
Brand
Ethernet LAN
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Memory channels
Dual-channel
Headphone outputs
1
Maximum internal memory
128 GB
Processor manufacturer
AMD
Component for
PC
Microphone in
Yes
HDCP
Yes
Warranty period
3 year(s)
Products per shipping (inner) case
1 pc(s)
VGA (D-Sub) ports quantity
0
Wi-Fi
No
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Line-in
Yes
PCI Express x16 (Gen 4.x) slots
1
USB 2.0 ports quantity
4
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Motherboard chipset family
AMD
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Audio output channels
7.1 channels
Audio Chip
Realtek ALC897
Parallel processing technology support
Not supported
DirectX version
12.0
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
RGB LED pin header
Yes
Number of EPS power connectors (8-pin)
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory per slot
64 GB
Supported memory clock speed (max)
7600 MHz
ECC сompatibility
Non-ECC
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
Batteries included
Yes
Screws included
Yes
DVI-D ports quantity
0
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
RAID support
Yes
RAID levels
0, 1, 10
Depth
244 mm
Height
35 mm
MB-Socket
AM5
USB3
4-8
Product colour
Dark brown
Number of M.2 (M) slots
2
1st M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
2280
Motherboard form factor
micro ATX
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of memory slots
2
Package depth
265 mm
Package height
54 mm
Package width
265 mm
Number of storage drives supported
6
MB-Format
micro-ATX
RAM-Slots
2
PS/2 ports quantity
1
Supported storage drive interfaces
M.2, PCI Express 4.0, SATA III
Width
244 mm
2nd M.2 highest PCI Express generation
3.0
Number of water pump connectors
1
PCI-Ex1
0
Ethernet interface type
2.5 Gigabit Ethernet
PCI-Ex16
2
Motherboard chipset
AMD B840
PCI Express x16 (Gen 3.x) slots
1
LAN controller
Realtek RTL8125
Number of RGB LED pin headers
3
1st M.2 largest key size
2580
Number of chassis fan connectors
1
Supported memory clock speeds
7600,7200,7000,6800,6666,6600,6400,6200,6000,5600,5200,4800,4400 MHz
Weight
940 g
Package weight
1.03 kg
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Cooling type
Passive
