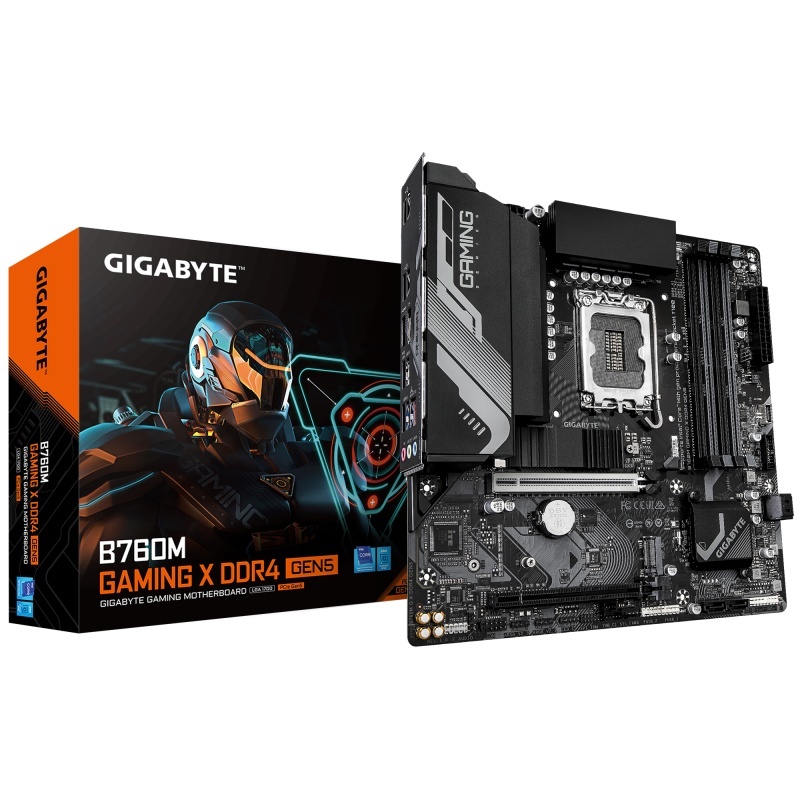

PLaca de baza Gigabyte B760M GAMING X DDR4 LGA1700

687,00 RON (TVA inclus)
Livrare 1-3 zile lucratoare Cost livrare - 25 lei
Cumpara acum, plateste mai tarziu de la 16,35 RON / Luna Detalii aici
Cod produs - SKU B760M G X DDR4 GEN5
Produsul nu mai este disponibil in magazinul nostru.
Adauga la Favorite
Cum te putem ajuta?
Suna-ne: 0739 552 100 (Luni-Vineri, 09.00-18.00)
Cere detalii
Trimite-ne un mesaj

Detalii

SKU
B760M G X DDR4 GEN5
Categorii
Placi de baza
Brand
GIGABYTE
Processor manufacturer
Intel
Ethernet LAN
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Memory channels
Dual-channel
Headphone outputs
1
Maximum internal memory
128 GB
Component for
PC
Microphone in
Yes
HDCP
Yes
DisplayPorts quantity
1
Warranty period
3 year(s)
Products per shipping (inner) case
1 pc(s)
VGA (D-Sub) ports quantity
0
Wi-Fi
No
DisplayPort version
1.2
Country of origin
China
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
PCI Express x16 (Gen 5.x) slots
1
Line-in
Yes
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
2nd M.2 largest key size
22110
2nd M.2 highest PCI Express generation
4.0
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Audio output channels
7.1 channels
Audio Chip
Realtek ALC897
Parallel processing technology support
Not supported
DirectX version
12.0
Front panel connector
Yes
TPM connector
Yes
RGB LED pin header
Yes
Number of RGB LED pin headers
4
12V power connector
Yes
Serial port headers
1
Number of EPS power connectors (8-pin)
1
Number of chassis fan connectors
3
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Bundled software
Norton Internet Security (OEM version) LAN bandwidth management software
Batteries included
Yes
Screws included
Yes
DVI-D ports quantity
0
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
RAID support
Yes
Depth
244 mm
Height
35 mm
RAM-Slots
4
USB3
4-8
Product colour
Dark brown
Number of M.2 (M) slots
2
1st M.2 highest PCI Express generation
4.0
1st M.2 largest key size
2280
Motherboard chipset
Intel B760
Motherboard form factor
micro ATX
Motherboard chipset family
Intel
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of CPU fan connectors
1
S/PDIF out connector
Yes
ECC сompatibility
ECC & Non-ECC
Processor socket
LGA 1700
Supported processor sockets
LGA 1700
Number of storage drives supported
6
RAID levels
0, 1, 5, 10
MB-Socket
1700
MB-Format
micro-ATX
PCI-Ex16
1
USB 2.0 ports quantity
5
Supported storage drive interfaces
M.2, PCI Express 4.0, SATA III
Width
244 mm
Supported memory types
DDR4-SDRAM
Maximum internal memory per slot
32 GB
Supported memory clock speed (max)
3200 MHz
PCI-Ex1
0
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Ethernet interface type
2.5 Gigabit Ethernet
Package height
68 mm
PCI Express x16 (Gen 3.x) slots
1
Maximum resolution
4096 x 2304 pixels
Thunderbolt headers
2
LAN controller
Realtek RTL8125
Package width
270 mm
Package depth
268 mm
Weight
1.19 kg
Package weight
1.6 kg
Supported memory clock speeds
3200,3000,2933,2666,2400,2133 MHz
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Cooling type
Passive
