NOU

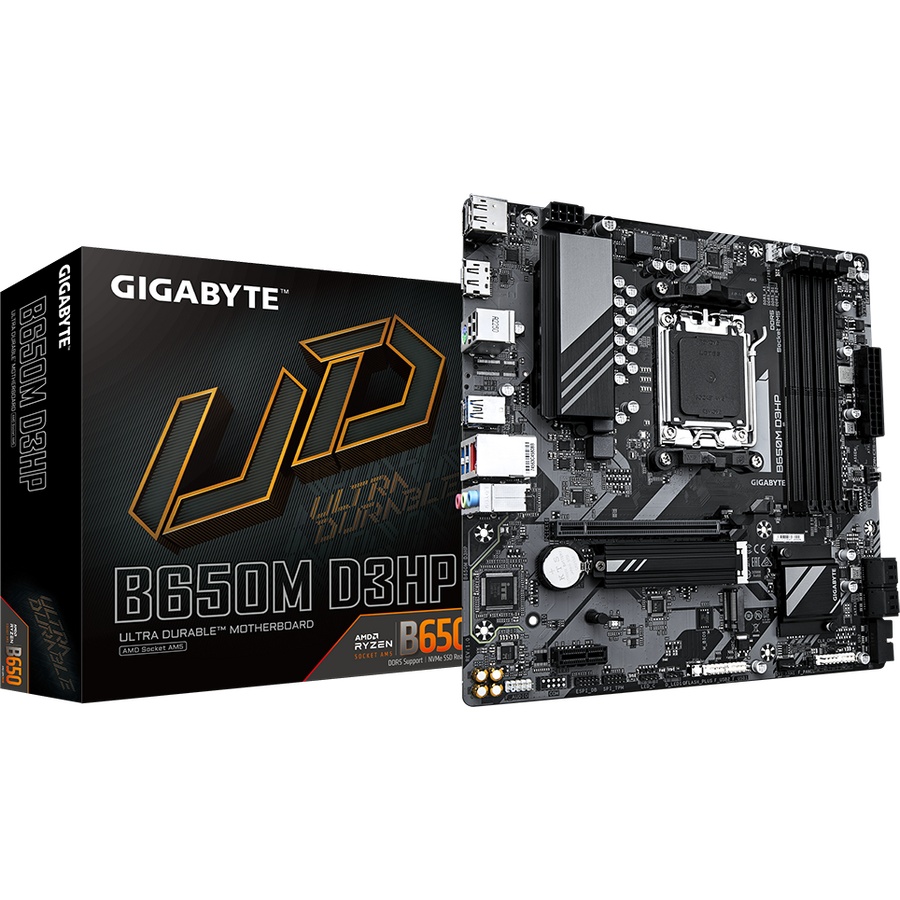

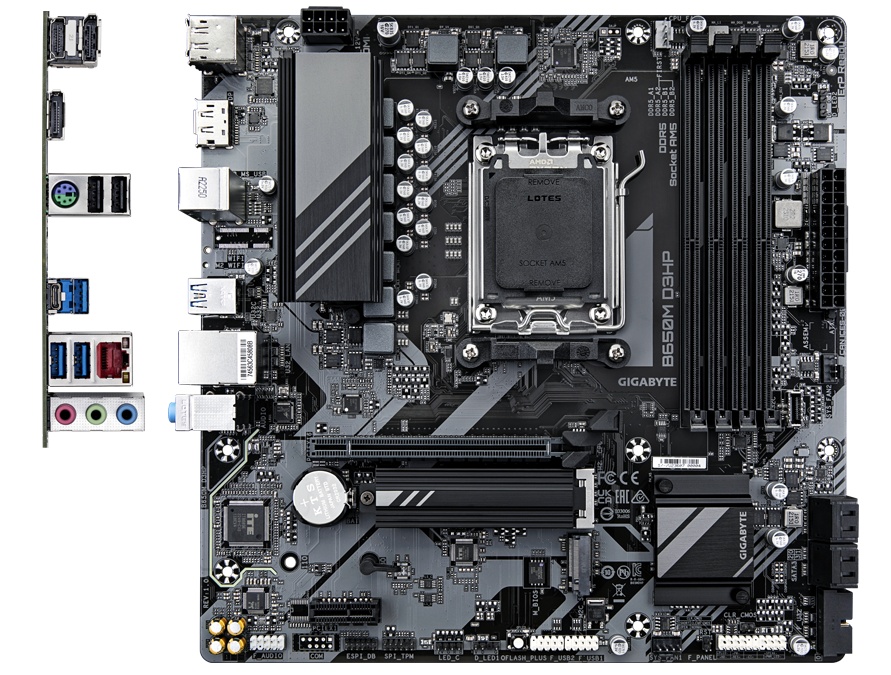

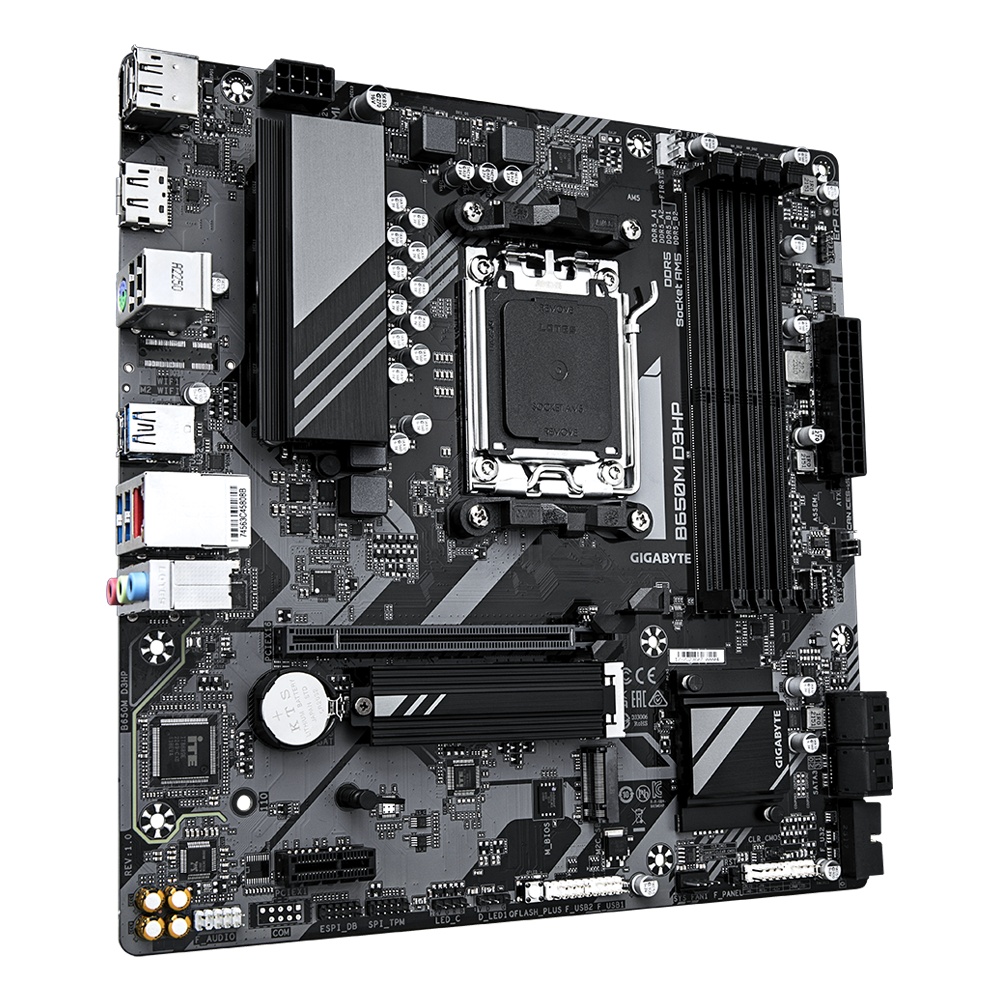

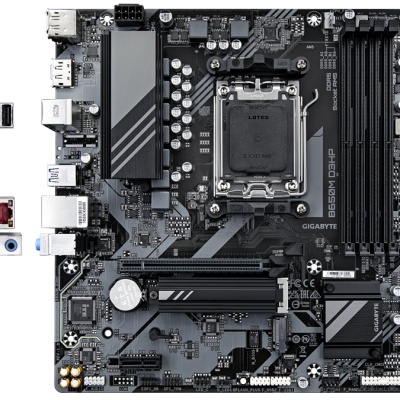

Placa de baza Gigabyte B650M D3HP, Socket AM5, DDR5, Micro-ATX
605,00 RON
(TVA inclus)
Livrare 1-3 zile lucratoare /
Cost livrare - 25 lei
Cum te putem ajuta?
Descriere
Placa de baza GIGABYTE B650M D3HP AMD B650 AM5, 4x DDR5, 2x DP 1x HDMI, 1x PCIE x16, 1x PCIE x1, 2x M.2, 4x SATA 6GB/s
Detalii
SKU
B650M D3HP
Categorii
Brand
Ethernet LAN
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Memory channels
Dual-channel
Headphone outputs
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
Processor manufacturer
AMD
Component for
PC
Microphone in
Yes
DisplayPort version
1.4
DisplayPorts quantity
2
HDCP
Yes
Package weight
10.2 kg
Warranty period
3 year(s)
Products per shipping (inner) case
1 pc(s)
VGA (D-Sub) ports quantity
0
Wi-Fi
No
Country of origin
China
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
Line-in
Yes
PCI Express x16 (Gen 4.x) slots
1
PCI Express x1 (Gen 3.x) slots
1
USB 2.0 ports quantity
2
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS jumper
Yes
Product colour
Brown
2nd M.2 largest key size
22110
2nd M.2 highest PCI Express generation
4.0
Motherboard chipset
AMD B650
Power source type
ATX
Motherboard chipset family
AMD
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Audio output channels
7.1 channels
Audio Chip
Realtek ALC897
Parallel processing technology support
Not supported
DirectX version
12.0
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
TPM connector
Yes
RGB LED pin header
Yes
12V power connector
Yes
Number of EPS power connectors (8-pin)
1
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory
256 GB
Maximum internal memory per slot
64 GB
Supported memory clock speed (max)
7600 MHz
ECC сompatibility
Non-ECC
Batteries included
Yes
Screws included
Yes
DVI-D ports quantity
0
Processor socket
Socket AM5
Supported processor sockets
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Supported storage drive interfaces
M.2, SATA III
RAID support
Yes
RAID levels
0, 1, 10
Height
35 mm
Number of M.2 (M) slots
2
1st M.2 highest PCI Express generation
4.0
Motherboard form factor
micro ATX
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of chassis fan connectors
2
Number of CPU fan connectors
1
Package depth
265 mm
Package height
54 mm
Package width
265 mm
Number of storage drives supported
6
PS/2 ports quantity
1
Width
244 mm
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Ethernet interface type
2.5 Gigabit Ethernet
LAN controller
Realtek RTL8125
Number of RGB LED pin headers
3
1st M.2 largest key size
2580
PC health monitoring
Fan, Temperature, Voltage
Discrete graphics support
Yes
Depth
24.4 mm
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
Supported memory clock speeds
7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800 MHz
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
