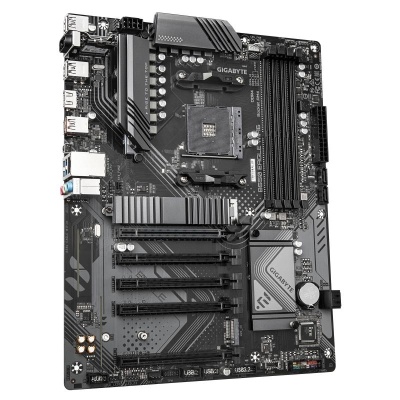

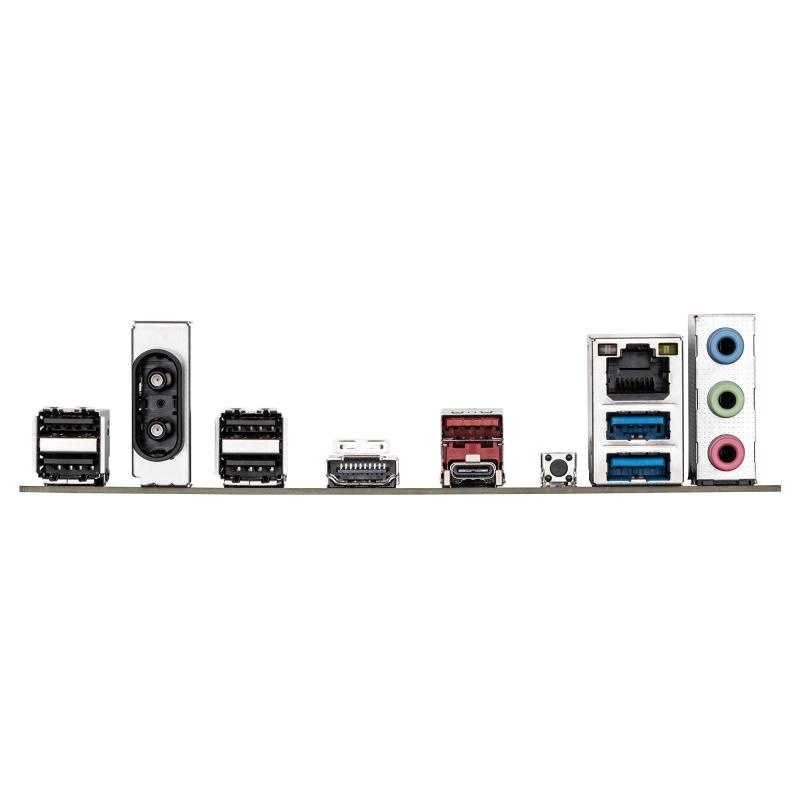

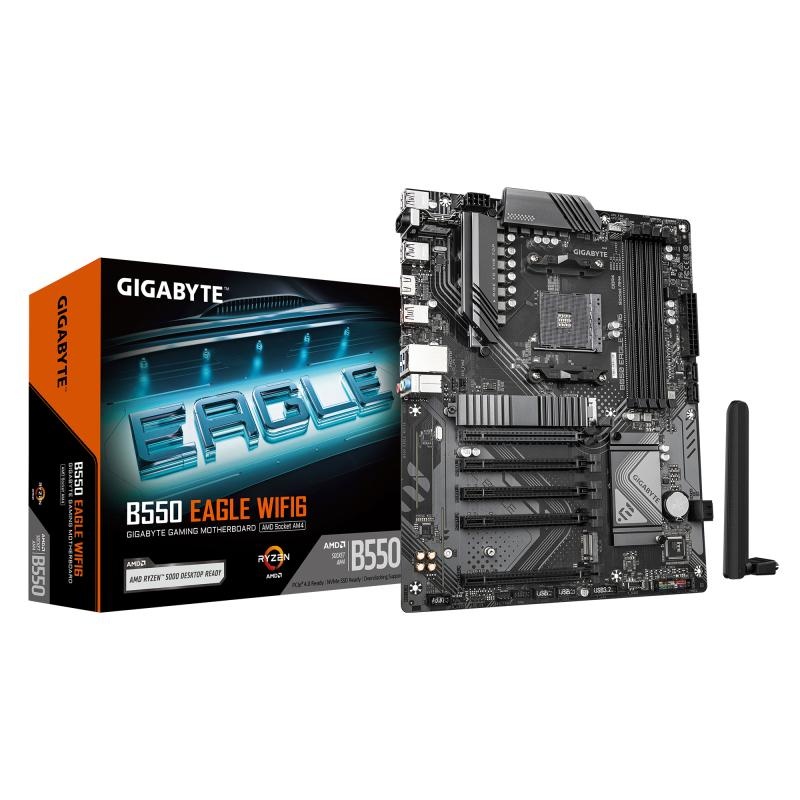

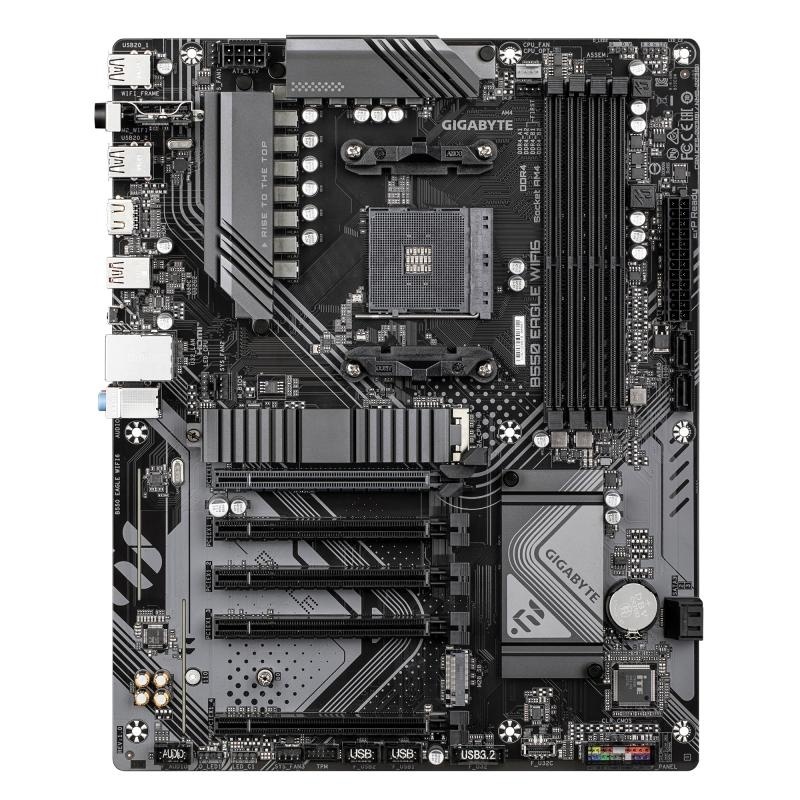

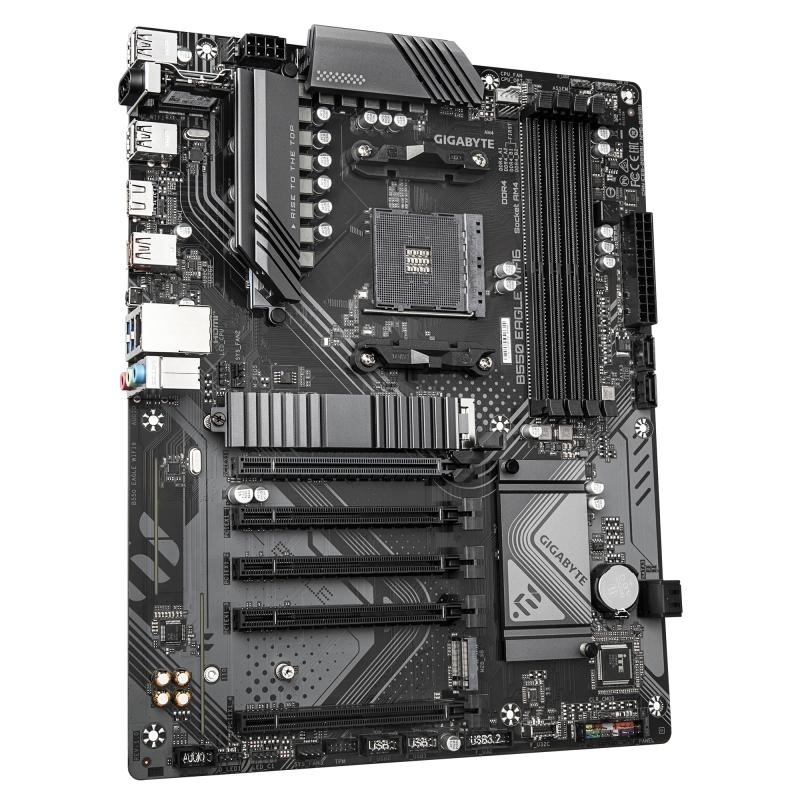

Placa de bază Gigabyte B550 EAGLE WIFI6 AM4
605,00 RON
(TVA inclus)
Livrare 1-3 zile lucratoare
Cost livrare - 25 lei
Cum te putem ajuta?
Detalii
SKU
B550 EAGLE WIFI6
Categorii
Brand
BLUETOOTH
Yes
Bluetooth version
5.3
Ethernet LAN
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI version
2.1
Memory channels
Dual-channel
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Headphone outputs
1
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
Maximum internal memory
128 GB
Wi-Fi
Yes
Processor manufacturer
AMD
Component for
PC
Microphone in
Yes
HDCP
Yes
Warranty period
3 year(s)
Products per shipping (inner) case
1 pc(s)
VGA (D-Sub) ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
Line-in
Yes
PCI Express x16 (Gen 4.x) slots
1
USB 2.0 ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
Battery weight
3 g
Lithium weight per battery
0.07 g
Number of battery cells
1
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
ACPI version
5.0
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
2nd M.2 largest key size
22110
Motherboard form factor
ATX
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Power source type
ATX
Motherboard chipset family
AMD
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Audio output channels
7.1 channels
Audio Chip
Realtek ALC897
Parallel processing technology support
Not supported
DirectX version
12.0
Maximum resolution
4096 x 2160 pixels
Front panel connector
Yes
Number of CPU fan connectors
2
TPM connector
Yes
RGB LED pin header
Yes
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Number of EPS power connectors (8-pin)
1
Number of chassis fan connectors
3
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
WLAN controller model
Realtek RTL8851BE
LAN controller
Realtek RTL8111H
Ethernet interface type
Gigabit Ethernet
Bundled software
Norton Internet Security (OEM version)
LAN bandwidth management software
Antenna included
Yes
Batteries included
Yes
Screws included
Yes
Package width
335 mm
Package depth
270 mm
Package height
80 mm
DVI-D ports quantity
0
WiFi-AP antenna jack
2
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
RAID support
Yes
RAID levels
0, 1, 10
Width
305 mm
Depth
244 mm
Height
35 mm
RAM-Slots
4
MB-Socket
AM5
USB3
4-8
BIOS memory size
128 Mbit
Product colour
Dark brown
Number of M.2 (M) slots
2
1st M.2 highest PCI Express generation
4.0
USB 2.0 connectors
2
ECC сompatibility
ECC & Non-ECC
Number of storage drives supported
6
MB-Format
micro-ATX
Supported storage drive interfaces
M.2, PCI Express 4.0, SATA III
PCI Express x1 (Gen 3.x) slots
4
2nd M.2 highest PCI Express generation
3.0
1st M.2 largest key size
22110
Motherboard chipset
AMD B550
Number of water pump connectors
1
Number of RGB LED pin headers
5
Supported memory types
DDR4-SDRAM
Maximum internal memory per slot
32 GB
Supported memory clock speed (max)
3200 MHz
Supported memory clock speeds
3200,2933,2667,2400,2133 MHz
Weight
1.25 kg
Package weight
1.48 kg
Processor socket
Socket AM4
Supported processor sockets
Socket AM4
Compatible processor series
AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series
PCI-Ex1
0
PCI-Ex16
3
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
Cooling type
Passive
