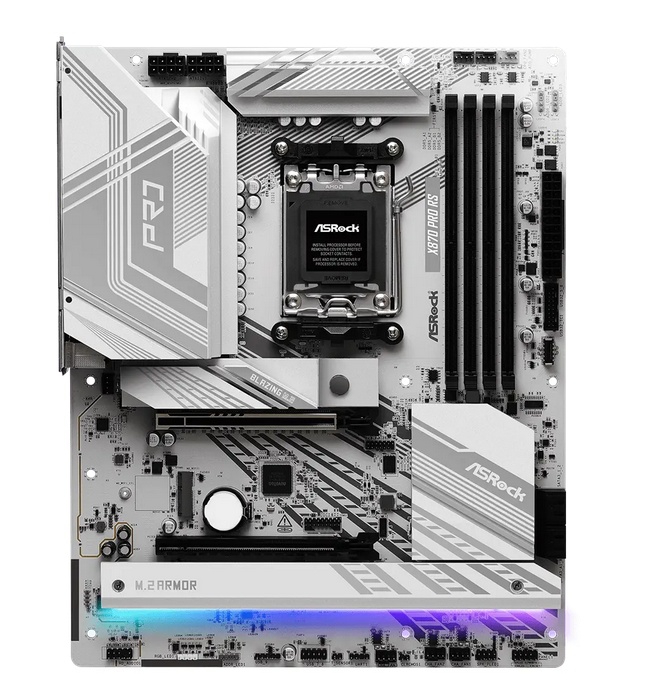

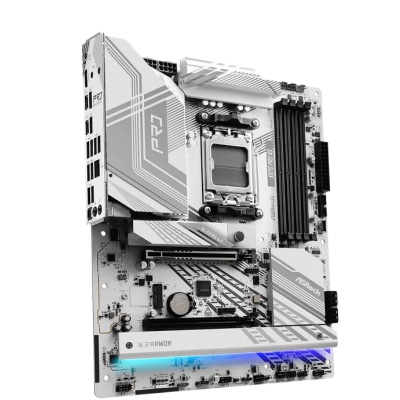

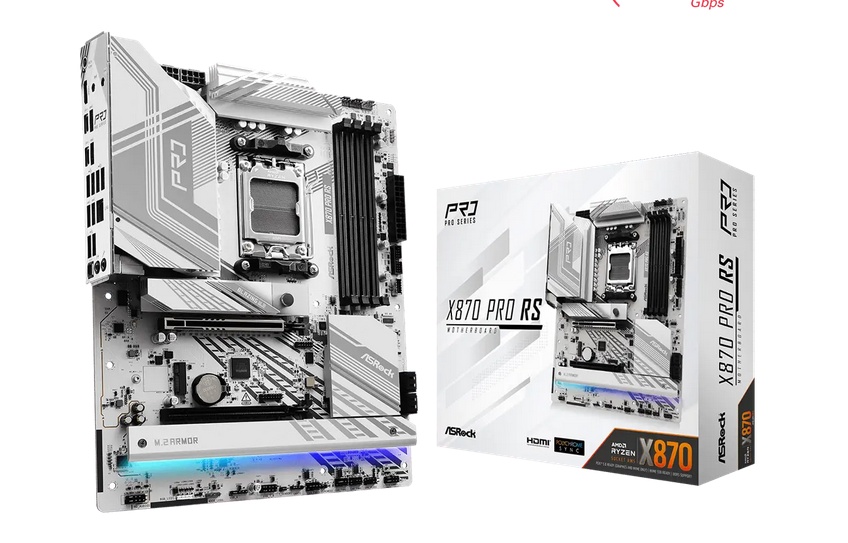

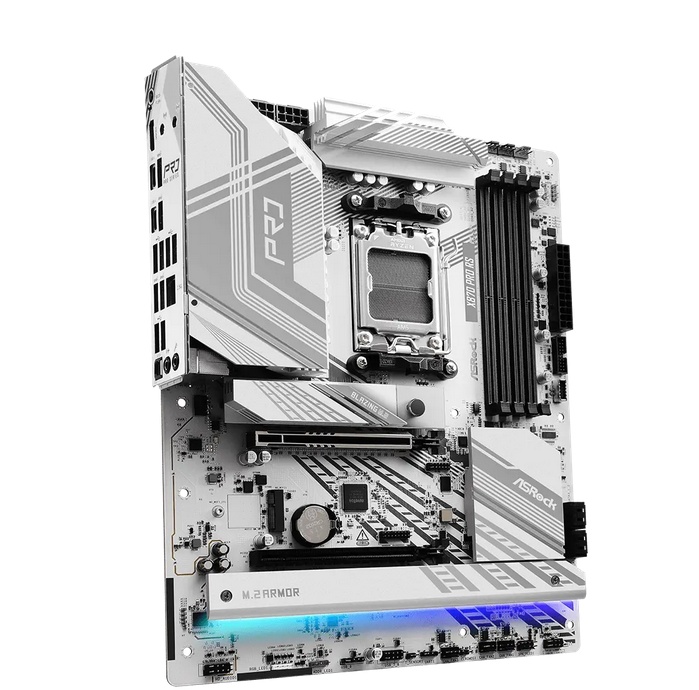

Placa de baza ASRock X870 PRO RS, Socket AM5, DDR5, ATX
1.121,00 RON
(TVA inclus)
Livrare 1-3 zile lucratoare
Cost livrare - 25 lei
Cum te putem ajuta?
Descriere
Placa de Baza ASROCK X870 PRO RS AM5, 4x DDR5, 1x HDMI 2x USB4, 1x PCIE 5.0 x16 1x PCIE 4.0 x16, 4x M.2, 4x SATA 6GB/s, ATX
Detalii
SKU
X870 PRO RS
Categorii
Brand
Product colour
White
Ethernet LAN
Yes
HDMI ports quantity
1
HDMI version
2.1
Memory channels
Dual-channel
Headphone outputs
1
Processor manufacturer
AMD
Component for
PC
Microphone in
Yes
HDCP
Yes
VGA (D-Sub) ports quantity
0
Wi-Fi
No
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
PCI Express x16 (Gen 5.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Number of M.2 (M) slots
3
1st M.2 highest PCI Express generation
5.0
2nd M.2 highest PCI Express generation
4.0
Motherboard form factor
ATX
Power source type
ATX
Motherboard chipset family
AMD
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Audio output channels
7.1 channels
Number of CPU fan connectors
2
RGB LED pin header
Yes
USB 3.2 Gen 2 (3.1 Gen 2) connectors
0
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
EPS power connector (8-pin)
Yes
Number of memory slots
4
Memory slots type
DIMM
Unbuffered memory
Yes
Supported memory types
DDR5-SDRAM
Maximum internal memory
256 GB
DVI-D ports quantity
0
Processor socket
Socket AM5
Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
USB 2.0 ports quantity
6
Supported storage drive types
HDD & SSD
Number of HDDs supported
4
Number of storage drives supported
7
RAID support
Yes
RAID levels
0, 1, 10
MB-Format
ATX
RAM-Slots
4
MB-Socket
AM5
USB3
4-8
1st M.2 largest key size
2280
2nd M.2 largest key size
2280
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
ECC сompatibility
ECC & Non-ECC
Number of water pump connectors
1
Number of RGB LED pin headers
5
PCI-Ex1
0
Ethernet interface type
2.5 Gigabit Ethernet
PCI-Ex16
2
Number of chassis fan connectors
4
Supported memory clock speed (max)
8000 MHz
3rd M.2 largest key size
2280
3rd M.2 highest PCI Express generation
3.0
Maximum resolution
7680 x 4320 pixels
Audio Chip
Realtek ALC1220
USB 3.2 Gen 2x2 connectors
1
Number of EPS power connectors (8-pin)
2
Number of M.2 (E) slots
1
S/PDIF out port
Yes
LAN controller
Dragon RTL8125BG
Digital audio optical out
1
Number of temperature sensor headers
1
Motherboard chipset
AMD X870
USB4 Gen 2x2 ports quantity
2
Supported storage drive interfaces
PCI Express 3.0, PCI Express 4.0, PCI Express 5.0, SATA III
Depth
24.4 mm
Width
30.5 mm
Certification
FCC, CE
ErP/EuP ready (ErP/EuP ready power supply is required)
Parallel processing technology support
Crossfire
PCI
0
Serial-or-Paralel
No/No
Onboard-CPU
No
