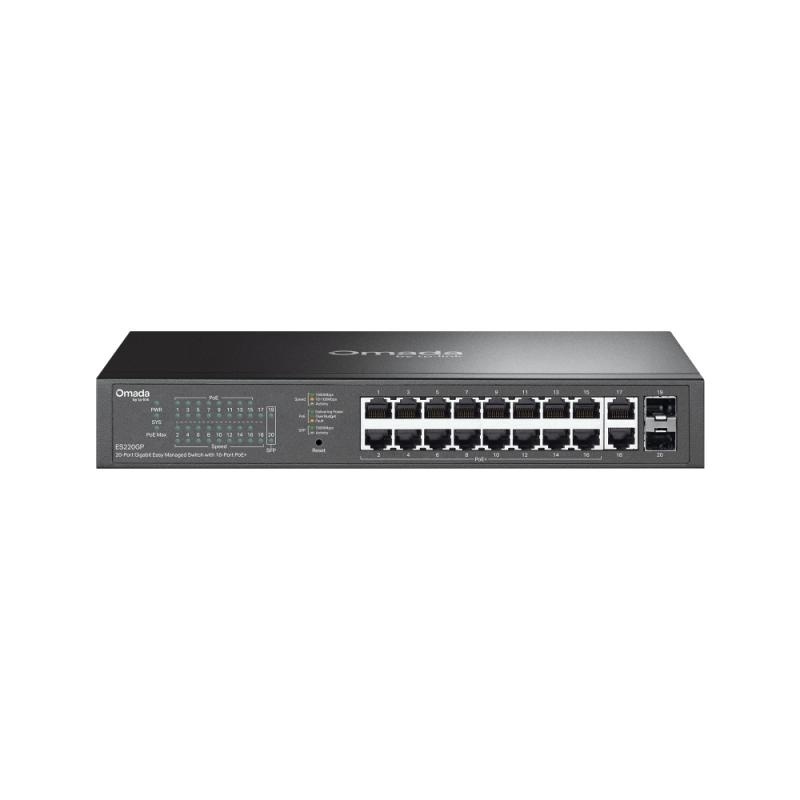

Omada 20-Port Switch ES220GP, • 16× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3at PoE+ and 802.3af PoE)• 2× 10/100/1000 Mbps RJ45 Port• 2 × Gigabit SFP Slot, 100–240 VAC, 50/60 Hz, capacitate switch 40 Gbps
1.086,00 RON
(TVA inclus)
Livrare 1-3 zile lucratoare /
Cost livrare - 25 lei
Cum te putem ajuta?
Descriere
Omada 20-Port Switch ES220GP, • 16× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3at PoE+ and 802.3af PoE)• 2× 10/100/1000 Mbps RJ45 Port• 2 × Gigabit SFP Slot, 100–240 VAC, 50/60 Hz, capacitate switch 40 Gbps
Detalii
SKU
ES220GP
Categorii
Brand
Product colour
Black
Ethernet LAN data rates
10,100,1000 Mbit/s
Operating relative humidity (H-H)
10 - 90%
Cables included
AC
Storage relative humidity (H-H)
5 - 90%
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Input current
2.5 A
Height
44 mm
User guide
Yes
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Storage temperature (T-T)
-40 - 70 C
Web-based management
Yes
Multicast support
Yes
Rack mounting
Yes
Rackable
No
Housing material
Metal
Jumbo frames support
Yes
MAC address table
8000 entries
VLAN support
Yes
Port mirroring
Yes
Power over Ethernet (PoE)
Yes
Link aggregation
Yes
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Power over Ethernet (PoE) power per port
30 W
IGMP snooping
Yes
LAN-Port-Type
FastEthernet
Redundant-PSU
No
Store-and-forward
Yes
Stackable
No
Flow control support
Yes
Switch type
Managed
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
10G support
No
Broadcast storm control
Yes
Fanless
Yes
DHCP features
DHCP client
Quality of Service (QoS) support
Yes
Cloud-managed
Yes
Operating temperature (T-T)
-5 - 40 C
Power source
AC
Installed SFP+ modules quantity
0
LAN-Ports
8
SFP module slots quantity
2
Packet buffer memory
4 MB
Number of VLANs
32
Virtual LAN features
MTU VLAN, Port-based VLAN, Tagged VLAN
Power over Ethernet (PoE) type supported
PoE+
Queue scheduling algorithms
Weighted Round Robin (WRR)
Number of queues
8
Power connector
AC-in jack
Switching capacity
40 Gbit/s
Forwarding rate
29.76 Mpps
Basic switching RJ-45 Ethernet ports quantity
18
Power over Ethernet plus (PoE+) ports quantity
16
Depth
180 mm
Networking standards
IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Total Power over Ethernet (PoE) budget
150 W
Gigabit Ethernet (copper) ports quantity
18
Width
294 mm
Mean time between failures (MTBF)
320156 h
Noise level
20.1 dB
Power consumption (max)
182.43 W
