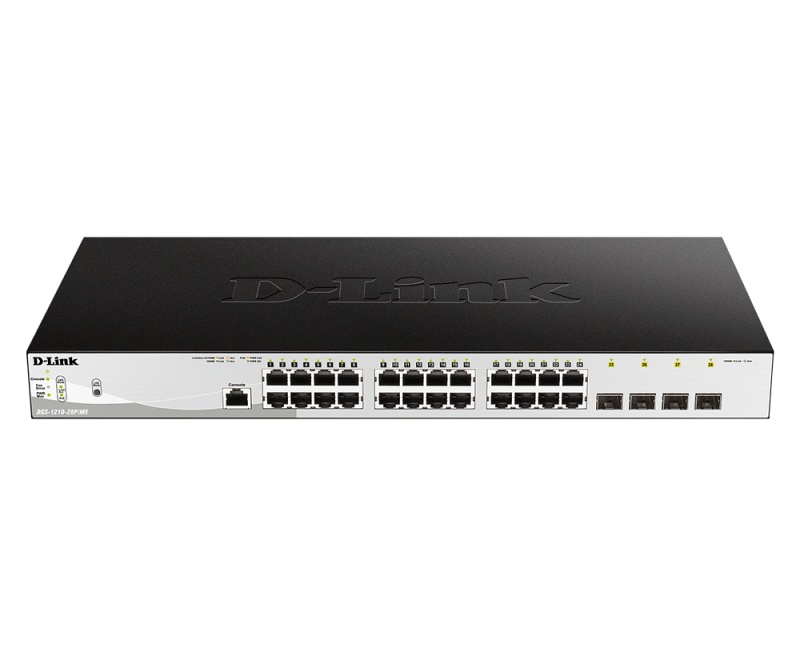

D-Link Switch DGS-1210-28P/ME, 24 porturi Gigabit PoE Base-T, 4 porturi SFP1000Mbps, Capacity 56Gbps, 19" Rackmount, WebSmart, 2*fan
1.293,00 RON
(TVA inclus)
Livrare 1-3 zile lucratoare
Cost livrare - 25 lei
Cum te putem ajuta?
Descriere
D-Link Switch DGS-1210-28P/ME, 24 porturi Gigabit PoE Base-T, 4 porturi SFP1000Mbps, Capacity 56Gbps, 19" Rackmount, WebSmart, 2*fan
Detalii
SKU
DGS-1210-28P/ME
Categorii
Brand
Sustainability compliance
Yes
Storage relative humidity (H-H)
0 - 95%
Password protection
Yes
AC input frequency
50/60 Hz
Height
44 mm
Depth
250 mm
Number of fans
3 fan(s)
Package width
365 mm
Pallet gross width
120 cm
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Package weight
4.93 kg
Web-based management
Yes
Multicast support
Yes
Ethernet LAN data rates
1000 Mbit/s
Rack mounting
Yes
Width
440 mm
Storage temperature (T-T)
-20 - 70 C
Package height
92 mm
Operating relative humidity (H-H)
0 - 95%
Rackable
Yes
Weight
3.7 kg
System event log
Yes
VLAN support
Yes
Active link detection
Yes
Spanning tree protocol
Yes
Port mirroring
Yes
Power over Ethernet (PoE)
Yes
Link aggregation
Yes
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
IGMP snooping
Yes
Loop protection
Yes
Redundant-PSU
No
Store-and-forward
Yes
Stackable
No
Flow control support
Yes
Switch type
Managed
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Broadcast storm control
Yes
Static route
Yes
Quality of Service (QoS) support
Yes
Configuring Location Settings (CLI)
Yes
ARP inspection
Yes
Basic switching RJ-45 Ethernet ports quantity
24
SFP module slots quantity
4
Power source
AC
Access Control List (ACL)
Yes
SSH/SSL support
Yes
LAN-Ports
24
LAN-Port-Type
Gigabit
Harmonized System (HS) code
85176990
Layer
Unmanaged
MAC address table
16000 entries
Full duplex
Yes
Power over Ethernet (PoE) ports quantity
24
Queue scheduling algorithms
Strict Priority Queue (SPQ), Weighted Round Robin (WRR)
Flash memory
32 MB
Number of multicast groups filtered
256
MAC address filtering
Yes
Switching capacity
56 Gbit/s
Fanless
No
Gigabit Ethernet (copper) ports quantity
24
Compliance certificates
BSMI, CB, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), VCCI
Forwarding rate
41.7 Mpps
Number of static routes
96
Number of IP interfaces
4
Number of queues
8
Packet buffer memory
1.5 MB
LED indicators
Activity, Fan fail, Link, Power, Speed
Mean time between failures (MTBF)
331669 h
Traffic classification
Yes
Multicast features
Controllable multicast
Multicast Listener Discovery (MLD) snooping
MLD v1, MLD v2
Half duplex
Yes
Number of VLANs
4094
Cable types supported
Cat5, Cat5e
IPv4 routes
64
IPv6 routes
32
Virtual LAN features
MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN
Heat dissipation
857.98 BTU/h
Fiber ethernet cabling technology
1000BASE-X
Noise level
52.9 dB
Installed SFP+ modules quantity
4
Console port
RJ-45
Installed SFP modules quantity
4
Power consumption (max)
251.5 W
Power protection features
Surge protection
Total Power over Ethernet (PoE) budget
193 W
GARP VLAN Registration Protocol (GVRP)
Yes
BPDU filtering/protection
Yes
IP-MAC-Port binding
Yes
Access Control List (ACL) rules
256
Access Control List (ACL) ingress
256
Security algorithms
EAP, SNMP, SNMPv2, SNMPv3
Authentication type
AAA, RADIUS, TACACS+
Sustainability certificates
UL ECOLOGO
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Operating temperature (T-T)
-5 - 50 C
Maximum data transfer rate
1 Gbit/s
Pallet gross length
110 cm
DHCP features
DHCP server, DHCP client
SFP/SFP+ slots quantity
4
Switch layer
L2
Certification
FCC Class A
CE Class A
ICES-003
VCCI Class A
C-Tick
BSMI
Package depth
521 mm
Power consumption (typical)
238.4 W
Input voltage
100-240 V
Fiber optic connector
SFP
Master (outer) cases per pallet (air)
24 pc(s)
Shipping (inner) case net weight
14.8 kg
Products per shipping (inner) case
3 pc(s)
Shipping (inner) case height
39.3 cm
Shipping (inner) case length
53.9 cm
Products per pallet (air)
72 pc(s)
Pallet height (air)
131.4 cm
Products per pallet (sea)
120 pc(s)
Pallet height (sea)
2.1 m
Shipping (inner) case width
29.5 cm
Master (outer) cases per pallet (sea)
40 pc(s)
Pallet gross weight (air)
401.7 kg
Pallet gross weight (sea)
652.9 kg
Shipping (inner) case gross weight
15.7 kg
Form factor
1U
Memory type
DDR3-SDRAM
